E50SA6P - Cutler Hammer E50 Series 1 Pole 10A 600V Heavy Duty Limit Switch NEMA 1/3/3S/4/4X/6/6P/13

E50SA6P

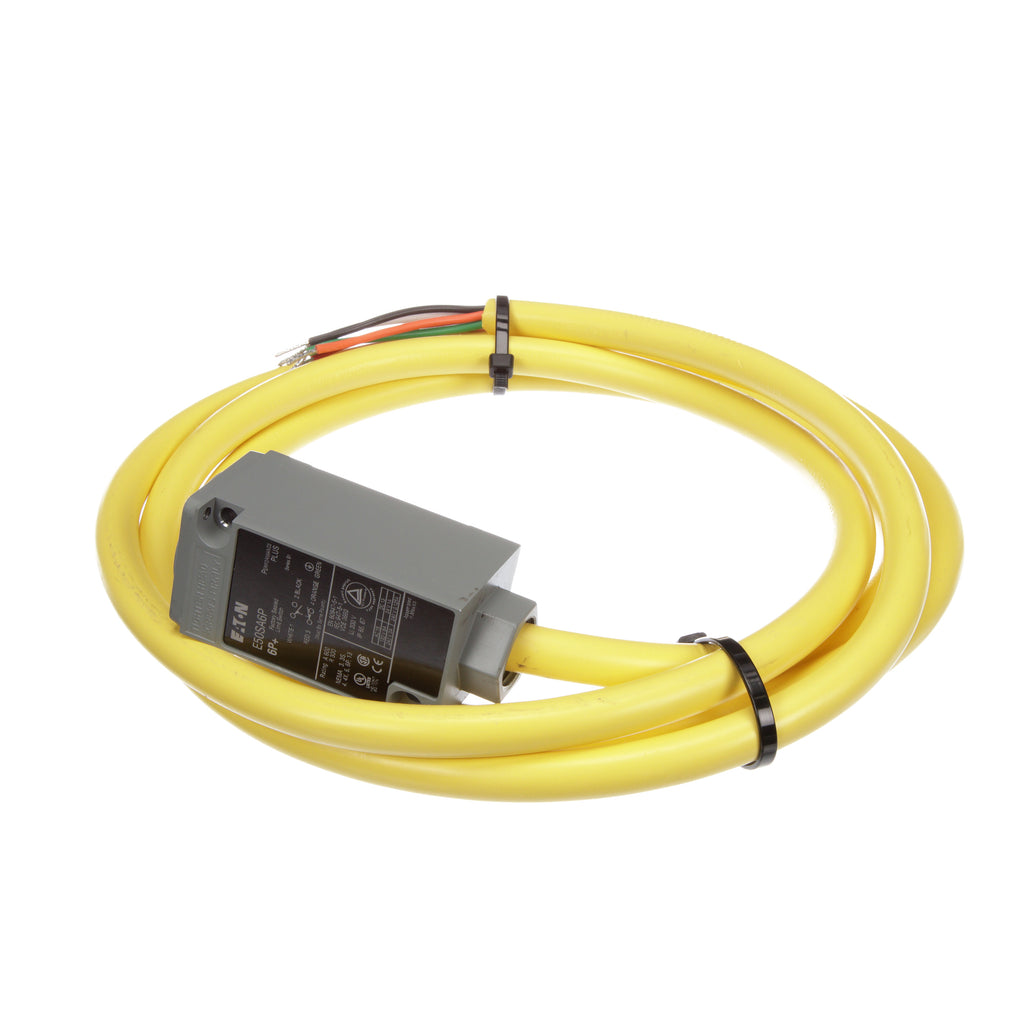

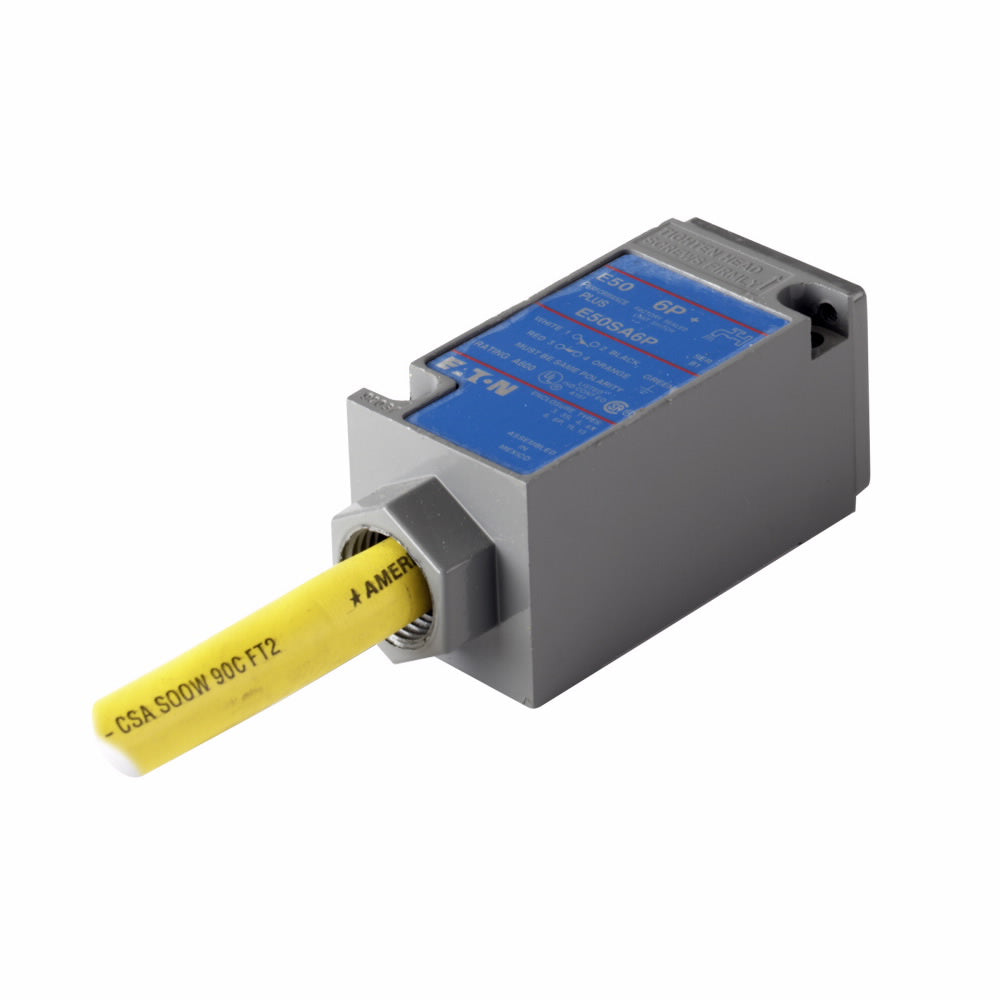

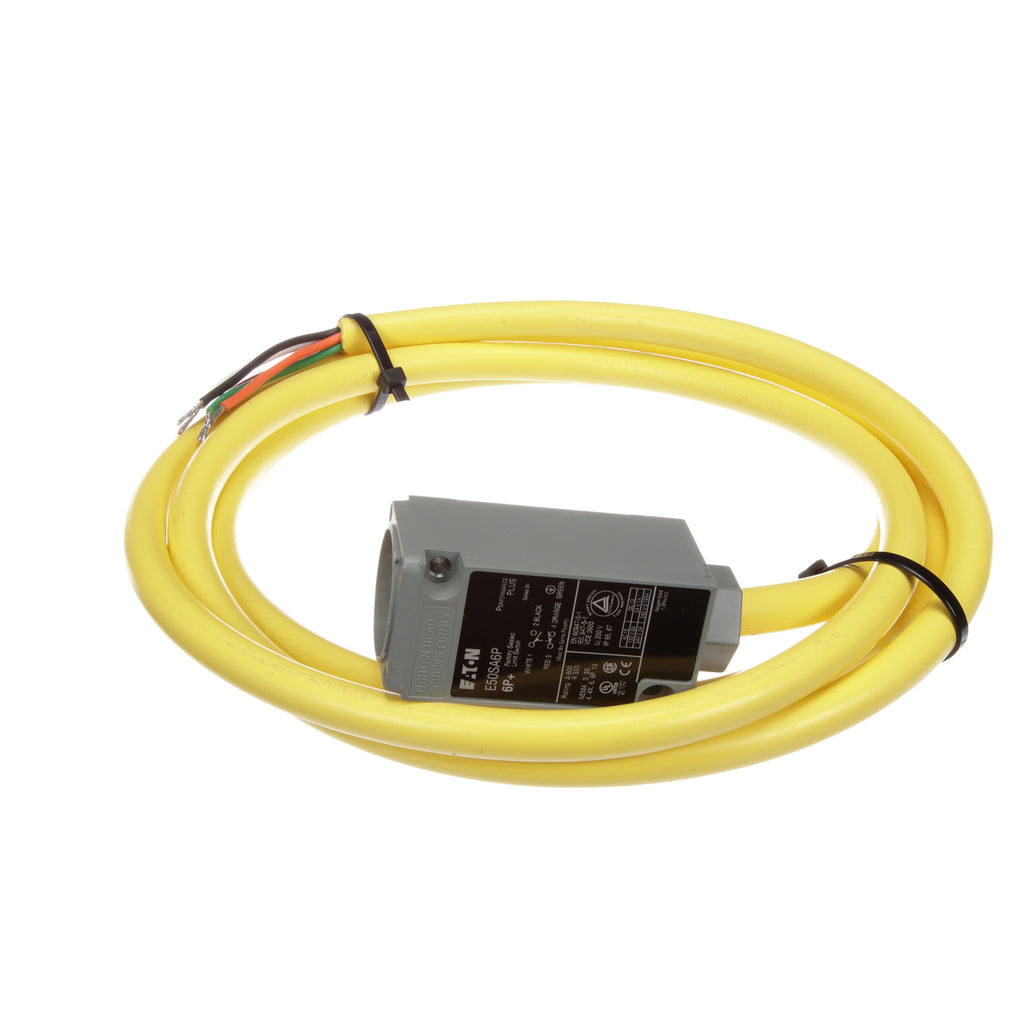

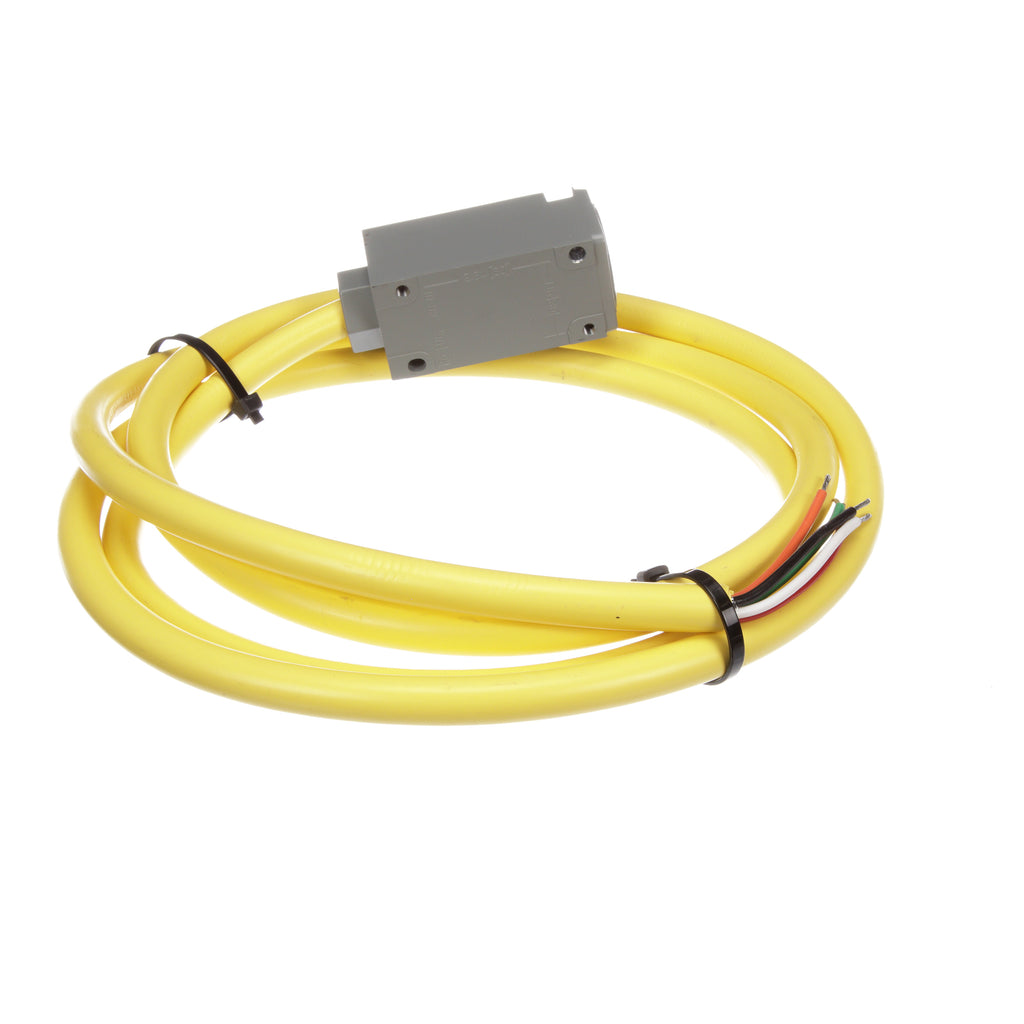

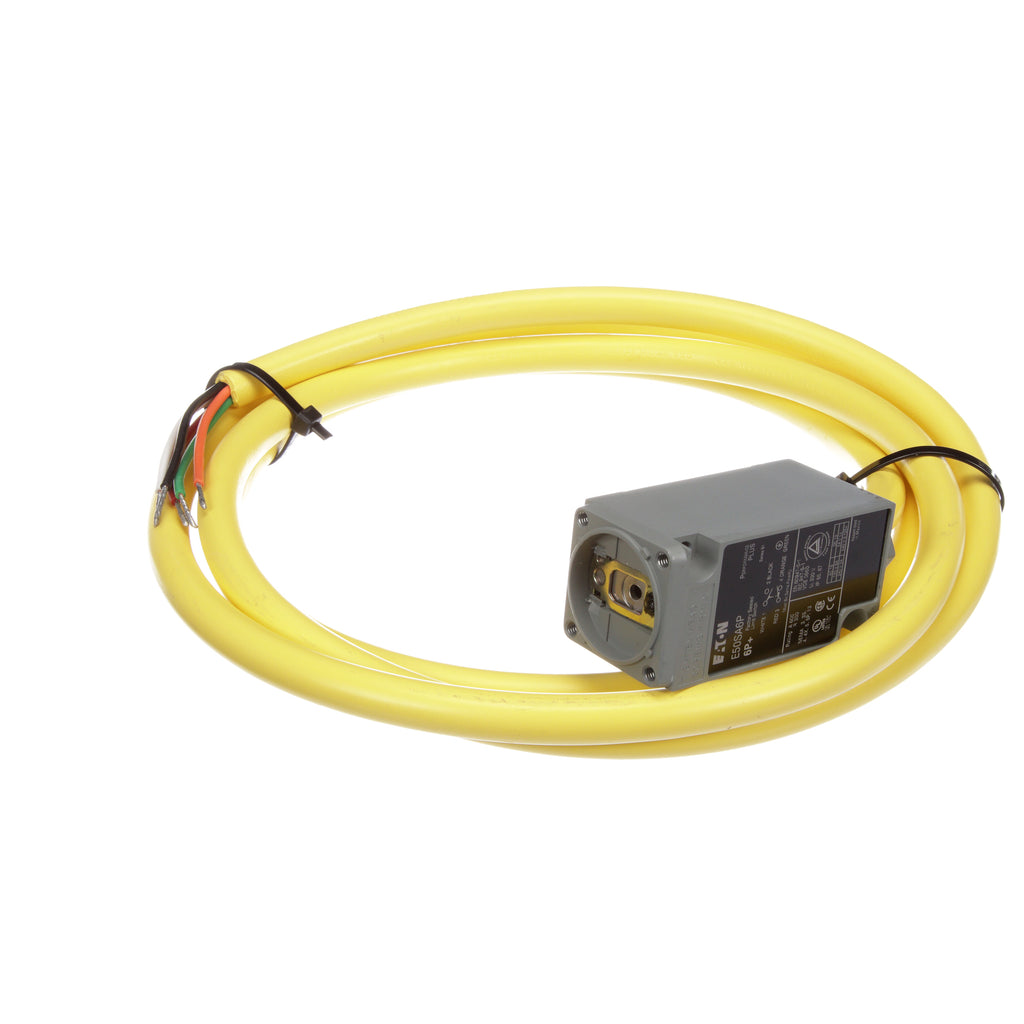

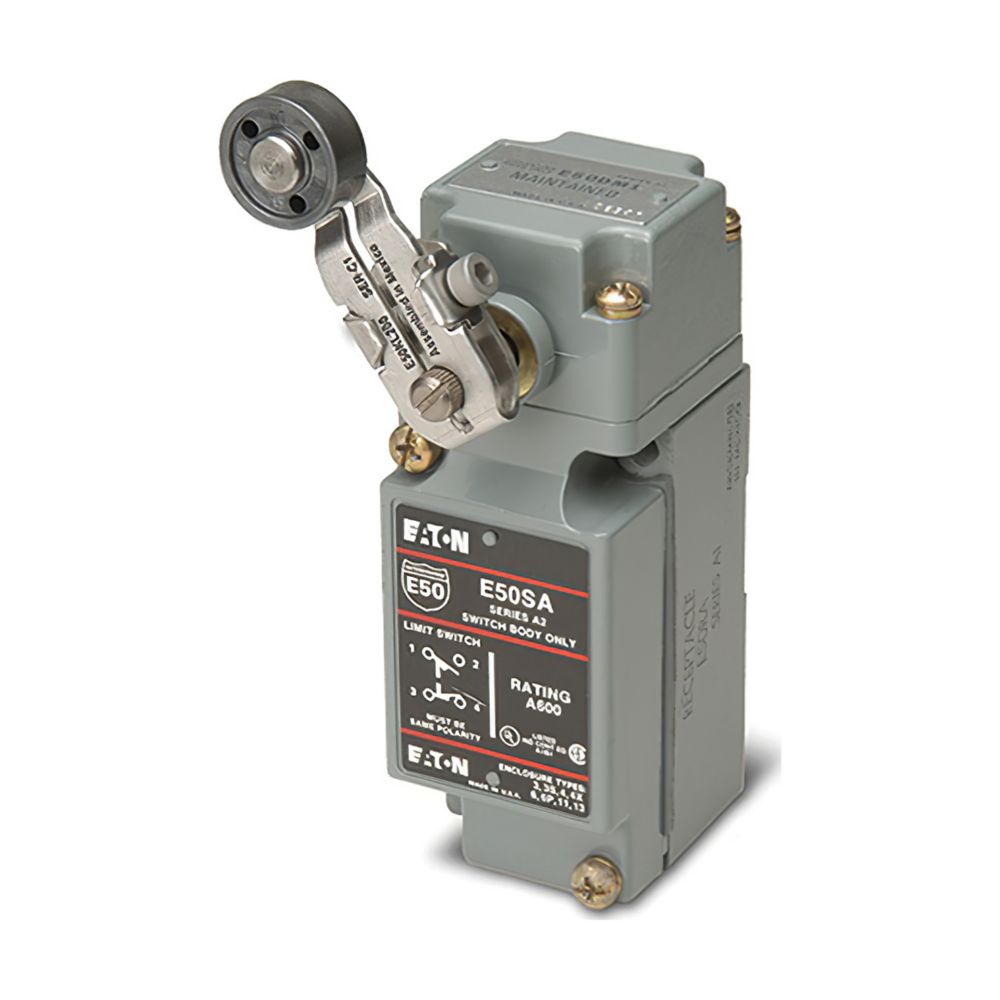

E50SA6P is a Cutler Hammer E50 Series heavy duty limit switch designed for demanding industrial motor control applications. This unit features a spring return side rotary lever actuator and is factory sealed for durability in harsh environments. It is rated for 10A at 240V AC and 1A at 250V DC, with a 600V maximum voltage rating. The switch is plug-in style for easy installation and replacement, and it includes a 96-foot SOOW-A cable for flexible mounting options. This E50SA6P limit switch is built with a die-cast zinc enclosure and offers a wide operating temperature range from -40°F to 250°F. It is certified for use in NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, and IP67/IP69K environments, making it suitable for both indoor and outdoor industrial settings. The switch features a 1NO-1NC contact configuration and is UL, CSA, and CE certified for safety and reliability.

• Part Number: E50SA6P
• Manufacturer: Cutler Hammer
• Series: E50 Heavy Duty Factory Sealed 6P+
• Poles: 1
• Contact Configuration: 1NO-1NC
• Maximum AC Current: 10A @ 240V AC
• Maximum DC Current: 1A @ 250V DC
• Maximum Voltage: 600V
• Mounting Type: Plug-In
• Enclosure Material: Die Cast Zinc
• Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, IP69K
• Certifications: UL, CSA, CE, RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E50SA6P
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Limit Switch
• Family : E50 Series
• Type : E50

Product Data

• UPC : 782113137049
• GTIN : 00782113137049
• Country of Origin : Mexico
• Dimensions : 3.63 in x 2.46 in x 1.54 in (Length/Depth x Height x Width)
• Weight : 2.1 lb
• Certification : CSA, RoHS, UL Listed
