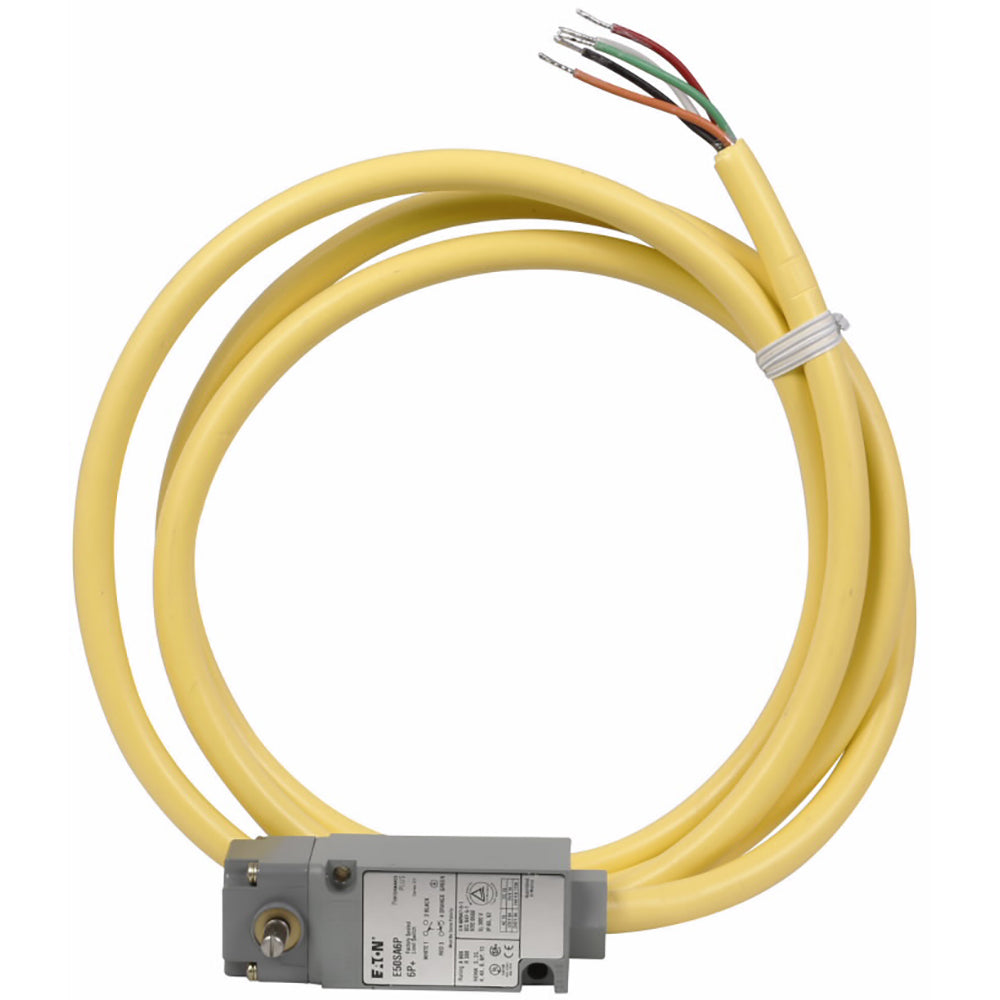

E50AR16PC - Cutler Hammer Heavy Duty Plug-In Limit Switch 10A 240V 6 Poles NEMA 1/3/4/6 Rated

E50AR16PC

E50AR16PC is a Cutler Hammer heavy duty plug-in limit switch designed for industrial applications requiring reliable position sensing.This limit switch features a unitized side rotary actuator with spring return, rated for 10A at 240Vac and 1A at 250Vdc. It includes 6 poles with 1 normally open and 1 normally closed contact configuration. The housing is die-cast zinc with factory sealing, suitable for NEMA 1, 3, 3S, 4, 4X, 6, and 6P environments. Operating temperature range is -10°C to 121°C (14°F to 250°F). It is UL listed and CSA certified for safety compliance.

Key Specifications
• Amperage: 10A at 240Vac, 1A at 250Vdc
• Voltage Rating: 600V max
• Poles: 6 poles (1NO-1NC contact)
• Mounting Type: Plug-in, heavy duty
• Interrupt Rating: Mechanical 10 million operations, electrical rated
• Series/Frame: E50 NEMA heavy duty
• Trip Unit: Side rotary actuator with spring return
• Housing Material: Die cast zinc
• Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P
• Operating Temperature: -10°C to 121°C (14°F to 250°F)
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E50AR16PC
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer

Product Data

• UPC : 78211372642
• GTIN : 00782113726427
• Dimensions : 1.54 in x 4.67 in x 3.03 in (Length/Depth x Height x Width)
• Weight : 2.1
