Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Limit Switch
Description
E49S71UP7

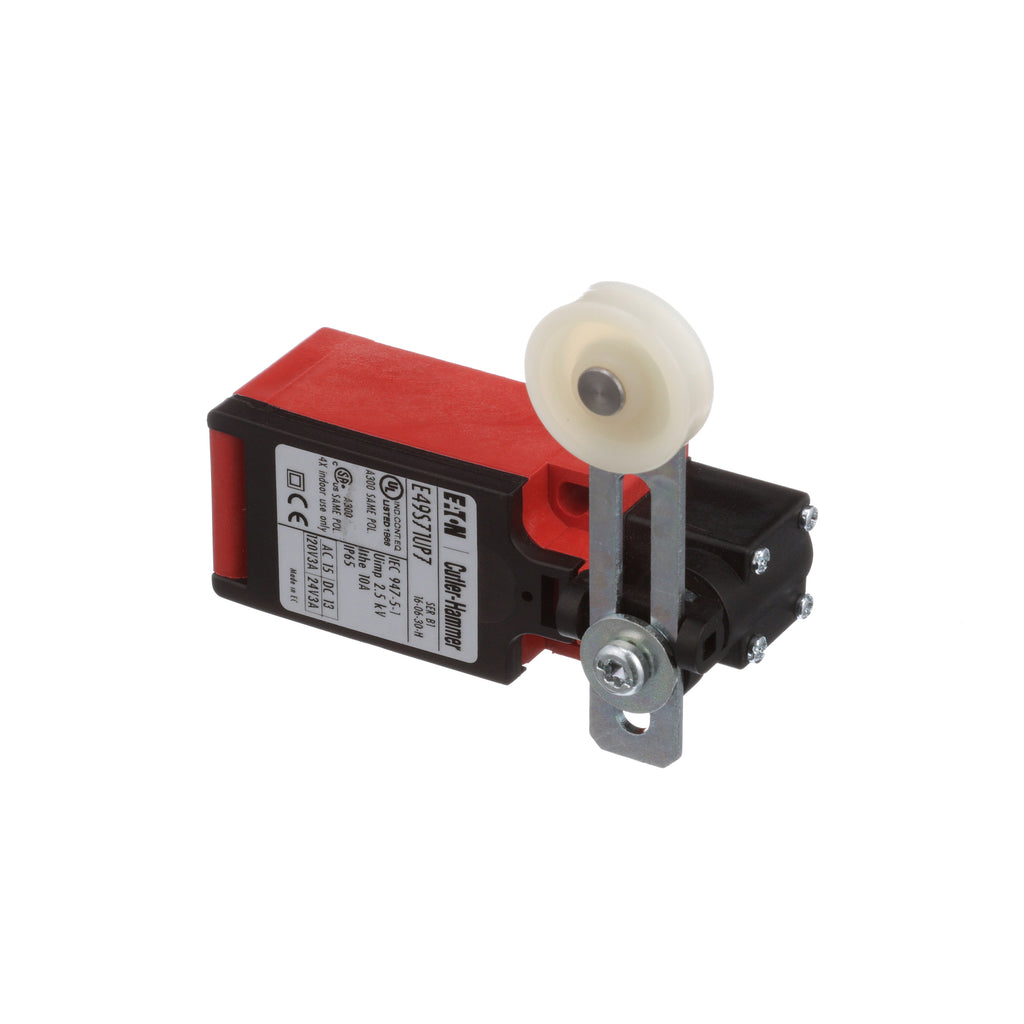

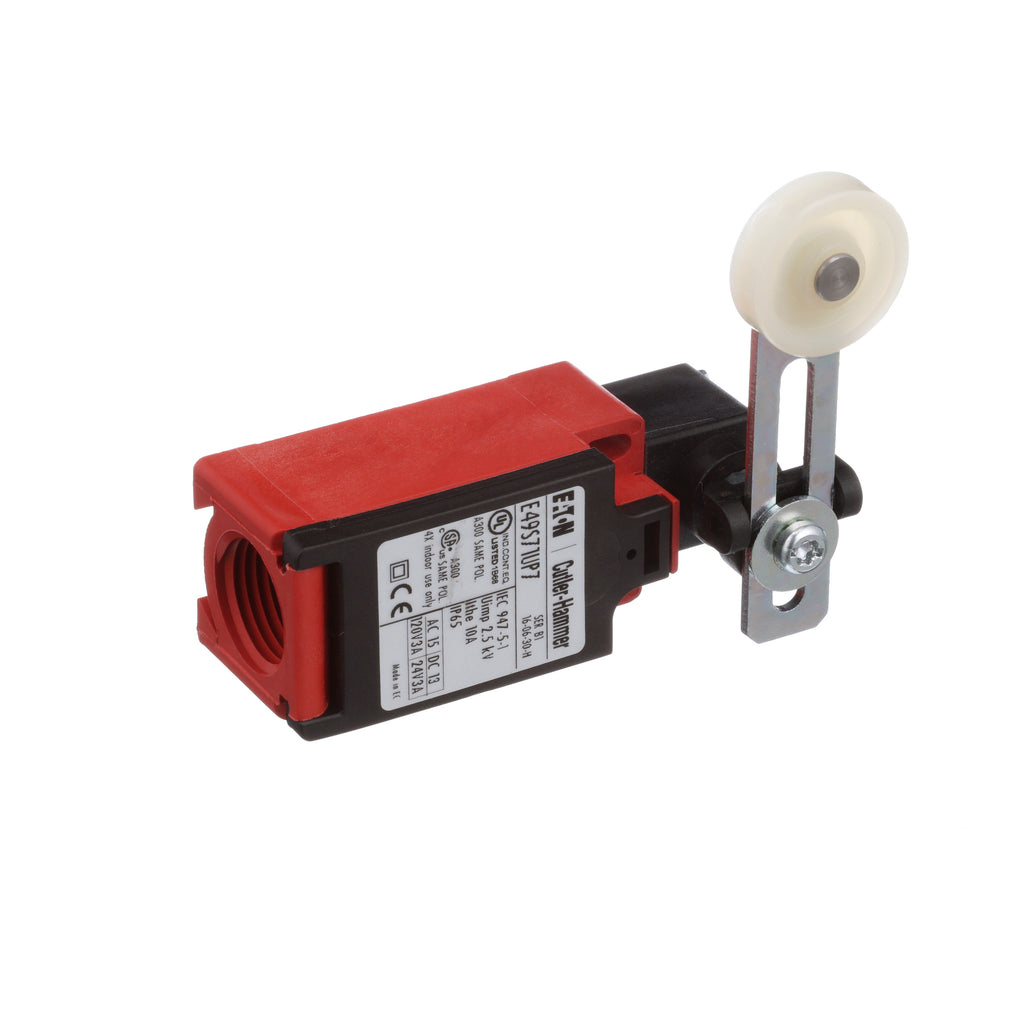

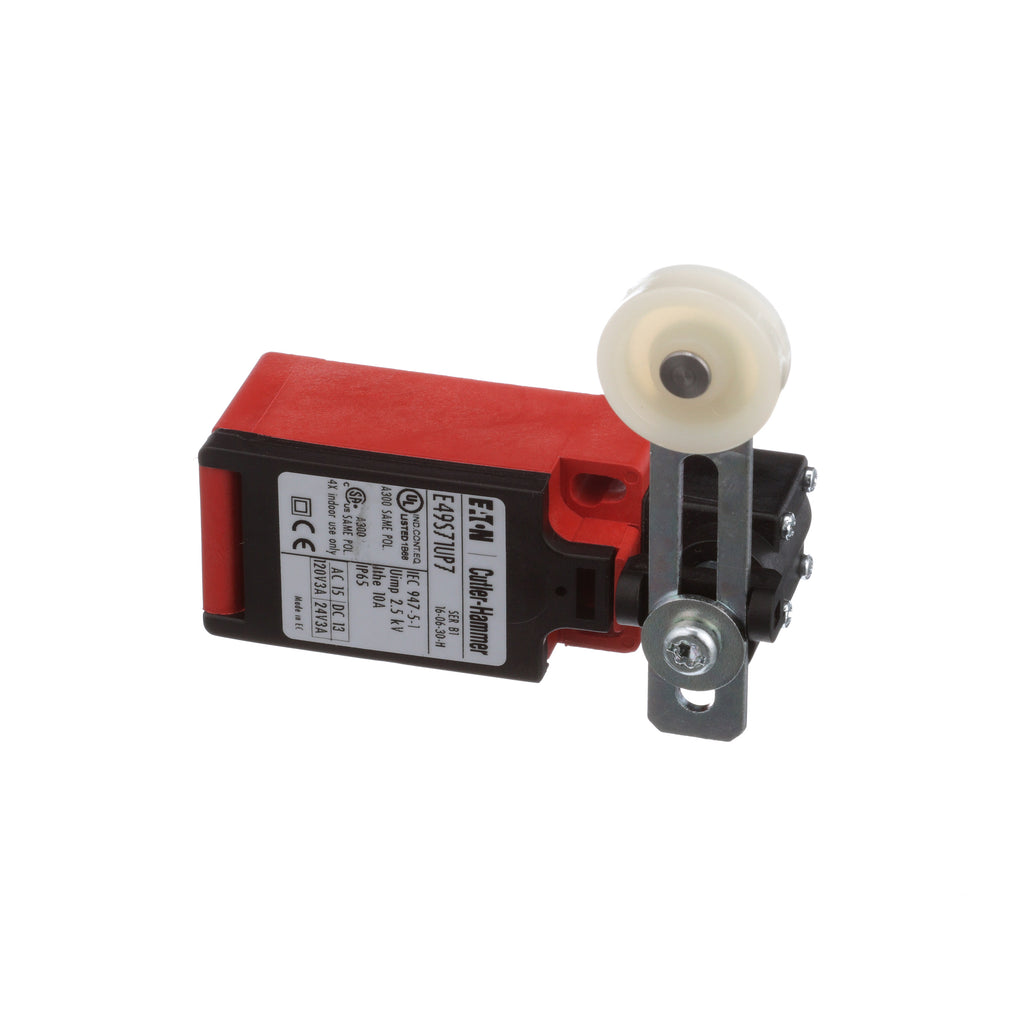

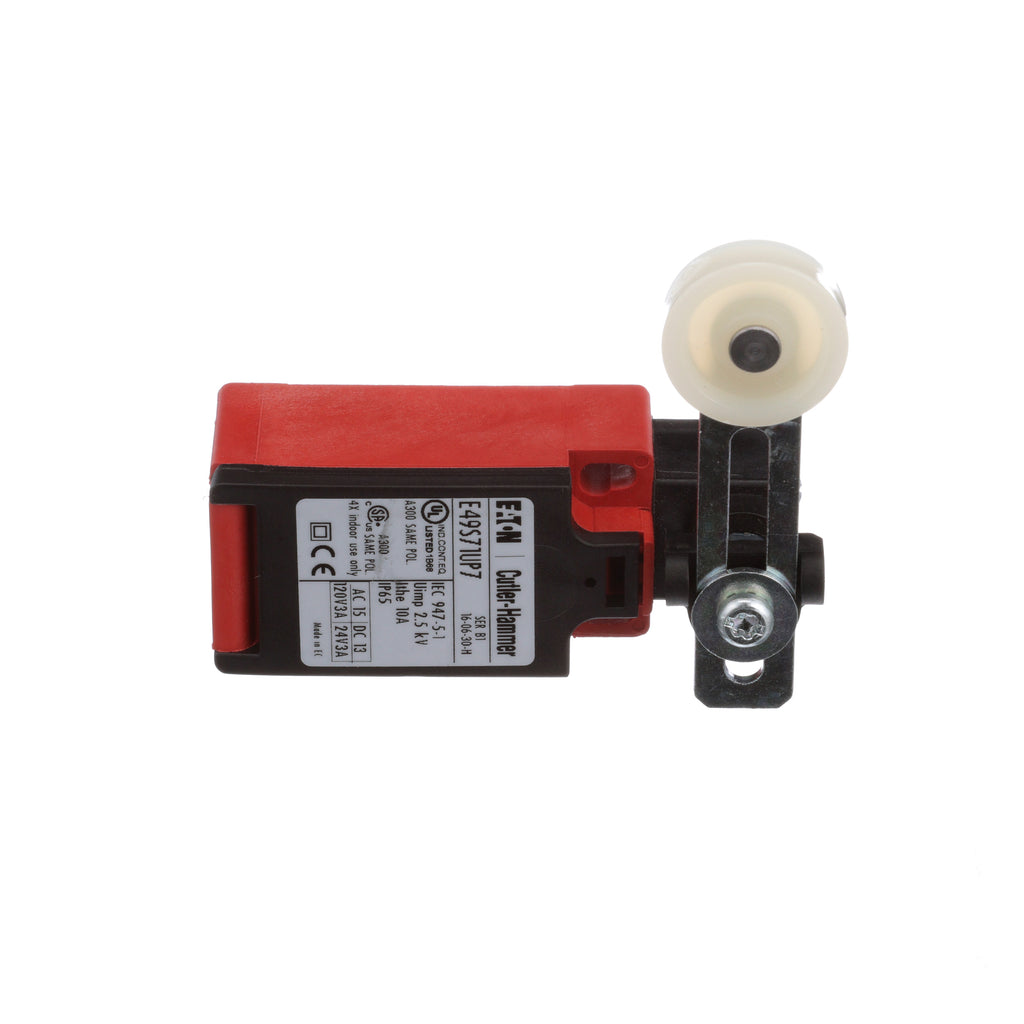

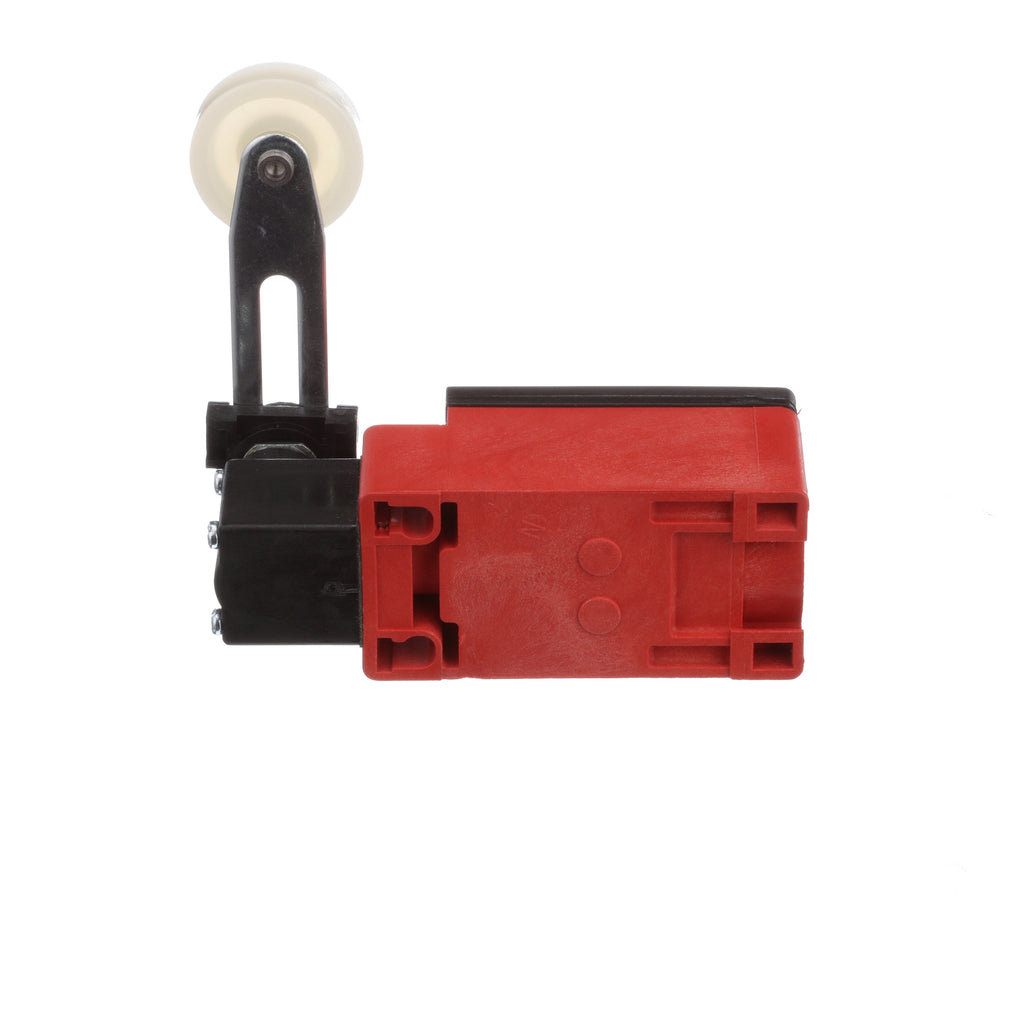

E49S71UP7 is a Cutler Hammer E49 miniature DIN limit switch featuring 1 normally open and 1 normally closed contact with an adjustable roller lever actuator.
This compact metal limit switch offers a contact rating of 10A at 240 Vac and 1.5A at 30 Vdc, suitable for general purpose sensing applications. It has a plastic (glass-reinforced polyamide) enclosure rated for NEMA 4, 4X, 6P, 13, and IP65 environments. The switch mounts on a miniature DIN rail and uses screw terminals for wiring. It is UL Listed and CSA Certified for safety and reliability.
- Key Specifications
- Contact Configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
- Current Rating: 10A at 240 Vac, 1.5A at 30 Vdc
- Actuator: Adjustable Side Rotary Roller Lever
- Mounting: Miniature DIN Rail
- Connection: Screw Terminals
- Enclosure Material: Glass-Reinforced Polyamide (Plastic)
- Environmental Rating: NEMA 4, 4X, 6P, 13, IP65
- Operating Temperature Range: -22°F to 176°F
- Certifications: UL Listed, CSA Certified
- Dimensions: 5.61 in (L) x 2.19 in (H) x 1.22 in (W)
- Part Number: E49S71UP7
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Switch
- Item Subcategory : Limit Switch
- Type : E49 Series
- Voltage : 600
- Aux Contacts : 1 NC + 1 NO
- UPC : 78211374219
- GTIN : 00782113742199
- Dimensions : 5.61 in x 2.19 in x 1.22 in (Length/Depth x Height x Width)
- Weight : 0.01
