Product Info
- Manufacturer:Eaton
- Sub-Category:Limit Switches
Description

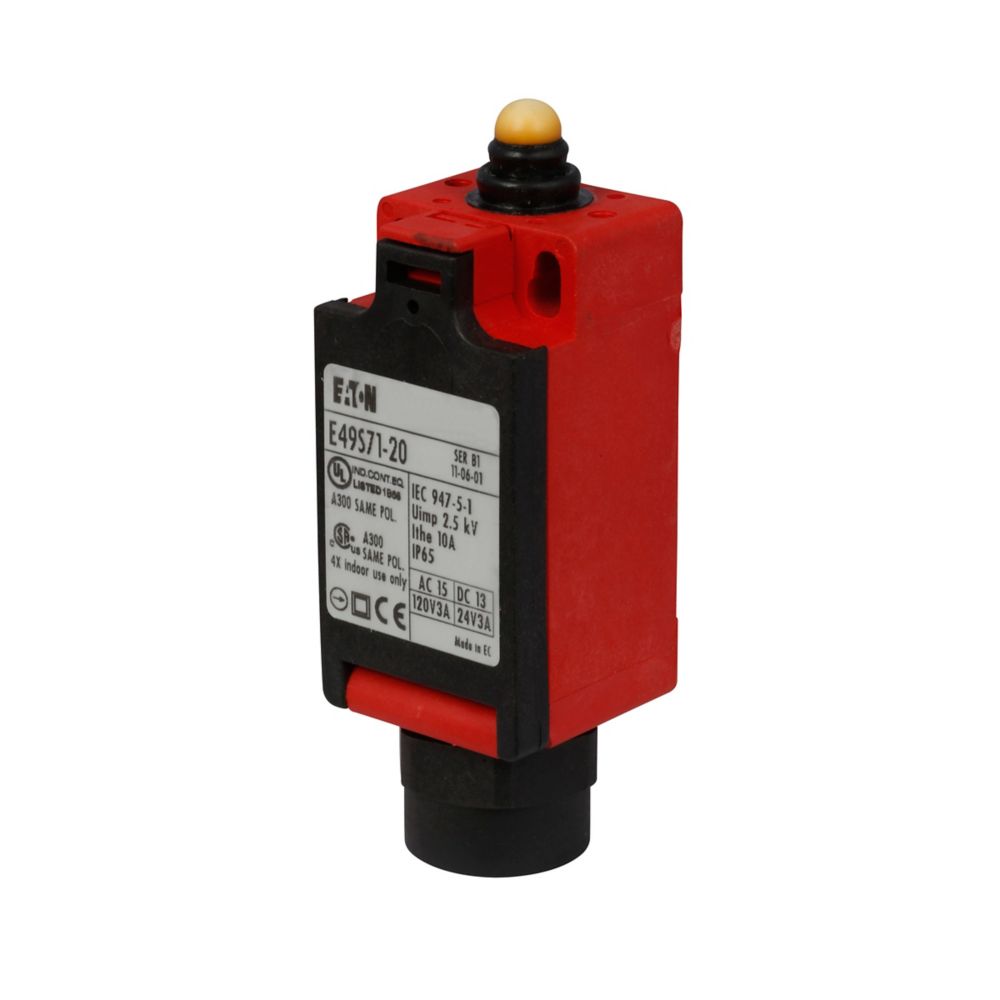

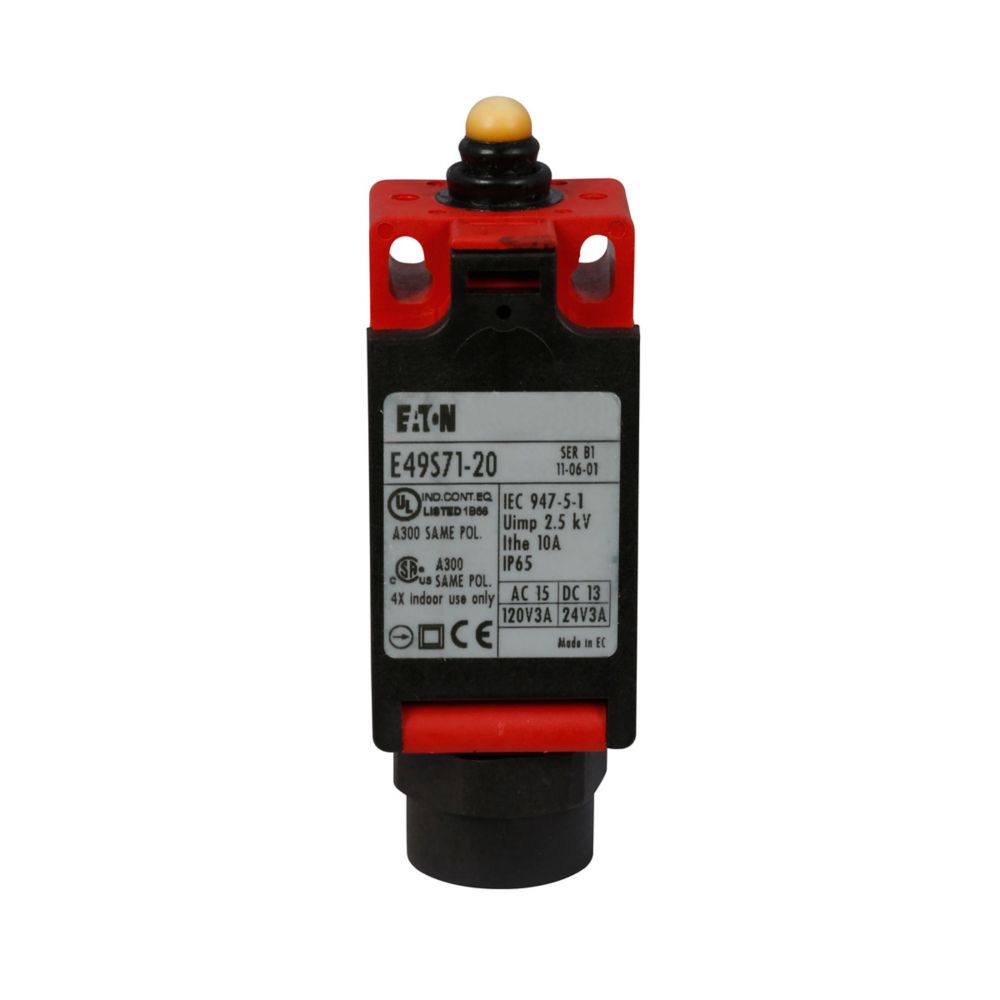

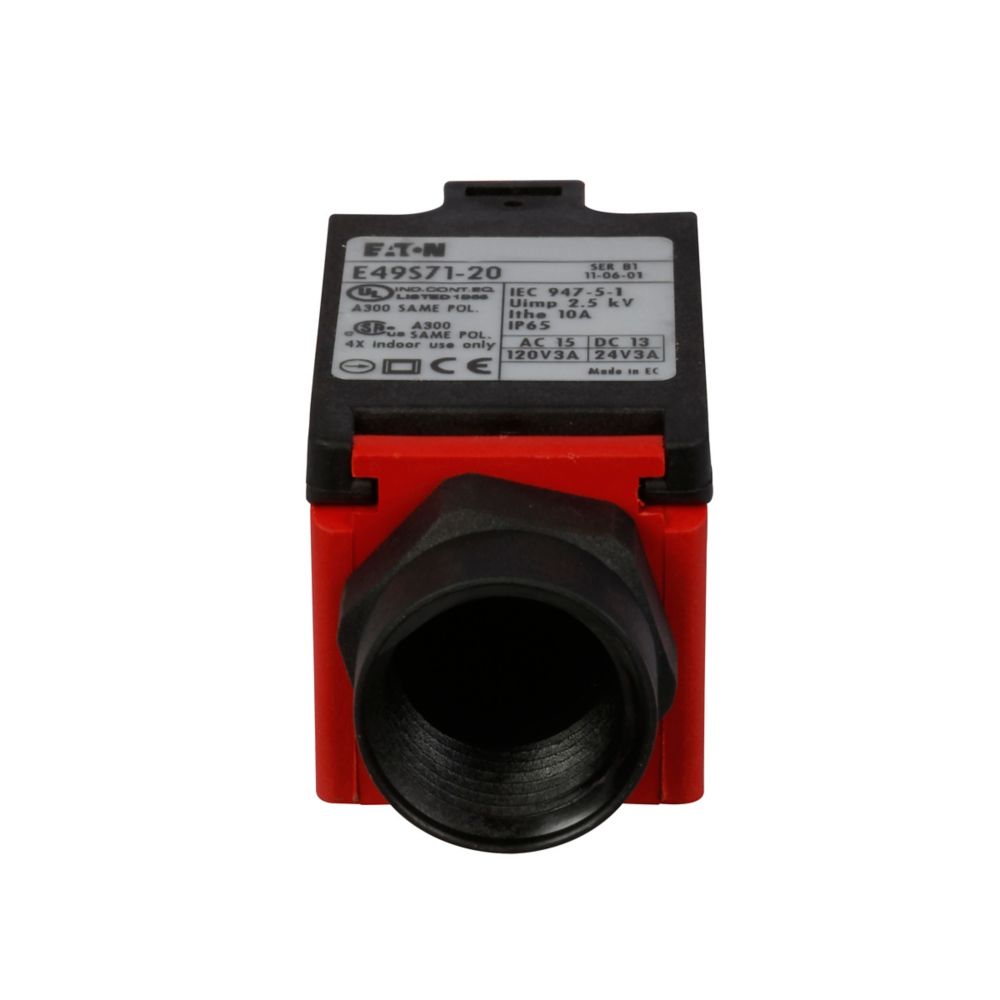

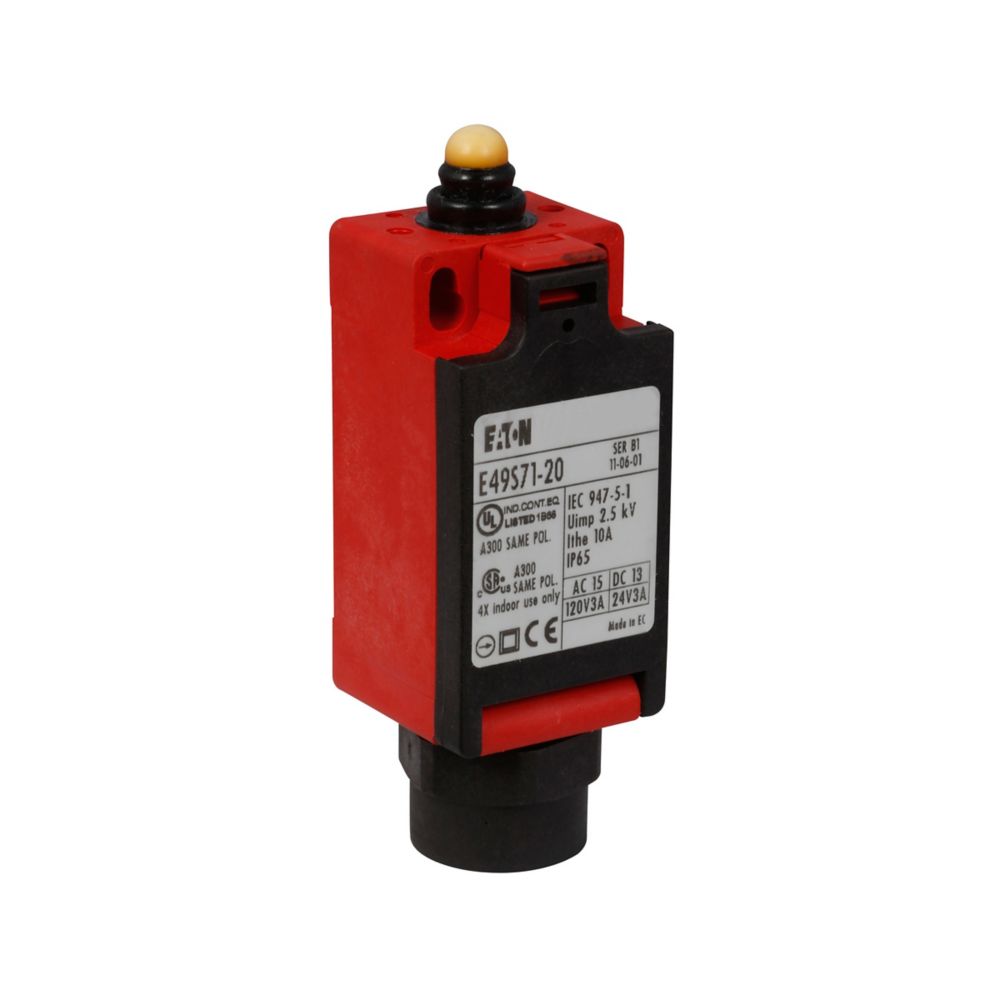

E49S71-20
E49S71-20 is a standard duty limit switch designed for reliable position sensing in industrial applications. This Eaton model features a rugged glass reinforced polyamide (PA-6) enclosure, self-extinguishing properties, and a side rotary lever arm for versatile mounting options. The switch provides snap action with 1 normally open (NO) and 1 normally closed (NC) contact, rated for up to 10A at 600VAC and 1.5A at 24VDC. It is suitable for environments requiring NEMA 4, 4X, 6P, and 13 ratings, and features screw terminals for secure wiring connections. This limit switch is ideal for use in machinery, automation, and control systems where durability and precise actuation are required. The compact design and robust construction ensure long service life even in demanding conditions.
- Part Number: E49S71-20
- Manufacturer: Eaton
- Series: E49 IEC
- Enclosure Material: Glass Reinforced Polyamide (PA-6)
- Enclosure Properties: Self-Extinguishing
- Contact Configuration: 1NO, 1NC
- Max AC Rating: 10A at 600VAC
- Max DC Rating: 1.5A at 24VDC
- Termination: Screw Terminal
- Mounting: Side Rotary Lever Arm
- NEMA Ratings: 4, 4X, 6P, 13
- IP Rating: IP65
- Operating Temperature: -22°F to 176°F
- Weight: 0.1188 lbs
Specifications
- Part Number: E49S71-20
- Manufacturer : Eaton
- Brand : Eaton
- Category : Wiring Devices
- Item Subcategory : Limit Switches
Product Data
- UPC : 078211355280
- GTIN : 00782113552804
- Dimensions : 1.22 in x 2.91 in x 1.2 in (Length/Depth x Height x Width)
- Weight : 0.1188
