Product Info
- Manufacturer:Cutler Hammer
Description
E47BMS21

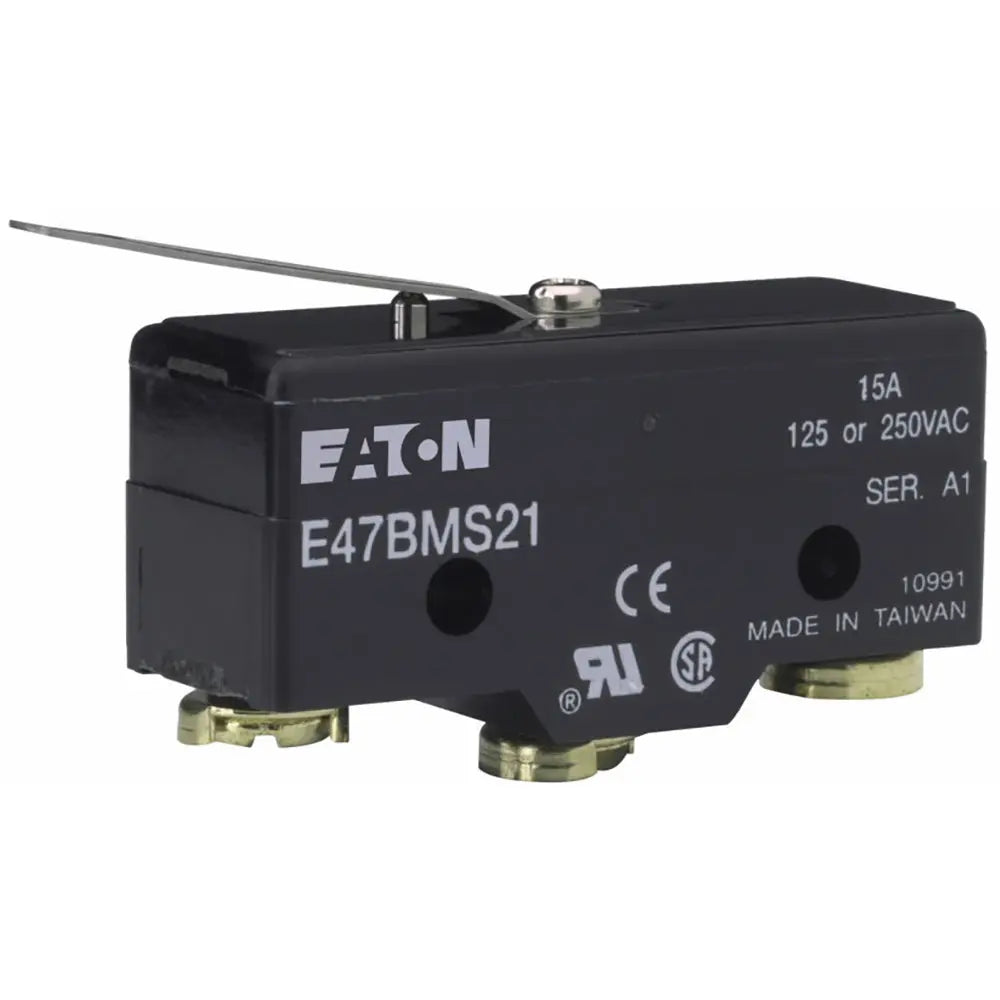

E47BMS21 is a Cutler Hammer E47 Precision Limit Switch featuring a basic, reversed lever design with a mineral-filled phenolic enclosure.This switch supports a maximum current of 15A for both AC (125VAC) and DC (14VDC) applications, with a SPDT (Single Pole Double Throw) contact configuration. It includes screw terminal connections and is designed for reliable and precise switching in industrial environments. The enclosure is rated NEMA 1, and the switch is UL Listed, CSA Certified, and CE Marked.
- Amperage: 15A max AC/DC
- Voltage Rating: 125VAC / 14VDC
- Contact Configuration: SPDT
- Switch Type: Basic, Reversed Lever
- Enclosure Material: Mineral Filled Phenolic
- Connection Type: Screw Terminals
- Environmental Rating: NEMA 1
- Certifications: UL Listed, CSA Certified, CE Marked
- Operating Temperature Range: -13°F to 176°F
- Mounting: Bottom facing M4 x 0.7 screws
- Frame/Series: E47
Specifications
- Part Number: E47BMS21
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
Product Data
- UPC : 782113770840
- GTIN : 00782113770840
- Dimensions : 0.69 in x 2.41 in x 1.19 in (Length/Depth x Height x Width)
- Weight : 0.0813
