Product Info
- Manufacturer:Eaton
- Sub-Category:Automation Switch
Description
E47BMS01

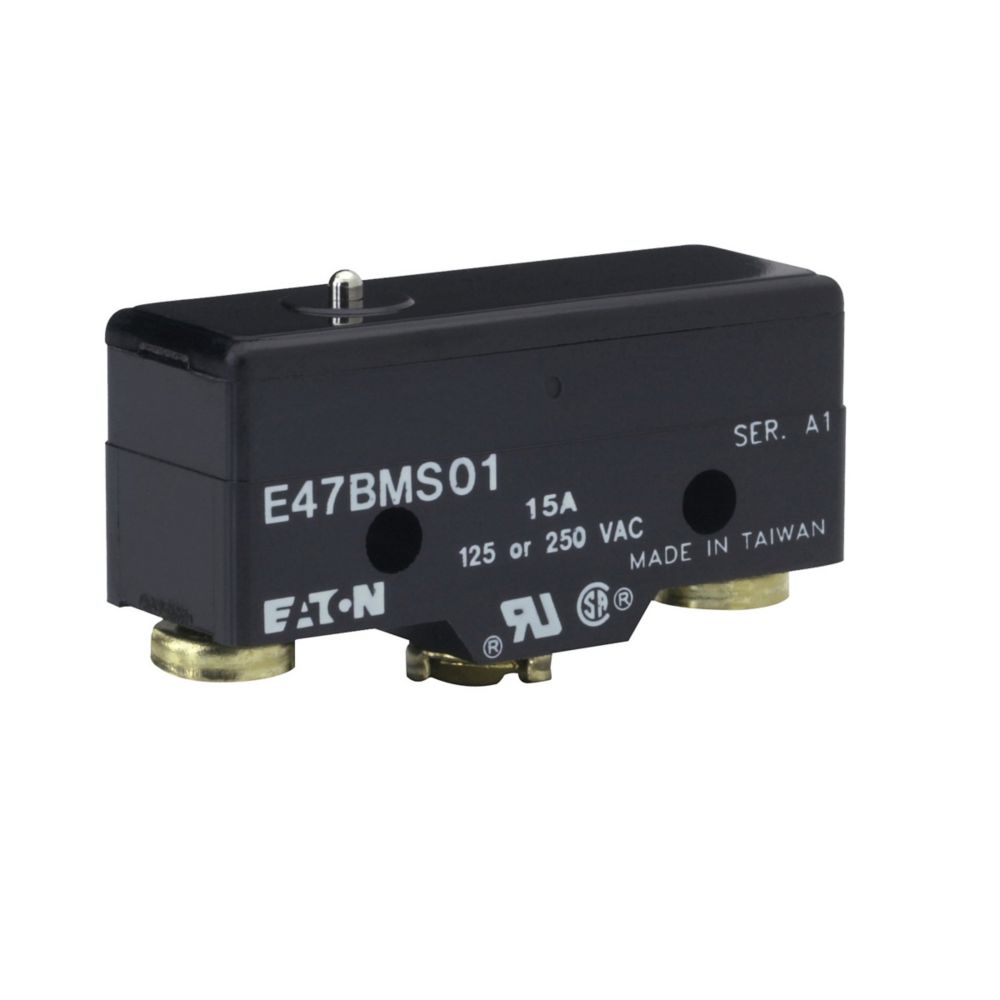

E47BMS01 is a precision limit switch from Eaton featuring a pin plunger actuator and screw terminal connections for reliable automation control.This Eaton E47 series limit switch supports a contact rating of 15A at 250 VAC and 6A at 30 VDC, with a 1-SPDT (Form C) contact configuration. It is constructed with a mineral filled phenolic enclosure, rated for NEMA 1 environments, and certified UL Listed and CSA Certified. The switch operates within a temperature range of -13°F to 176°F and supports operating speeds from 0.01 mm/s to 1 m/s.
- Key Specifications
- Amperage: 15A AC, 6A DC
- Voltage: 250 VAC, 30 VDC
- Poles: 1 (SPDT Form C)
- Mounting Type: Screw Terminal
- Interrupt Rating: 15A at 250 VAC
- Series/Frame: E47
- Actuator Type: Pin Plunger
- Enclosure Material: Mineral Filled Phenolic
- Environmental Rating: NEMA 1
- Operating Temperature: -13°F to 176°F
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: E47BMS01
- Manufacturer : Eaton
- Brand : Eaton
- Category : Automation
- Item Subcategory : Automation Switch
- Section : Limit Switch
Product Data
- UPC : 078211377080
- GTIN : 00782113770802
- Dimensions : 1.94 in x 0.96 in x 0.69 in (Length/Depth x Height x Width)
- Weight : 0.05
