Product Info
- Manufacturer:Cutler Hammer
Description
E34FPB297L

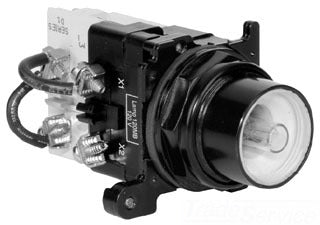

E34FPB297L is a corrosion-resistant, watertight and oiltight indicating light pushbutton from Cutler Hammer's E34 Series designed for industrial applications.This 30.5 mm pushbutton features a PresTest actuator with LED light, zinc die cast construction with a two-layer 100% solid thermosetting cathodic epoxy coating for enhanced corrosion resistance. It is suitable for panel mounting and rated for full voltage operation. The device is designed to meet NEMA 3/3R/4/4X/12/13 enclosure standards and operates reliably in harsh environments.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Series: E34
- Mounting Style: Panel Mount
- Diameter: 30.5 mm
- Corrosion Resistant: Yes, with epoxy coating
- Watertight/Oiltight: Yes
- Actuator Type: PresTest
- Indicating Light: LED
- Terminal Type: Screw
- Enclosure Type: NEMA 3/3R/4/4X/12/13
- Operating Temperature Range: 1 to 150 °F
- Storage Temperature Range: -40 to 176 °F
Specifications
- Part Number: E34FPB297L
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
Product Data
- UPC : 782114687291
- GTIN : 00782114687291
- Weight : 0.01
