E22GD2 - Cutler Hammer 22.5mm Non-Metallic Heavy-Duty Push-Pull Operator, Red, Illuminated, E22 Series, No Light Unit, Two-Position, Maintained

E22GD2

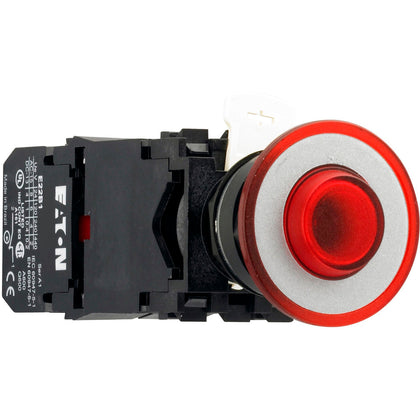

E22GD2 is a Cutler Hammer 22.5 mm non-metallic heavy-duty push-pull operator for the E22 Series, featuring a red, chrome-bezel actuator and illuminated design (no light unit included).

This standard actuator is designed for use with Eaton E22 Series illuminated pushbutton switches, offering a two-position, maintained push-pull operation. It is constructed from durable plastic and is suitable for industrial environments requiring robust switch actuation. The operator accepts a maximum of two contact blocks when used with the supplied 3-way adapter and includes a lamp extender for flexibility in installation.

Key Specifications

• Part Number: E22GD2
• Manufacturer: Cutler Hammer (Eaton)
• Series/Frame: E22 Series
• Actuator Type: Push-pull, maintained, two-position
• Material: Non-metallic, heavy-duty plastic
• Actuator Size: 22.5 mm
• Color: Red with chrome bezel
• Illuminated: Yes (no light unit included)
• Mounting Type: Panel mount (compatible with E22 Series switches)
• Contact Blocks: Accepts up to 2 (with 3-way adapter)
• IP/NEMA Rating: NEMA 3, 3R, 4, 4X, 12, 13 (typical for E22 Series)
• Certifications: Not specified in available data
• Amperage, Voltage, Poles, Interrupt Rating, Trip Unit: Not specified in available data

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E22GD2
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Switch
• Item Subcategory : Pushbutton Switch
• Type : E22 Series

Product Data

• UPC : 078211346745
• GTIN : 00782113467450
• Dimensions : 2.5 in x 1 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.14 lb
• Certification : IEC 947-5-1 MTTA ; CSA Certified ; UL 508 ; Lloyd's Register Certified
