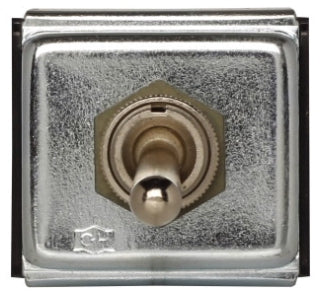

E10E415ES - Eaton 4-Pole Toggle Switch 15A 125V Screw Mount Double-Throw Lever 0.688 Inch

E10E415ES

This Eaton E10 series toggle switch features a double-throw (ON-NONE-ON) function, screw terminal mounting, and a robust slow make/slow break mechanism suitable for AC and low voltage DC applications. It supports 15A at 125 VAC, 10A at 250 VAC, and up to 3/4 HP at 250 VAC. The switch offers a mechanical life of 100,000 operations and electrical life of 6,000 cycles at rated load, with a temperature range from -50 to 150°F. It mounts via a threaded 0.468 in-32 bushing with a keyway for secure installation.

Key Specifications
• Manufacturer: Eaton
• Part Number: E10E415ES
• Poles: 4
• Function: ON - NONE - ON (Double Throw)
• Amperage: 15A at 125 VAC, 10A at 250 VAC
• Voltage Rating: 125 VAC (primary), 250 VAC (secondary)
• Lever Length: 0.688 inch (17.5 mm)
• Mounting Type: Screw terminal, threaded bushing
• Horsepower Rating: 3/4 HP at 250 VAC
• Operation: Slow make/slow break mechanism
• Electrical Life: 6,000 cycles at rated load
• Mechanical Life: 100,000 operations
• Operating Temperature: -50 to 150°F (-46 to 66°C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: E10E415ES
• Manufacturer : Eaton
• Brand : Eaton
• Category : Automation
• Item Subcategory : Automation Switch



Product Data

• UPC : 78211369860
• GTIN : 00782113698601
• Dimensions : 5 in x 1.5 in x 4 in (Length/Depth x Height x Width)
• Weight : 0.15
