Product Info
- Manufacturer:Eaton
Description
E1049X-1837X-G

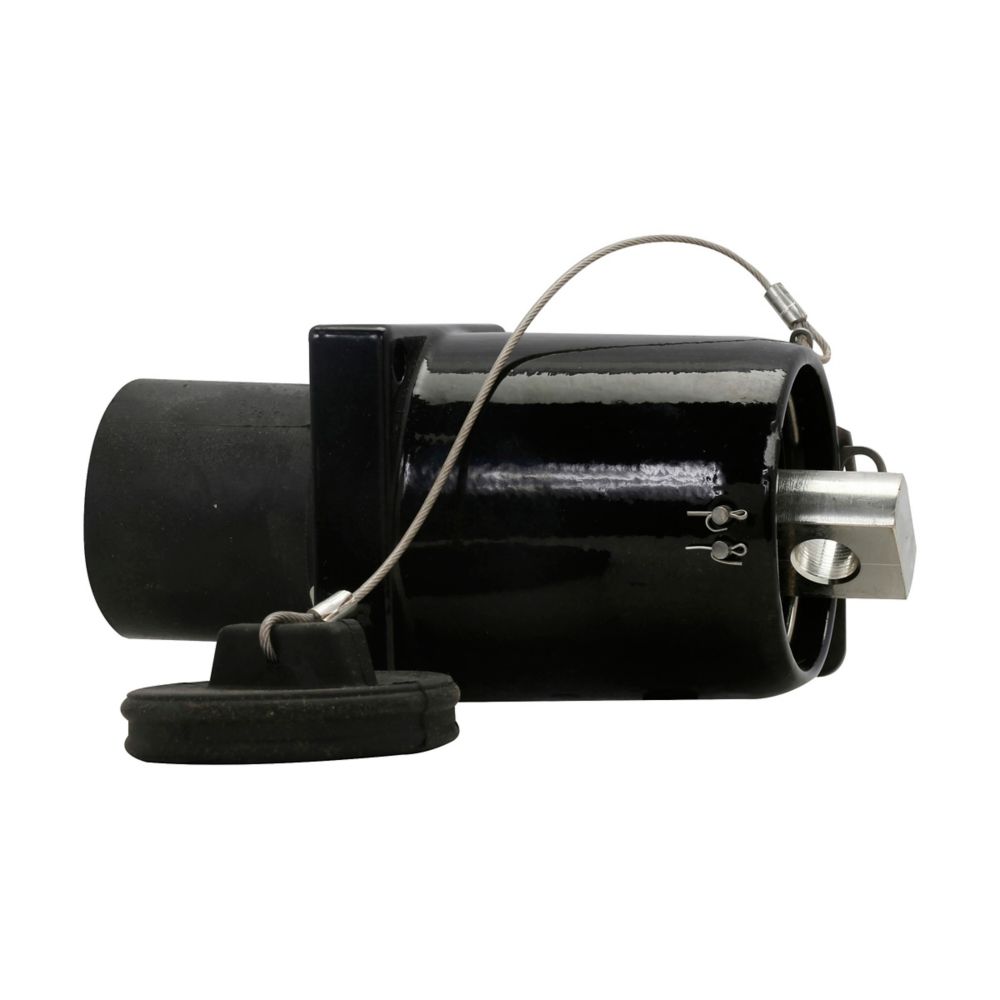

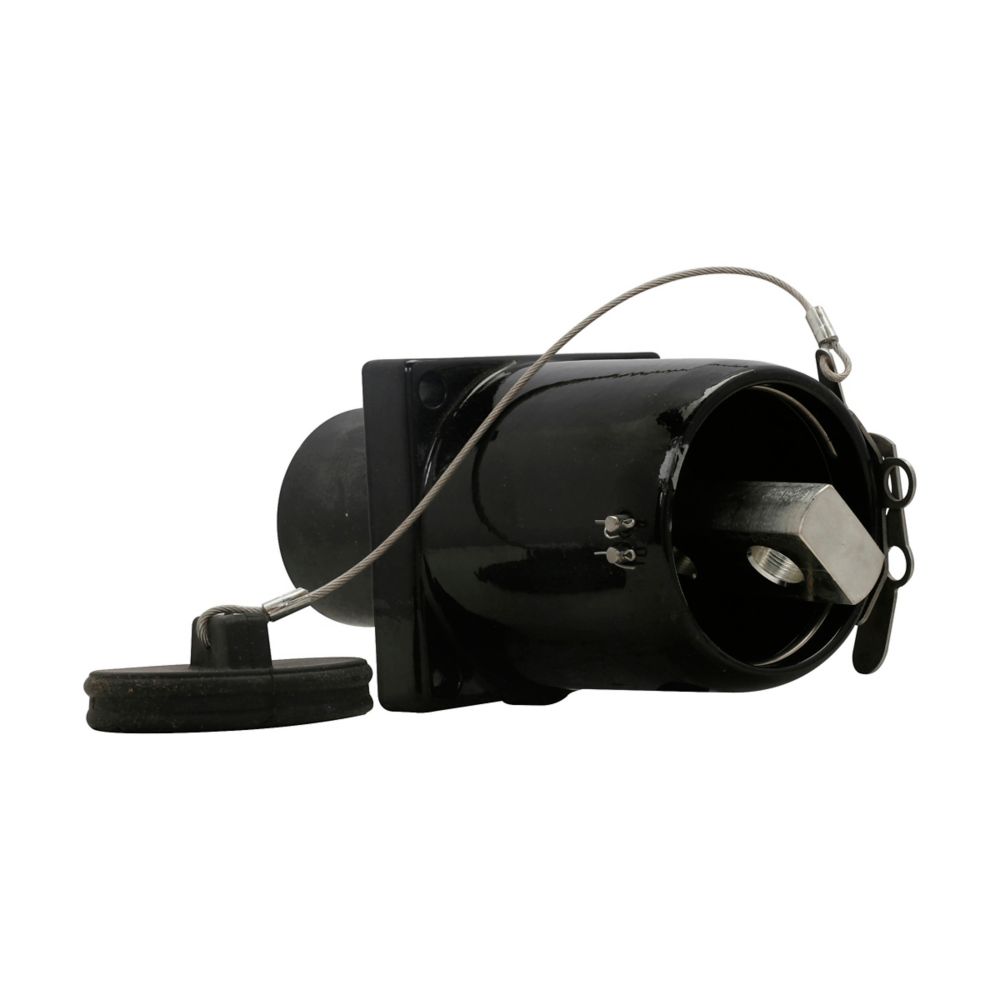

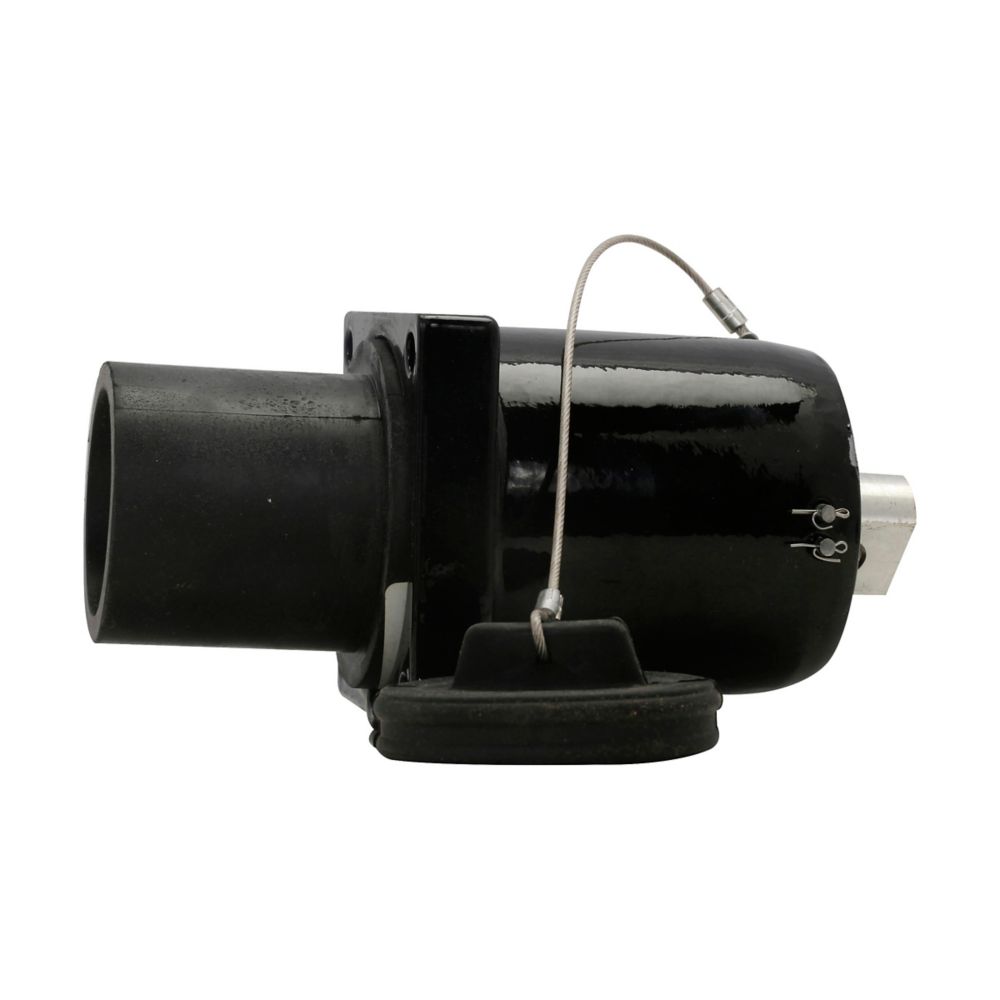

E1049X-1837X-G is a Crouse-Hinds Roughneck series female receptacle designed for high amperage single conductor connections in oil drilling applications.This rugged, weatherproof connector features epoxy powder coating for corrosion resistance, 360-degree mounting, and NEMA 3 rating for superior performance in harsh environments.Key Specifications
- Part Number: E1049X-1837X-G
- Manufacturer: Eaton
- Amperage: 1135 A
- Voltage: 1000 VAC/VDC
- Wire Size: 313 to 777 kcmil
- Connection: Double Hole Busbar
- NEMA Rating: NEMA 3
- Temperature: -40 to 125 deg C
- Color: Green
Specifications
- Part Number: E1049X-1837X-G
- Manufacturer : Eaton
- Brand : Eaton
- Category : Wiring Devices
- Item Subcategory : Single pole devices
- Type : Double hole bus bar
- Voltage : 1000 VAC/VDC
- Amperage : 1135 A
- Connection : Double Hole Busbar
- Temp Rating : -40 to 125 deg C
- Wire : 313 to 777 kcmil
- Nema Rating : NEMA 3
- Material : Rubber
- NEC hazardous rating : Class I, Division 2
- Ingress protection (IP) ratings : IP54
- Special features : Zone 2 rated
- IECEx/ATEX hazardous rating : Zone 2
- Color : Green
- Gender : Female
Product Data
- UPC : 662275963093
- Dimensions : 8.56 in x 4.25 in x 4.25 in (Length/Depth x Height x Width)
- Weight : 9.5 lb
- Temp Rating : -40 to 125 deg C
