E1017-355K - Eaton Crouse-Hinds Wiring Devices Plug 545A

E1017-355K

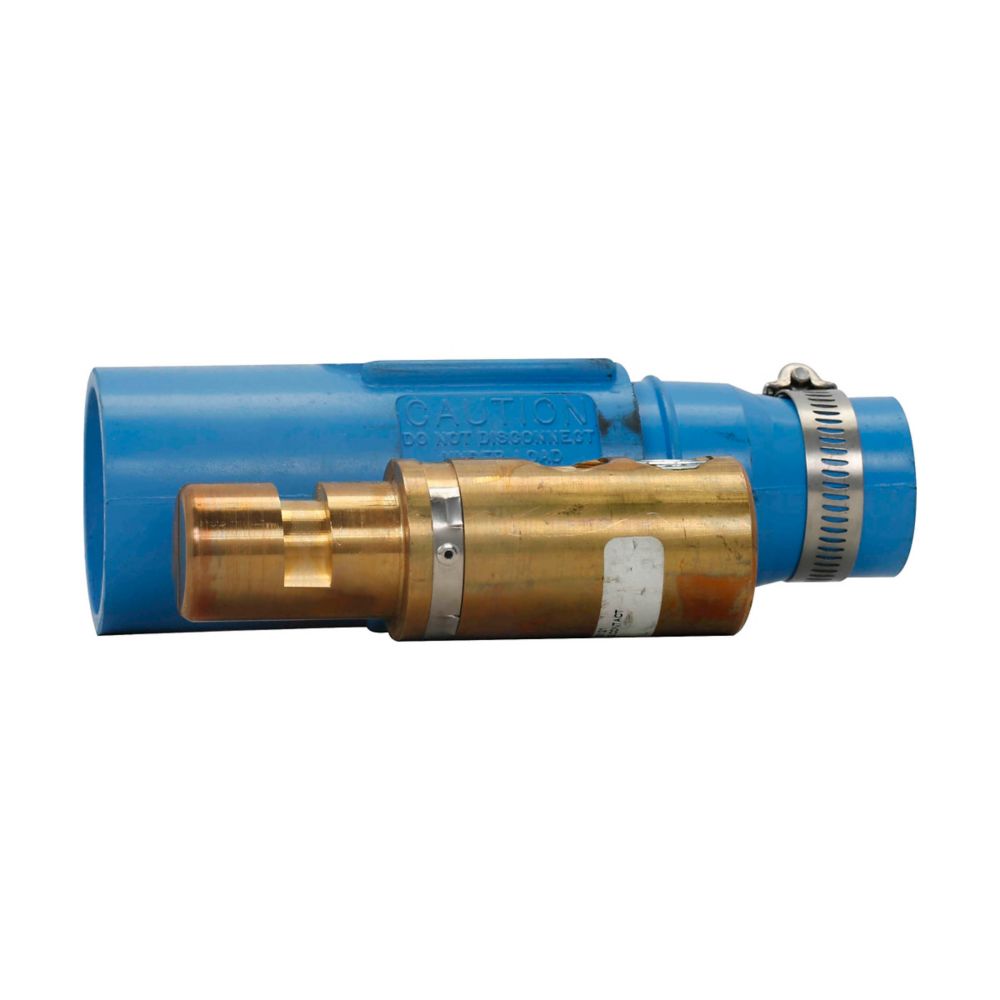

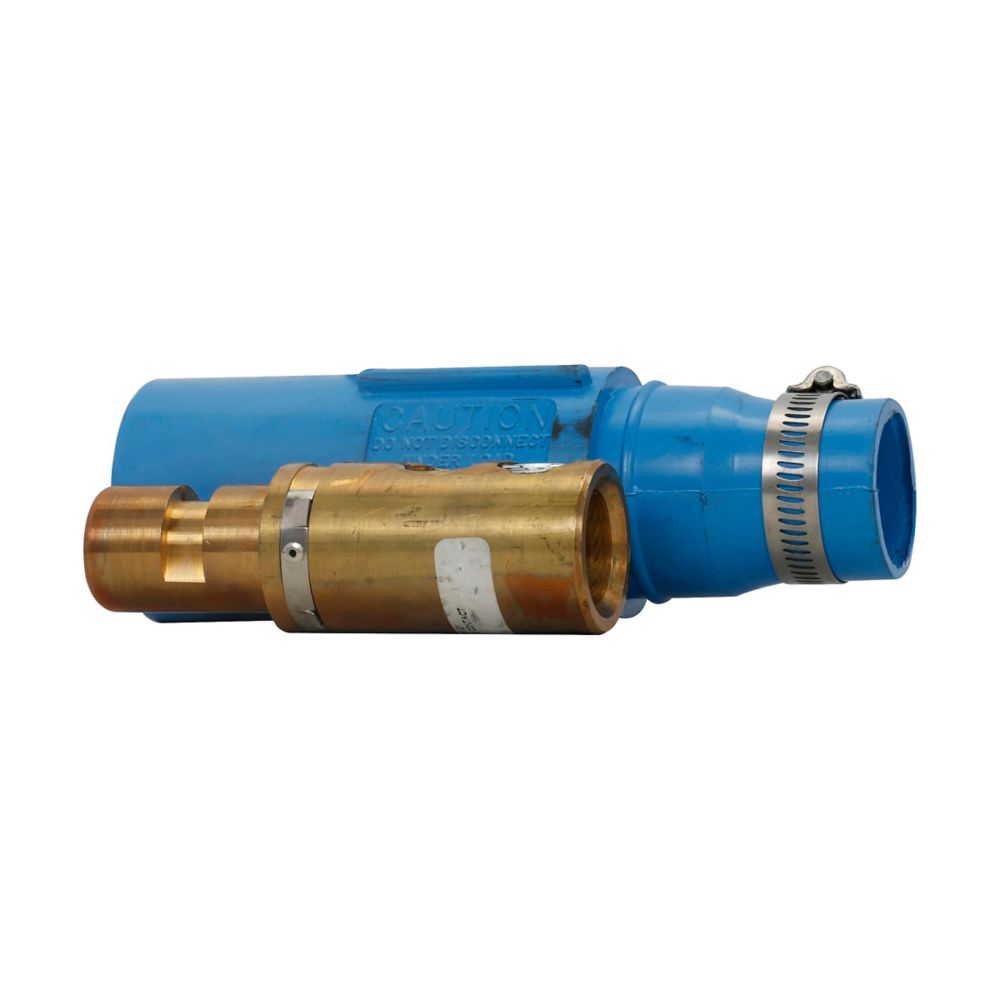

E1017-355K is an Eaton Crouse-Hinds Cam-Lok J Series male plug connector rated for up to 545A continuous current at 600V AC/DC. E1017-355K features brass contacts, double set screw connection, and non-vulcanized rubber housing suitable for 350-500 kcmil cable applications. The connector is rated NEMA 3R for ordinary/non-hazardous locations and operates across a temperature range of -40 to 105 degrees Celsius. Key Specifications

• Part Number: E1017-355K
• Manufacturer: Eaton Crouse-Hinds
• Amperage Rating: 545 A
• Voltage Rating: 600 V AC/DC
• Cable Size: 350-500 kcmil
• Connection Type: Double set screw
• Contact Material: Brass
• Gender: Male
• Housing Material: Neoprene Rubber
• Type: Non-vulcanized
• NEMA Rating: 3R
• Temperature Rating: -40 to 105 degrees C
• Dimensions: 2.69 in diameter x 7 in length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E1017-355K
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Wiring Devices
• Item Subcategory : Single pole devices
• Type : Non-vulcanized
• Voltage : 600 V AC/DC
• Amperage : 545 A
• MCM Size : 350-500 kcmil
• Diameter : 2.69 in
• Nema Rating : 3R
• Operating Temperature Maximum Celsius : -40 to 105 degrees C
• Material : Neoprene Rubber
• Special features : Non-vulcanized
• Color : White
• Contact material : Brass
• Gender : Male

Product Data

• UPC : 662275883452
• Dimensions : 7 in x 2.69 in x 2.69 in (Length/Depth x Height x Width)
• Weight : 4.16 lb
