Product Info
- Manufacturer:Eaton
- Sub-Category:Single pole devices
Description
E1016SC-39

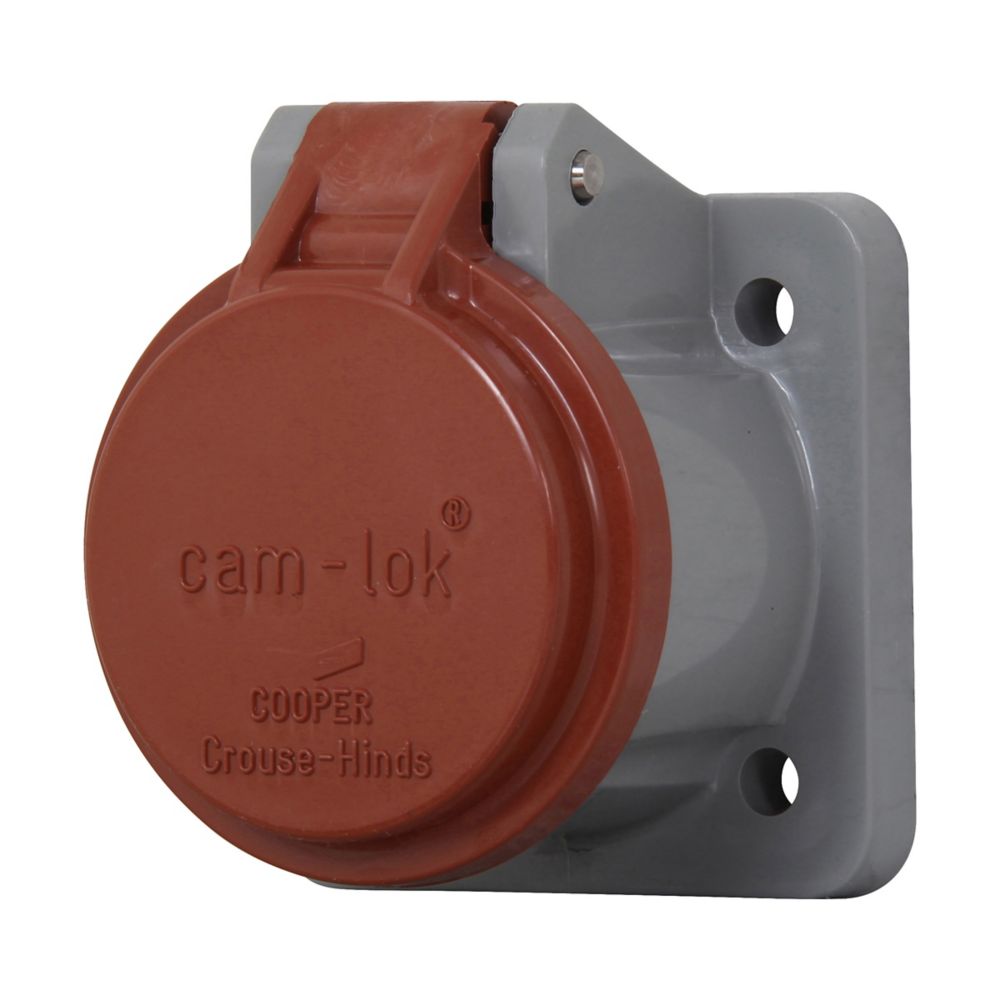

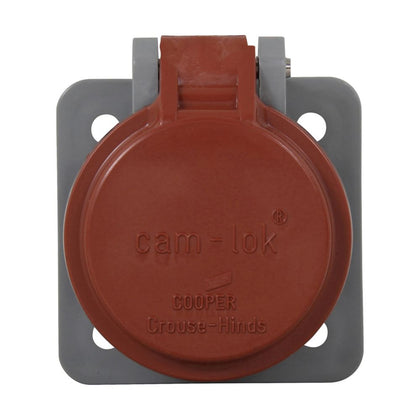

E1016SC-39 is an orange NEMA 3R snap-back receptacle cover for Cam-Lok single pole connectors. This thermoplastic cover is designed to protect J-Series E1016 receptacles in outdoor and harsh environments. The unit accommodates wire sizes from 350 to 500 MCM and is rated for 600 VAC/VDC operation with a continuous amperage rating of up to 400A. Operating temperature range is -40°C to 105°C, and the cover meets UL1691 and CSA C22.2 No.1691-12 certifications. Key Specifications
- Part Number: E1016SC-39
- Manufacturer: Eaton
- Voltage Rating: 600 V
- Wire Size: 350-500 MCM
- NEMA Rating: 3R
- Material: Thermoplastic
- Temperature Rating: -40 to 105 C
- Dimensions: 2.25 in L x 1.88 in W x 2.56 in H
- Poles: 1
Specifications
- Part Number: E1016SC-39
- Manufacturer : Eaton
- Brand : Eaton
- Category : Wiring Devices
- Item Subcategory : Single pole devices
- Voltage : 600 V
- Poles : 1
- Temp Rating : -40 to 105 C
- MCM Size : 350-500 MCM
- Nema Rating : 3R
- Amperage Maximum : 400 A
- Material : Thermoplastic
- Color : Orange
Product Data
- UPC : 662275240774
- GTIN : 00662275000000
- Dimensions : 2.25 in x 2.56 in x 1.88 in (Length/Depth x Height x Width)
- Weight : 0.12 lb
- Temp Rating : -40 to 105 C
