E1016-8380 - Eaton Wiring Devices Cam-Lok Plug 300A

E1016-8380

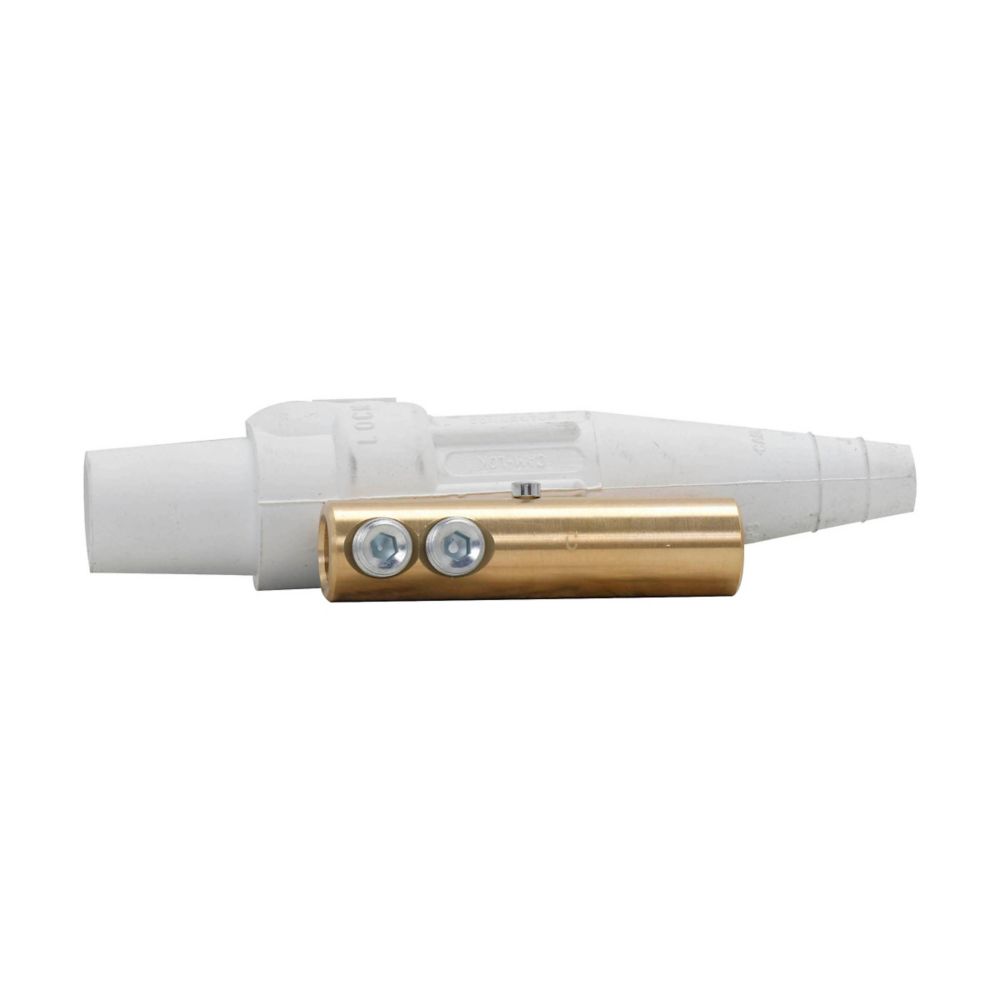

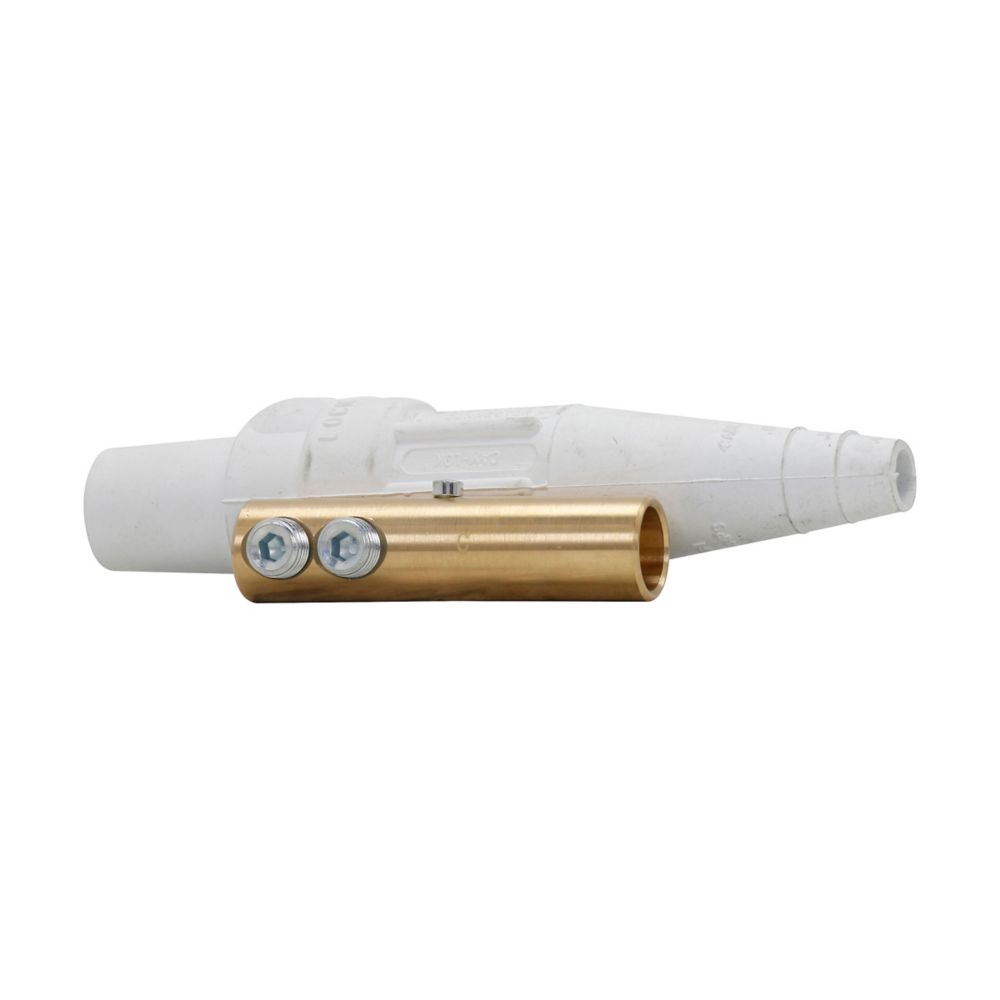

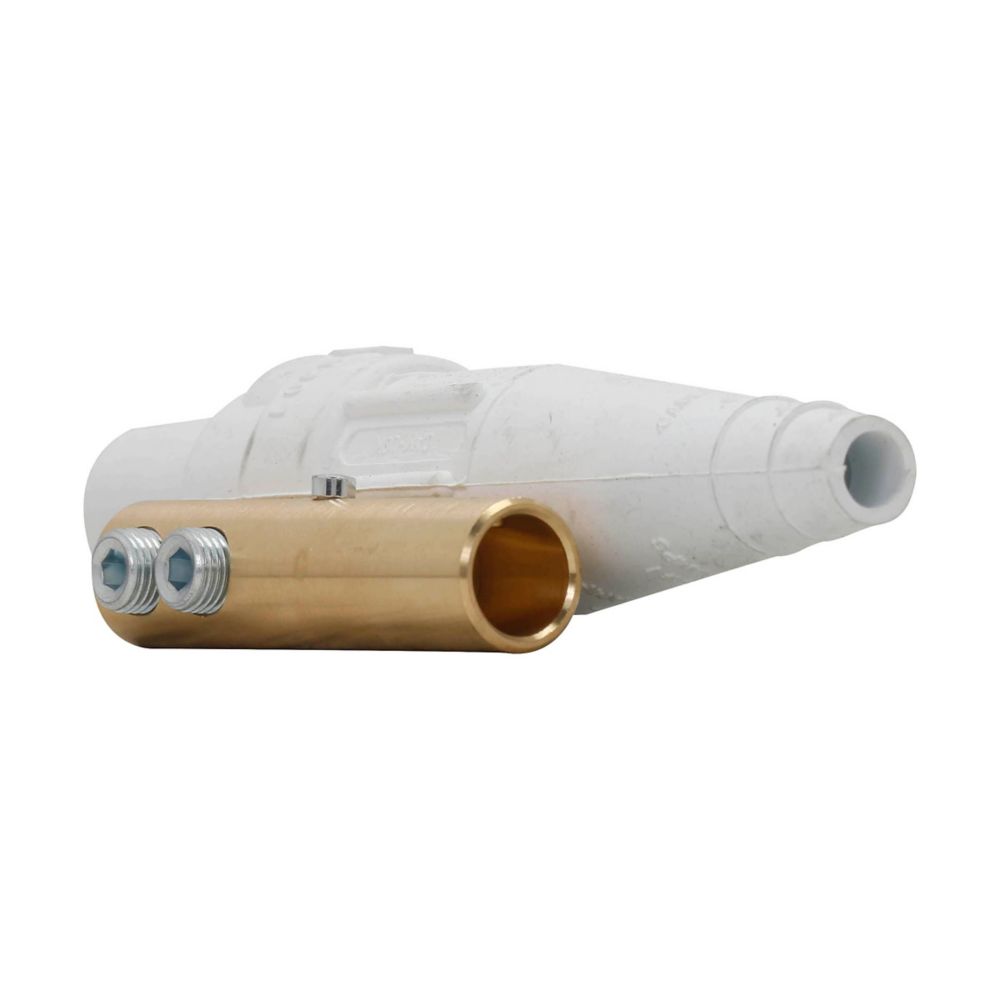

E1016-8380 is an Eaton Crouse-Hinds series Cam-Lok J Series female plug designed for high-amperage power distribution applications. This non-vulcanized thermoplastic elastomer (TPE) plug features double set screw connections with brass contacts, rated for continuous operation up to 300A at 600V AC/DC. The connector accommodates #2 to 2/0 AWG cable and is suitable for portable power, motors, and generators in ordinary/non-hazardous locations. It meets NEC/CEC standards with a NEMA 3R rating and operates reliably across a temperature range of -40 to 105 degrees Celsius. Key Specifications

• Part Number: E1016-8380
• Manufacturer: Eaton
• Amperage: 300 A
• Voltage: 600 V
• Wire Size: #2-2/0 AWG
• Connection Type: Double Set Screw
• Contact Material: Brass
• Material: Thermoplastic elastomer (TPE)
• Gender: Female
• Color: White
• NEMA Rating: 3R
• Temperature Rating: -40 to 105 degrees C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E1016-8380
• Manufacturer : Eaton
• Brand : Eaton
• Category : Wiring Devices
• Item Subcategory : Single pole devices
• Type : Non-vulcanized
• Voltage : 600 V
• Amperage : 300 A
• Connection : Double Set Screw
• Wire : #2-2/0 AWG
• Nema Rating : 3R
• Operating Temperature Maximum Celsius : -40 to 105 degrees C
• Material : Thermoplastic elastomer (TPE)
• Special features : Non-vulcanized
• Color : White
• Contact material : Brass
• Gender : Female

Product Data

• UPC : 662275131843
• GTIN : 00662275000000
• Dimensions : 7.18 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.6 lb
