E1016-60 - Eaton Wiring Devices Cam-Lok Plug 190A 600V

E1016-60

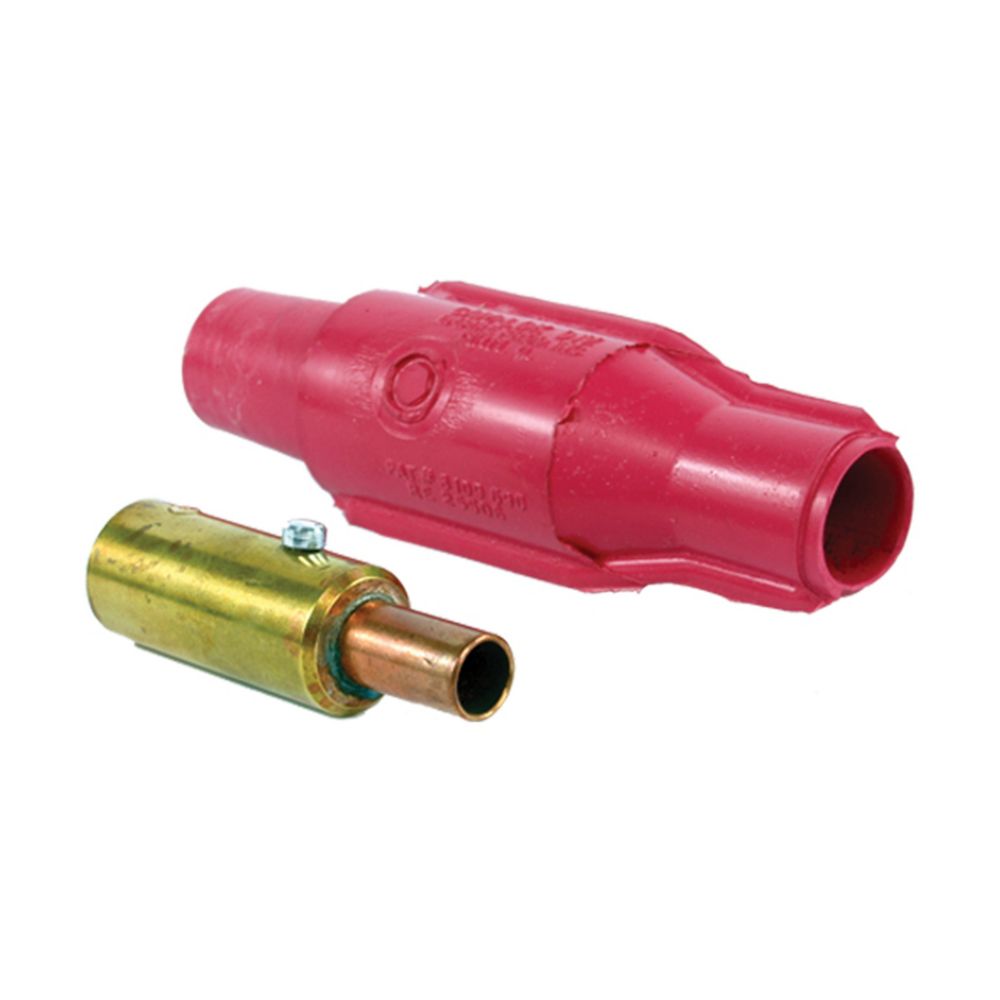

E1016-60 is an Eaton Crouse-Hinds series Cam-Lok J Series single pole plug insulator designed for reliable electrical connectivity in industrial applications. This vulcanized rubber plug features a female connector with crimped brass contacts, rated for continuous operation up to 190 amperes at 600 volts AC/DC. The connector accepts cable sizes #2 to #1 AWG and is color-coded green for easy identification. It operates reliably across a wide temperature range of -40°C to 105°C and is certified to UL1691 and CSA C22.2 No.1691-12 standards with a NEMA 4 rating. The double cam principle design provides a positive, vibration-proof connection that is self-compensating for wear with no moving contact surfaces to eliminate arcing. Key Specifications

• Part Number: E1016-60
• Manufacturer: Eaton
• Voltage Rating: 600 V
• Amperage Rating: 190 A
• Cable Size: #2-#1 AWG
• Connection Type: Crimp
• Contact Material: Brass
• Gender: Female
• Insulation Material: Rubber (Vulcanized)
• Operating Temperature: -40°C to 105°C
• NEMA Rating: 4
• Color: Green

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E1016-60
• Manufacturer : Eaton
• Brand : Eaton
• Category : Wiring Devices
• Item Subcategory : Single pole devices
• Type : Vulcanized
• Voltage : 600 V
• Amperage : 190 A
• MCM Size : #2-#1 AWG
• Nema Rating : 4
• Operating Temperature Maximum Celsius : -40°C to 105°C
• Material : Rubber (Vulcanized)
• Color : Green
• Contact material : Brass
• Gender : Female

Product Data

• UPC : 662275130433
• GTIN : 00662275000000
• Dimensions : 5.5 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.6 lb
