E1016-2316 - Eaton Wiring Devices Cam-Lok Connector 400A

E1016-2316

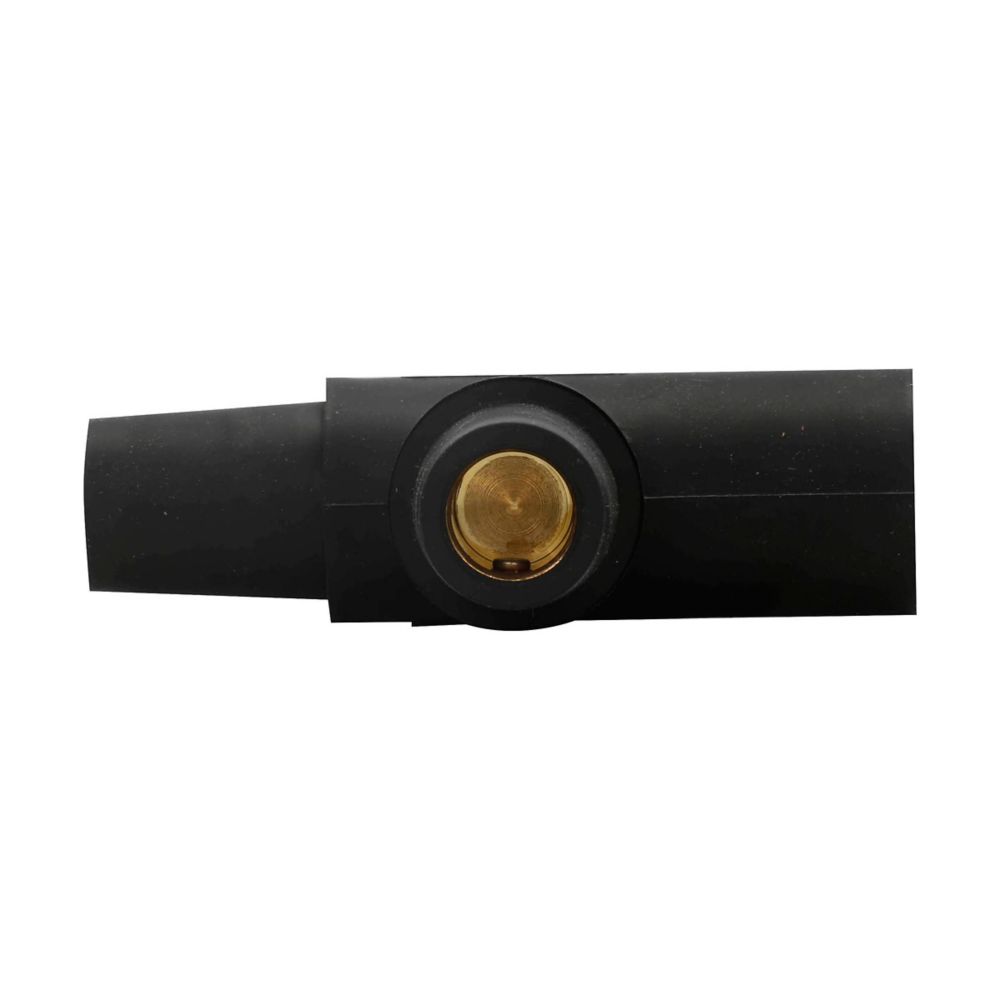

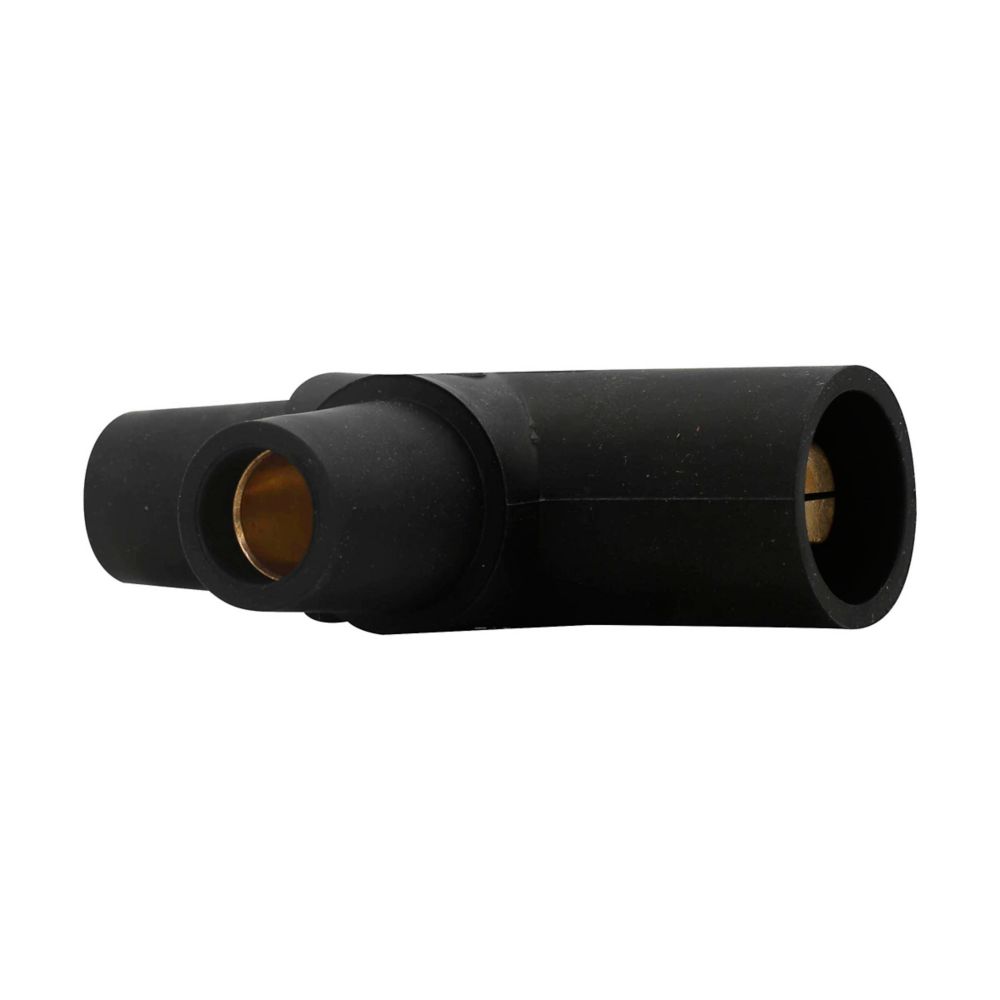

E1016-2316 is an Eaton Crouse-Hinds series Cam-Lok J Series three-way T connector designed for high-amperage power distribution applications. This lay-down tapping connector features a male-female-female configuration with thermoplastic elastomer construction and green color coding for easy identification. Rated for up to 400A continuous current at 600 VAC/VDC, it accommodates 2-4/0 AWG conductors and meets NEMA 3R specifications for outdoor use in non-hazardous locations. Operating temperature range is -40 to 105°C. Common applications include welding equipment, power distribution panels, patch panels, and heat treating systems. Key Specifications

• Part Number: E1016-2316
• Manufacturer: Eaton
• Amperage: 400 A
• Voltage: 600 V
• Wire Size: 2-4/0 AWG
• Gender: Male-Female-Female
• Type: Lay Down Tapping
• Material: Thermoplastic elastomer (TPE)
• Color: Green
• NEMA Rating: 3R
• Temperature Rating: -40 to 105 C
• Poles: 1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E1016-2316
• Manufacturer : Eaton
• Brand : Eaton
• Category : Wiring Devices
• Item Subcategory : Single pole devices
• Type : Lay down
• Voltage : 600 V
• Amperage : 400 A
• Poles : 1
• Wire : 2-4/0 AWG
• Configuration : Three-way T connector
• Nema Rating : 3R
• Operating Temperature Maximum Celsius : -40 to 105 C
• Circuit Breaker Mounting Style : Lay Down Tapping
• Material : Thermoplastic elastomer (TPE)
• Color : Green
• Gender : Male-Female-Female

Product Data

• UPC : 662275129819
• GTIN : 00662275000000
• Dimensions : 5 in x 3.31 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 1 lb
