Description
E1016-2314

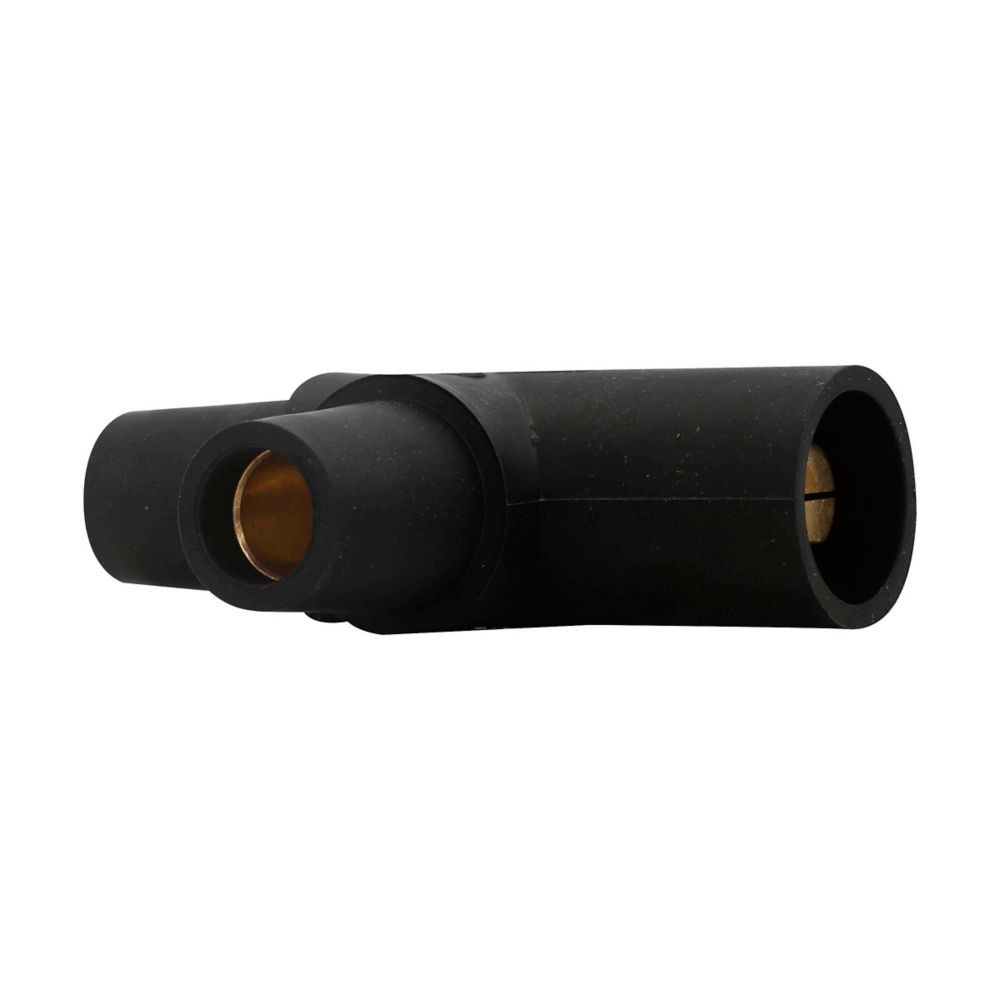

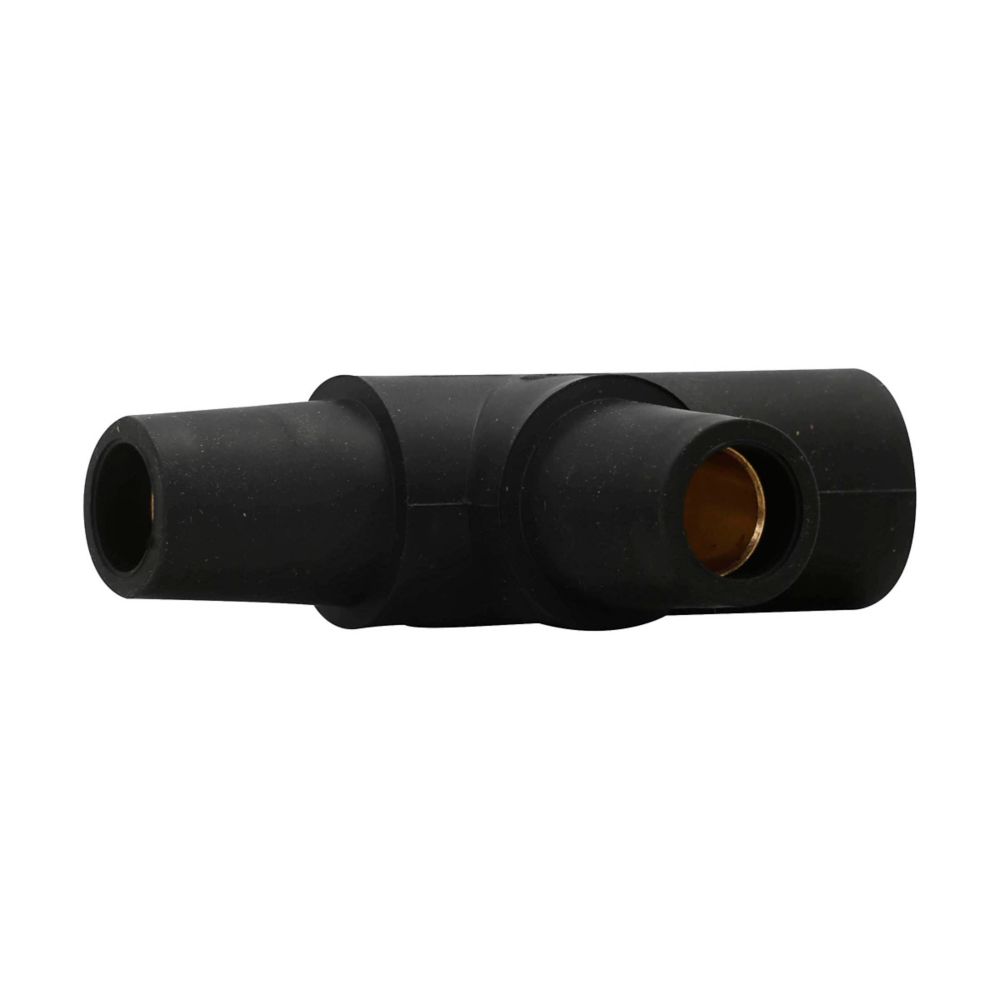

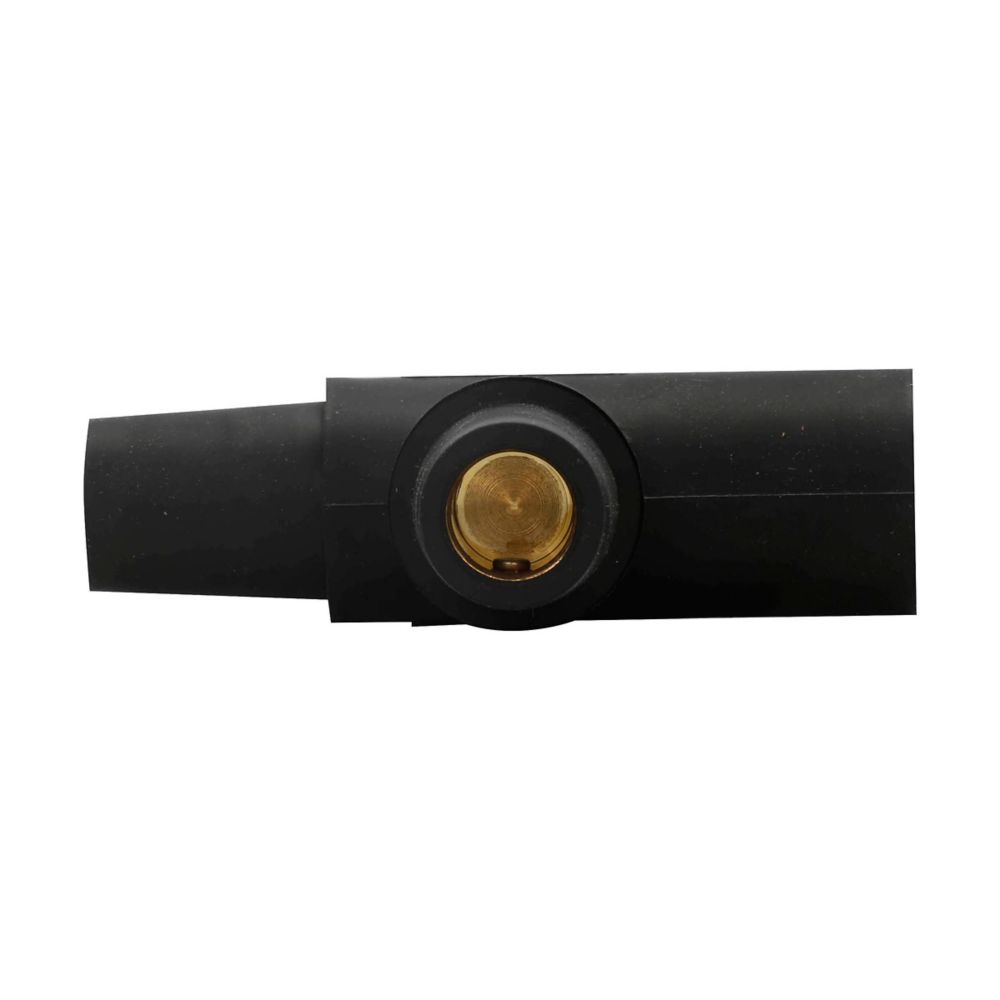

E1016-2314 is an Eaton Crouse-Hinds Cam-Lok J Series three-way T connector rated for up to 400A continuous operation. This male-female-female connector is designed for industrial power distribution and temporary power applications. The connector features a thermoplastic elastomer (TPE) insulator, operates at 600 Vac/dc, and is rated NEMA 3R for outdoor use. It accepts cable sizes from 2 to 4/0 AWG and operates reliably across a temperature range of -40°C to 105°C. Key Specifications
- Part Number: E1016-2314
- Manufacturer: Eaton
- Amperage: 400 A
- Voltage: 600 V
- Gender: Male-Female-Female
- Connector Type: Three-way T connector
- NEMA Rating: 3R
- Material: Thermoplastic elastomer (TPE)
- Temperature Rating: -40 to 105 degrees C
- Cable Size: 2 to 4/0 AWG
Specifications
- Part Number: E1016-2314
- Manufacturer : Eaton
- Brand : Eaton
- Category : Wiring Devices
- Item Subcategory : Single pole devices
- Type : Lay down
- Voltage : 600 V
- Amperage : 400 A
- Wire : 2 to 4/0 AWG
- Configuration : Three-way T connector
- Nema Rating : 3R
- Operating Temperature Maximum Celsius : -40 to 105 degrees C
- Material : Thermoplastic elastomer (TPE)
- Color : Red
- Gender : Male-Female-Female
Product Data
- UPC : 662275129796
- GTIN : 00662275000000
- Dimensions : 5 in x 3.31 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 1 lb
