Product Info
- Manufacturer:Eaton
Description
E1016-1634S

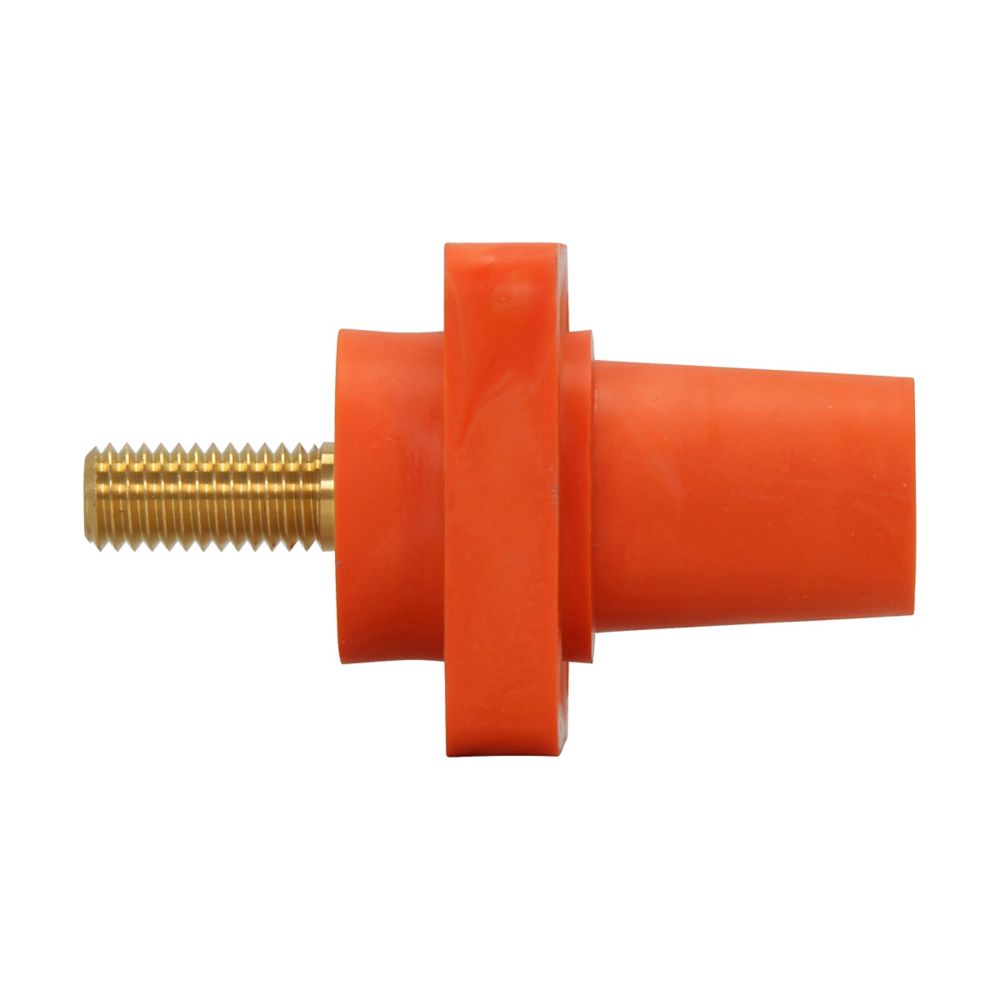

E1016-1634S is an Eaton Crouse-Hinds Cam-Lok J Series insulated receptacle designed for industrial power distribution applications. This female receptacle supports up to 400A continuous current at 600 Vac/dc, with a 1-1/8 inch threaded stud connection and thermoplastic elastomer (TPE) insulation rated for -40 to 105 degrees Celsius. The unit meets NEMA 3R enclosure standards and is suitable for ordinary/non-hazardous locations, complying with NEC/CEC standards and UL 498 and CSA C22.72 certifications. Key Specifications
- Part Number: E1016-1634S
- Manufacturer: Eaton
- Voltage: 600 V
- Amperage: 400 A
- Wire Size: 6 AWG to 250 kcmil
- Connection: 1-1/8 inch threaded stud
- Gender: Female
- Insulation Material: Thermoplastic elastomer (TPE)
- NEMA Rating: 3R
- Temperature Rating: -40 to 105 degrees Celsius
- Poles: 1
Specifications
- Part Number: E1016-1634S
- Manufacturer : Eaton
- Brand : Eaton
- Category : Wiring Devices
- Item Subcategory : Single pole devices
- Type : Threaded stud
- Voltage : 600 V
- Amperage : 400 A
- Poles : 1
- Wire : 6 AWG to 250 kcmil
- Nema Rating : 3R
- Operating Temperature Maximum Celsius : -40 to 105 degrees Celsius
- Circuit Breaker Mounting Style : Panel Mount
- Material : Thermoplastic elastomer (TPE)
- Color : Orange
- Gender : Female
Product Data
- UPC : 662275128621
- GTIN : 00662275000000
- Dimensions : 3.69 in x 2.25 in x 2.25 in (Length/Depth x Height x Width)
- Weight : 0.63 lb
