E1016-1619S45 - Eaton Wiring Devices 400A 600V

E1016-1619S45

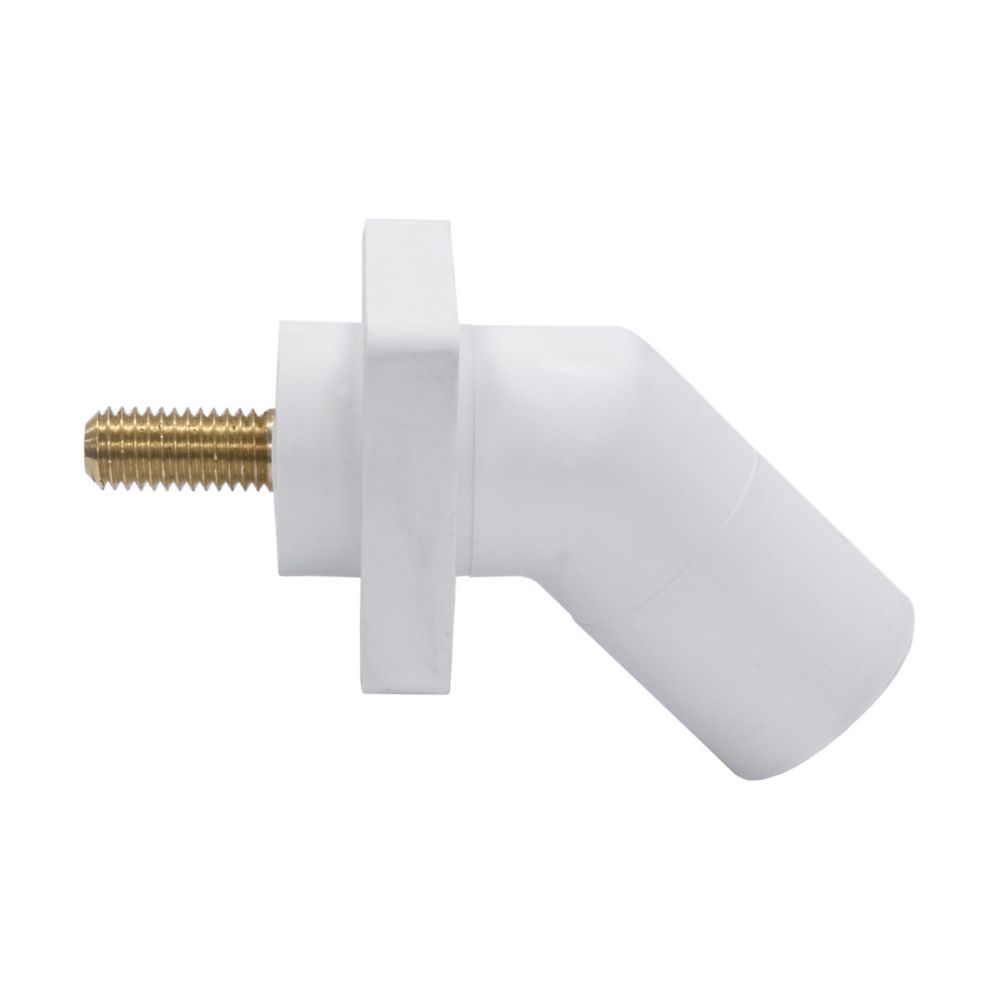

E1016-1619S45 is an Eaton Crouse-Hinds Cam-Lok J Series E1016 insulated receptacle designed for high-power electrical connectivity. This single-pole connector features a 45-degree angled design and is rated for continuous operation up to 400 amperes at 600 volts AC/DC. The receptacle accepts cable sizes from #2 AWG to 4/0 and is constructed with thermoplastic elastomer (TPE) insulation for safety and durability. It is panel-mounted with a screw connection and meets NEMA 3R specifications for outdoor and harsh environment applications. The double cam principle design ensures reliable service under severe operating conditions. Key Specifications

• Part Number: E1016-1619S45
• Manufacturer: Eaton
• Voltage: 600 V AC/DC
• Amperage: 400 A
• Cable Size: #2 AWG - 4/0
• Insulation Material: Thermoplastic Elastomer (TPE)
• Operating Temperature: -40°C to 105°C
• NEMA Rating: NEMA 3R
• Connection Type: Screw
• Angle: 45 degrees
• Certifications: UL1691, CSA C22.2 No.1691-12

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E1016-1619S45
• Manufacturer : Eaton
• Brand : Eaton
• Category : Wiring Devices
• Item Subcategory : Single pole devices
• Type : Threaded stud
• Voltage : 600 V AC/DC
• Amperage : 400 A
• MCM Size : #2 AWG - 4/0
• Nema Rating : NEMA 3R
• Operating Temperature Maximum Celsius : -40°C to 105°C
• Circuit Breaker Mounting Style : Panel Mount
• Installation Type : Screw
• Material : Thermoplastic Elastomer (TPE)
• Color : Brown
• Gender : Male

Product Data

• UPC : 662275986269
• GTIN : 00662276000000
• Dimensions : 5.13 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 1 lb
