E1016-1603 - Eaton Wiring Devices Cam-Lok Receptacle 400A

E1016-1603

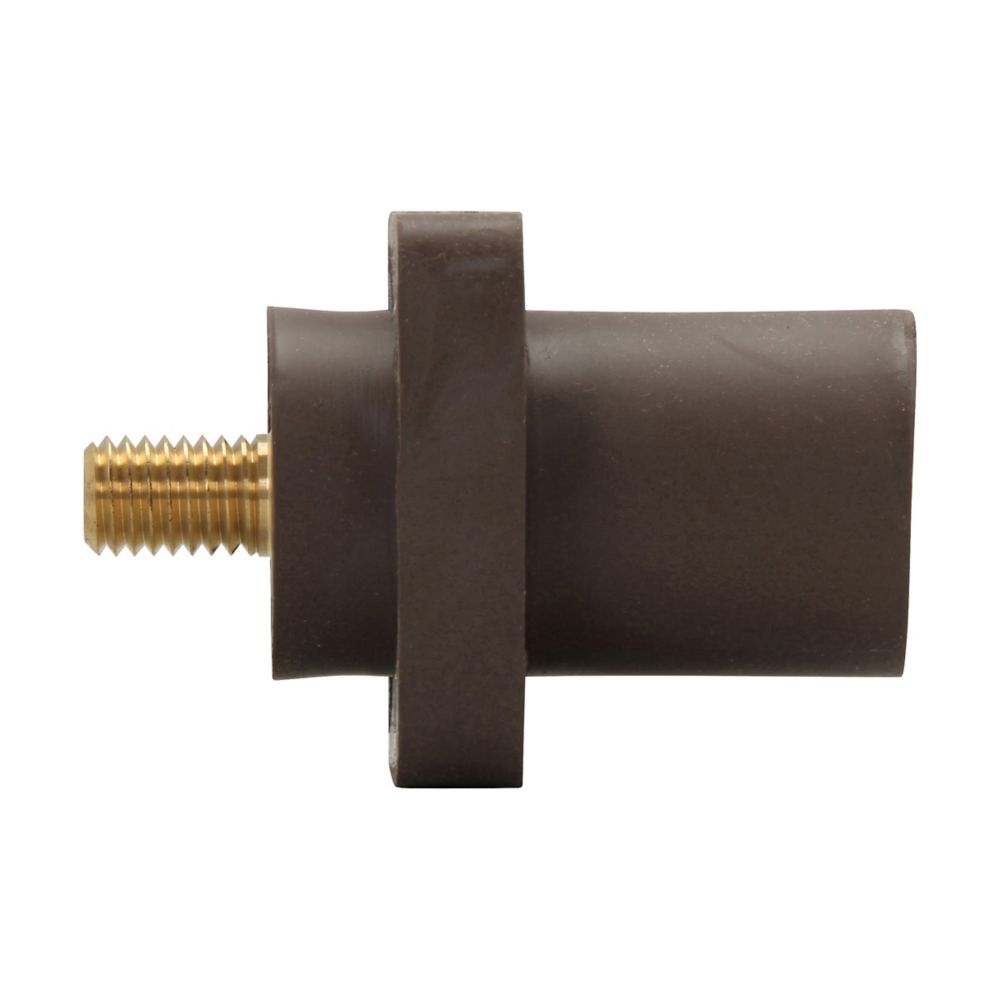

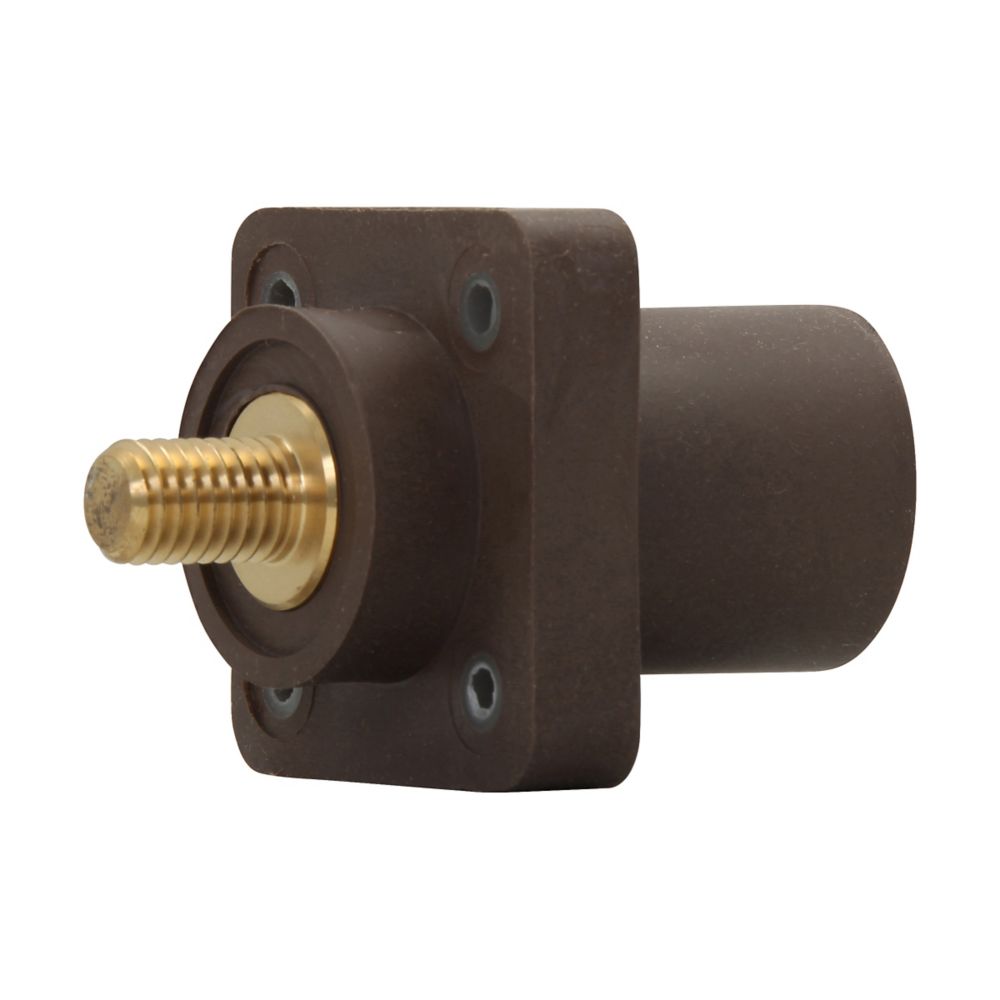

E1016-1603 is an Eaton Crouse-Hinds series Cam-Lok J Series insulated male receptacle designed for high-amperage power distribution applications. This connector features a double cam principle that provides a positive vibration-proof connection with self-compensating wear characteristics and no moving contact surfaces to eliminate arcing or burning. The locked contacts withstand a pulling force of 1000 lb, and a 1/3 turn assures high-pressure contact approaching 600 lb per sq-in for minimum resistance. Suitable for welding equipment, power distribution panels, patch panels, and heat treating applications. Key Specifications

• Part Number: E1016-1603
• Manufacturer: Eaton
• Amperage: 400 A
• Voltage: 600 V AC/DC
• Wire Size: 6 AWG to 250 kcmil
• Connection Type: Threaded Stud (3/4 in)
• Gender: Male
• Material: Thermoplastic elastomer (TPE)
• Contact Material: Brass
• NEMA Rating: 3R
• Color: Orange
• Dimensions: 3.31 in L x 2.25 in W x 2.25 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E1016-1603
• Manufacturer : Eaton
• Brand : Eaton
• Category : Wiring Devices
• Item Subcategory : Single pole devices
• Type : Threaded stud
• Voltage : 600 V AC/DC
• Amperage : 400 A
• Terminal Connection : Threaded Stud
• Wire : 6 AWG to 250 kcmil
• Nema Rating : 3R
• Circuit Breaker Mounting Style : Panel Mounting
• Material : Thermoplastic elastomer (TPE)
• Special features : Double cam principle, vibration-proof connection, self-compensating for wear
• Color : Orange
• Contact material : Brass
• Gender : Male

Product Data

• UPC : 662275128324
• GTIN : 00662275000000
• Dimensions : 3.31 in x 2.25 in x 2.25 in (Length/Depth x Height x Width)
• Weight : 0.61 lb
