E1016-1601S - Eaton Wiring Devices 400A Receptacle

E1016-1601S

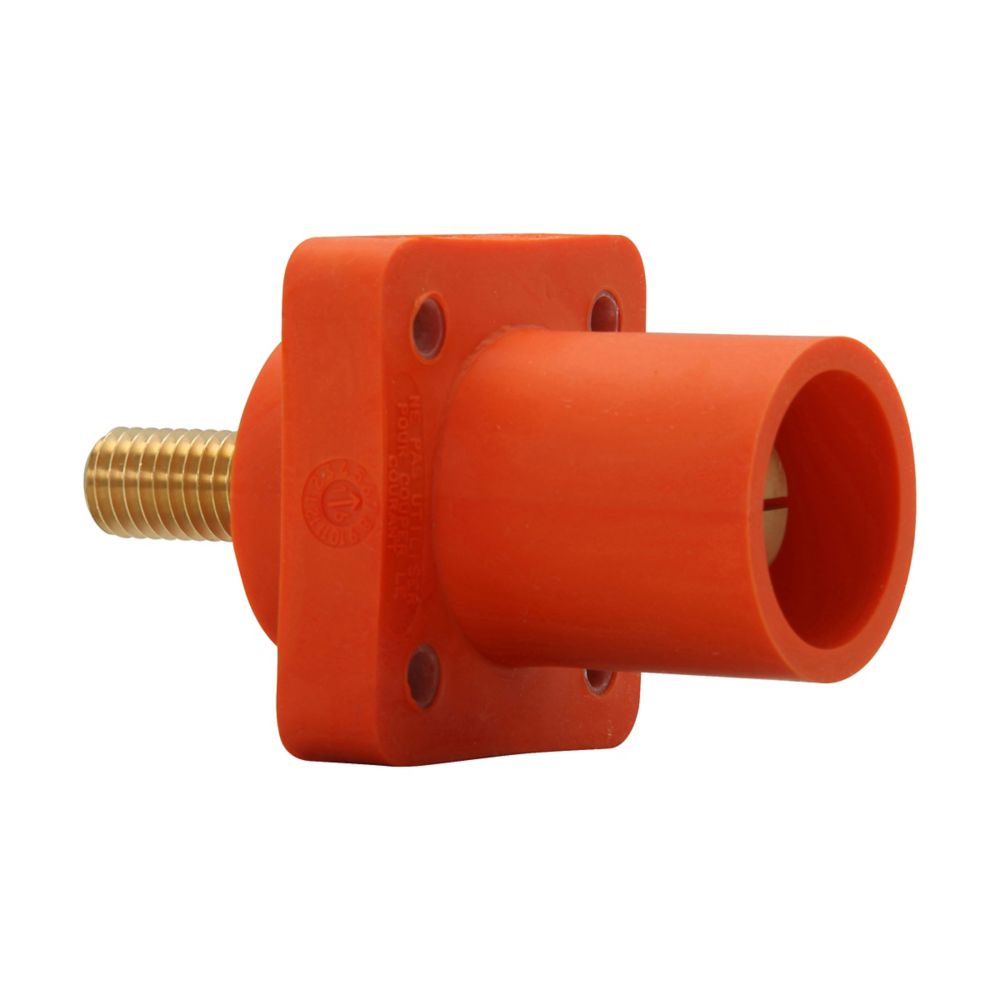

E1016-1601S is an Eaton Crouse-Hinds Cam-Lok J Series E1016 insulated male receptacle designed for industrial power distribution applications. This single-pole connector features a double cam principle for vibration-proof connections and is rated for continuous operation up to 400 amperes at 600 volts AC/DC. The receptacle accepts cable sizes from #6 AWG to 250 kcmil and includes a 1/2 inch-13 TPI threaded stud connection. The yellow-colored housing is constructed from thermoplastic elastomer (TPE) material and is suitable for direct mounting to steel panels with a NEMA 3R rating. Locked contacts withstand pulling forces up to 1000 pounds, and the cam design provides high-pressure contact approaching 600 PSI with minimal resistance. Operating temperature range is -40°C to 105°C. Key Specifications

• Part Number: E1016-1601S
• Manufacturer: Eaton
• Amperage: 400 A
• Voltage: 600 V AC/DC
• Cable Size: #6 AWG to 250 kcmil
• Connection Type: 1/2 inch-13 TPI threaded stud
• Housing Material: Thermoplastic elastomer (TPE)
• Color: Yellow
• Gender: Male
• NEMA Rating: 3R
• Operating Temperature: -40°C to 105°C
• Dimensions: 3.69 in L x 2.25 in W x 2.25 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E1016-1601S
• Manufacturer : Eaton
• Brand : Eaton
• Category : Wiring Devices
• Item Subcategory : Single pole devices
• Type : Threaded stud
• Voltage : 600 V
• Amperage : 400 A
• Terminal Connection : 1/2 inch-13 TPI threaded stud
• MCM Size : #6 AWG to 250 kcmil
• Nema Rating : 3R
• Operating Temperature Maximum Celsius : -40°C to 105°C
• Circuit Breaker Mounting Style : Threaded/Panel
• Material : Thermoplastic elastomer (TPE)
• Color : Yellow
• Contact material : Brass
• Gender : Male

Product Data

• UPC : 662275128263
• GTIN : 00662275000000
• Dimensions : 3.69 in x 2.25 in x 2.25 in (Length/Depth x Height x Width)
• Weight : 0.63 lb
