E1015-8333 - Eaton Wiring Devices Plug 150A 600V

E1015-8333

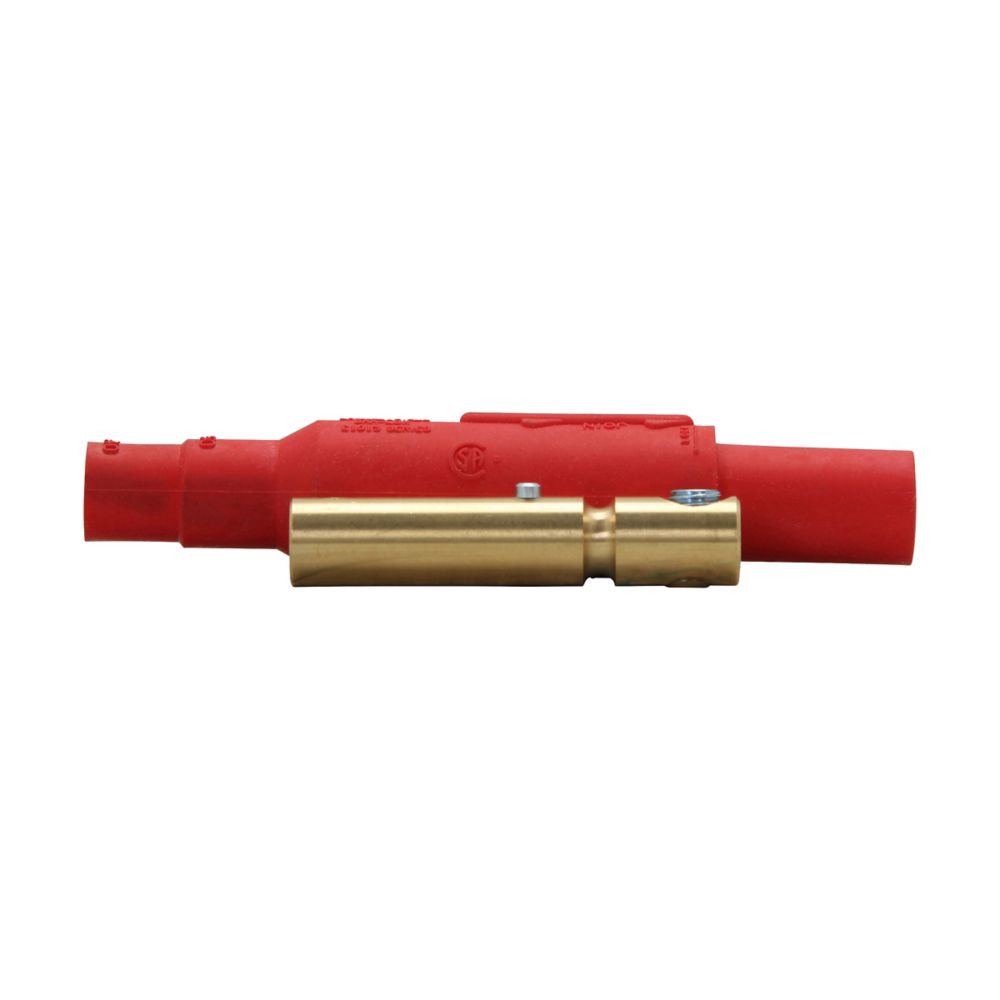

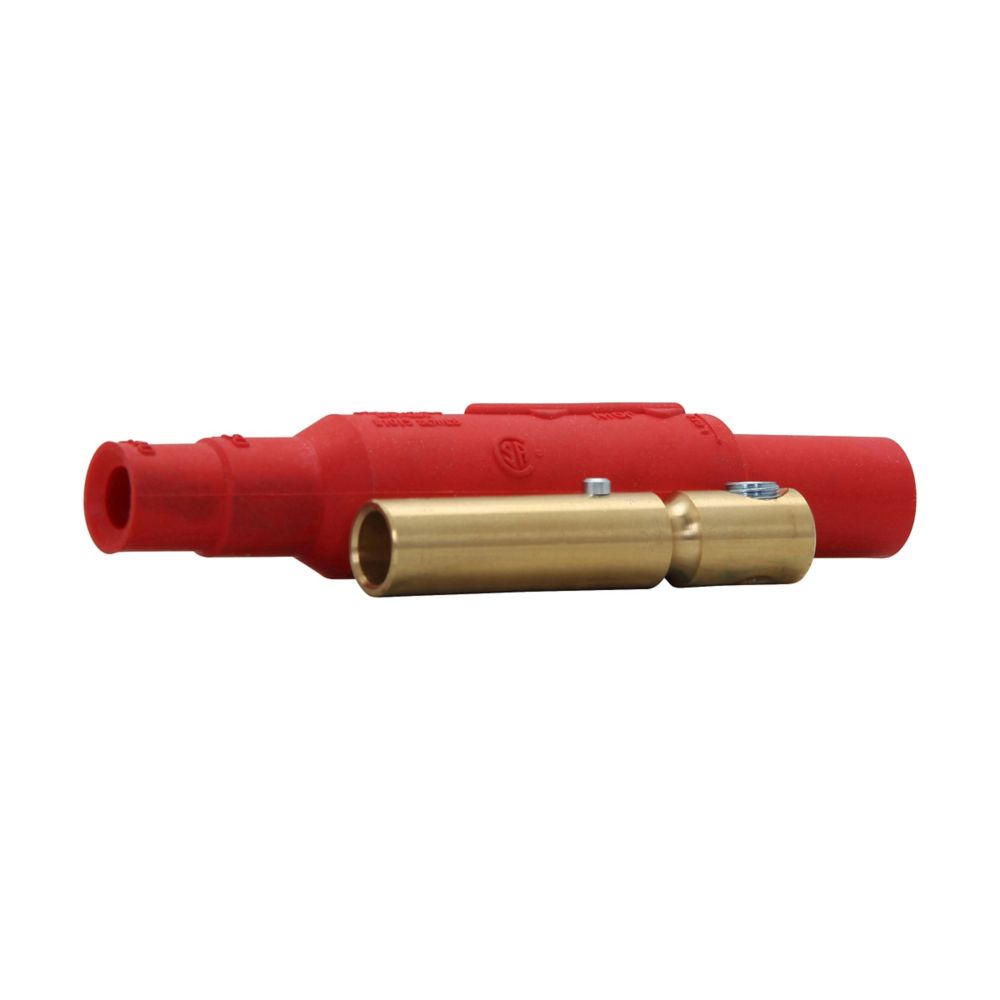

E1015-8333 is an Eaton Crouse-Hinds Cam-Lok J Series female plug connector rated for up to 150A continuous current at 600 Vac/dc. This non-vulcanized connector features brass contacts with a set screw connection type and is designed for industrial power distribution and quick disconnect power systems. The double cam principle provides vibration-proof connections with self-compensating wear characteristics and locked contacts that withstand 1000 lb pulling force. The thermoplastic elastomer housing is color-coded red for easy phase identification and includes an integrated strain relief system with recessed contacts protected by an insulating jacket. Operating temperature range is -40 to 105 degrees Celsius with NEMA 3R rating for ordinary/non-hazardous locations. Key Specifications

• Part Number: E1015-8333
• Manufacturer: Eaton
• Amperage: 150 A
• Voltage: 600 V
• Wire Size: #8-#4 AWG
• Connection Type: Set screw
• Contact Material: Brass
• Gender: Female
• Housing Material: Thermoplastic elastomer (TPE)
• Color: Red
• NEMA Rating: 3R
• Temperature Rating: -40 to 105 degrees C
• Dimensions: 0.86 in diameter x 4.61 in length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E1015-8333
• Manufacturer : Eaton
• Brand : Eaton
• Category : Wiring Devices
• Item Subcategory : Single pole devices
• Type : Non-vulcanized
• Voltage : 600 V
• Amperage : 150 A
• Terminal Connection : Set screw
• Diameter : 0.86 in
• Wire : #8-#4 AWG
• Nema Rating : 3R
• Operating Temperature Maximum Celsius : -40 to 105 degrees C
• Shipping Dimensions : 0.86 in diameter x 4.61 in length
• Material : Thermoplastic elastomer (TPE)
• Color : Red
• Contact material : Brass
• Gender : Female

Product Data

• UPC : 662275128027
• GTIN : 00662275000000
• Dimensions : 4.61 in x 0.86 in x 0.86 in (Length/Depth x Height x Width)
• Weight : 0.3 lb
