E1015-625 - Eaton Wiring Devices Terminal Connector 150A

E1015-625

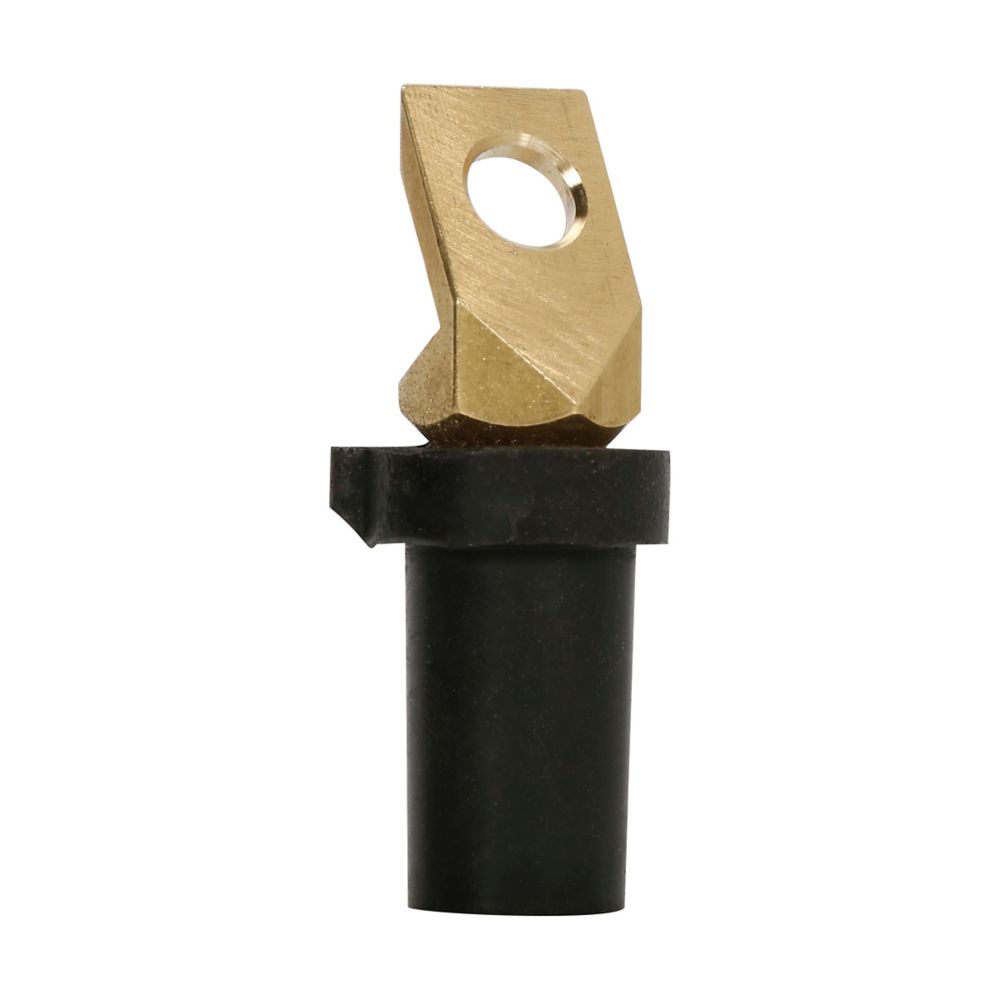

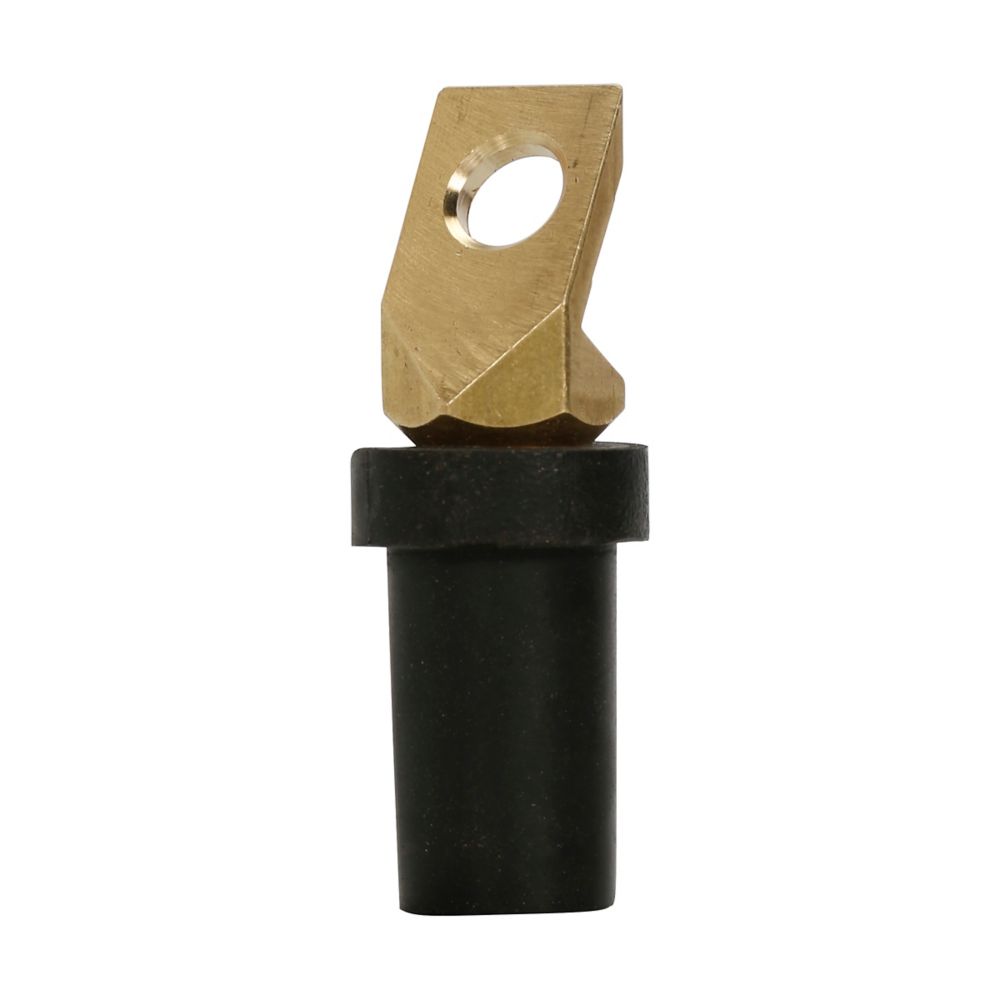

E1015-625 is an Eaton Crouse-Hinds series Cam-Lok J Series single pole terminal connector designed for reliable connectivity in industrial applications. This female terminal connector features elastomeric insulation and is rated for continuous operation up to 150 amperes at 600 volts AC/DC. The connector accepts cable sizes from #8 to #4 AWG and is fully insulated for direct mounting to steel panels with NEMA 3R environmental protection. It features an offset style connection with a rubber terminal and includes an E-Z align drive pin that increases torque and longitudinal strength by 300%. The unit is listed to UL1691 and CSA C22.2 No. 1691-12 standards and operates reliably across a wide temperature range. Key Specifications

• Part Number: E1015-625
• Manufacturer: Eaton
• Voltage Rating: 600 V
• Amperage: 150 A
• Cable Size: #8-#4 AWG
• Gender: Female
• Connection Style: Offset
• Insulation Material: Elastomeric/Rubber
• Operating Temperature: -40°C to 105°C
• Environmental Rating: NEMA 3R
• Certifications: UL1691, CSA C22.2 No. 1691-12

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E1015-625
• Manufacturer : Eaton
• Brand : Eaton
• Category : Wiring Devices
• Item Subcategory : Single pole devices
• Voltage : 600 V
• Amperage : 150 A
• MCM Size : #8-#4 AWG
• Configuration : Offset
• Nema Rating : NEMA 3R
• Operating Temperature Maximum Celsius : -40°C to 105°C
• Material : Elastomeric/Rubber
• Certifications and compliances : UL1691, CSA C22.2 No. 1691-12
• Color : Black
• Contact material : Brass/Copper
• Gender : Female

Product Data

• UPC : 662275127907
• GTIN : 00662275000000
• Dimensions : 2.51 in x 0.86 in x 0.86 in (Length/Depth x Height x Width)
• Weight : 1 lb
