E1015-1630 - Eaton Wiring Devices Cam-Lok Receptacle 150A

E1015-1630

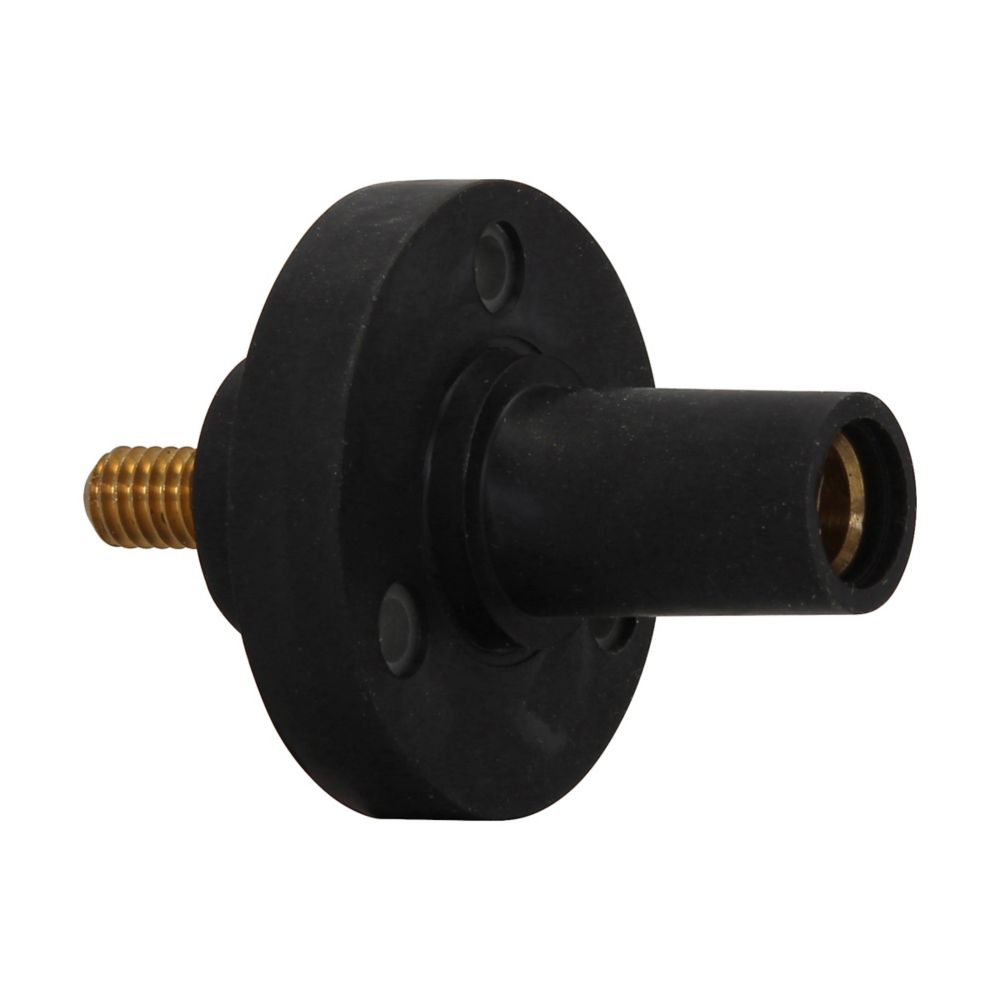

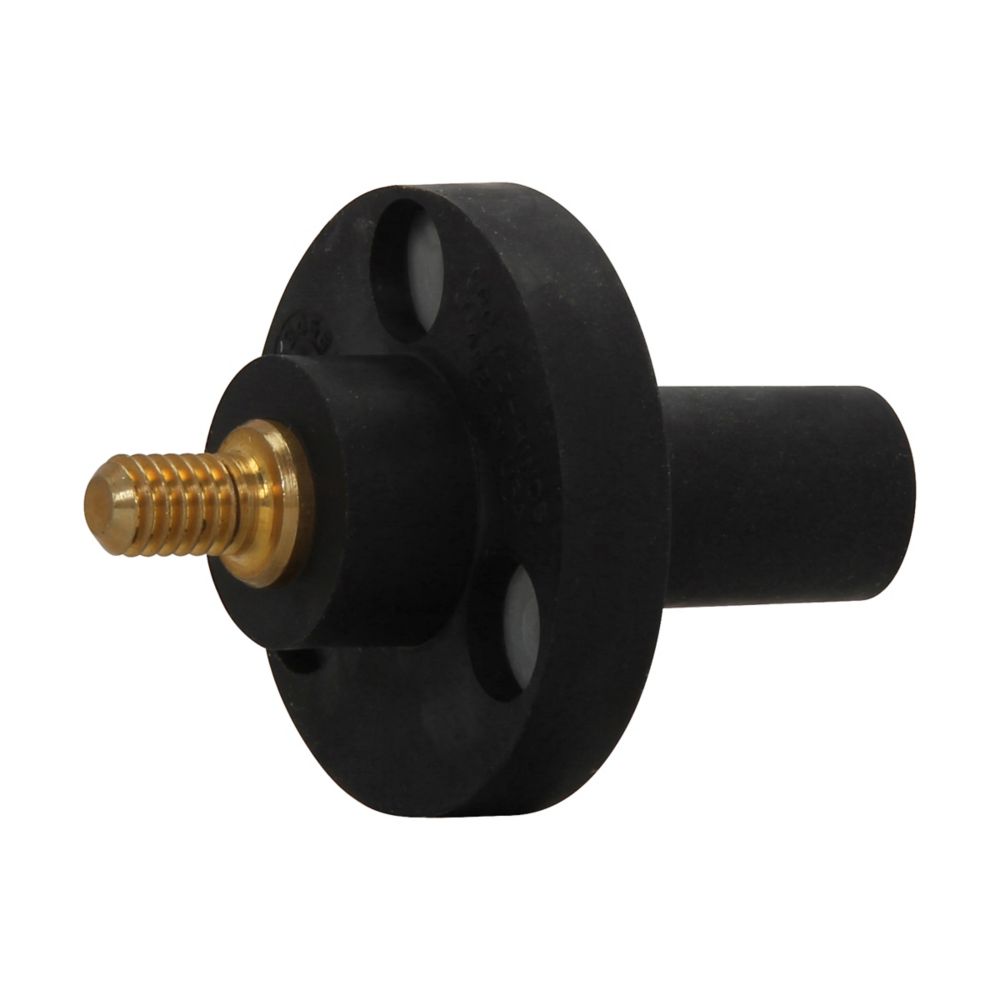

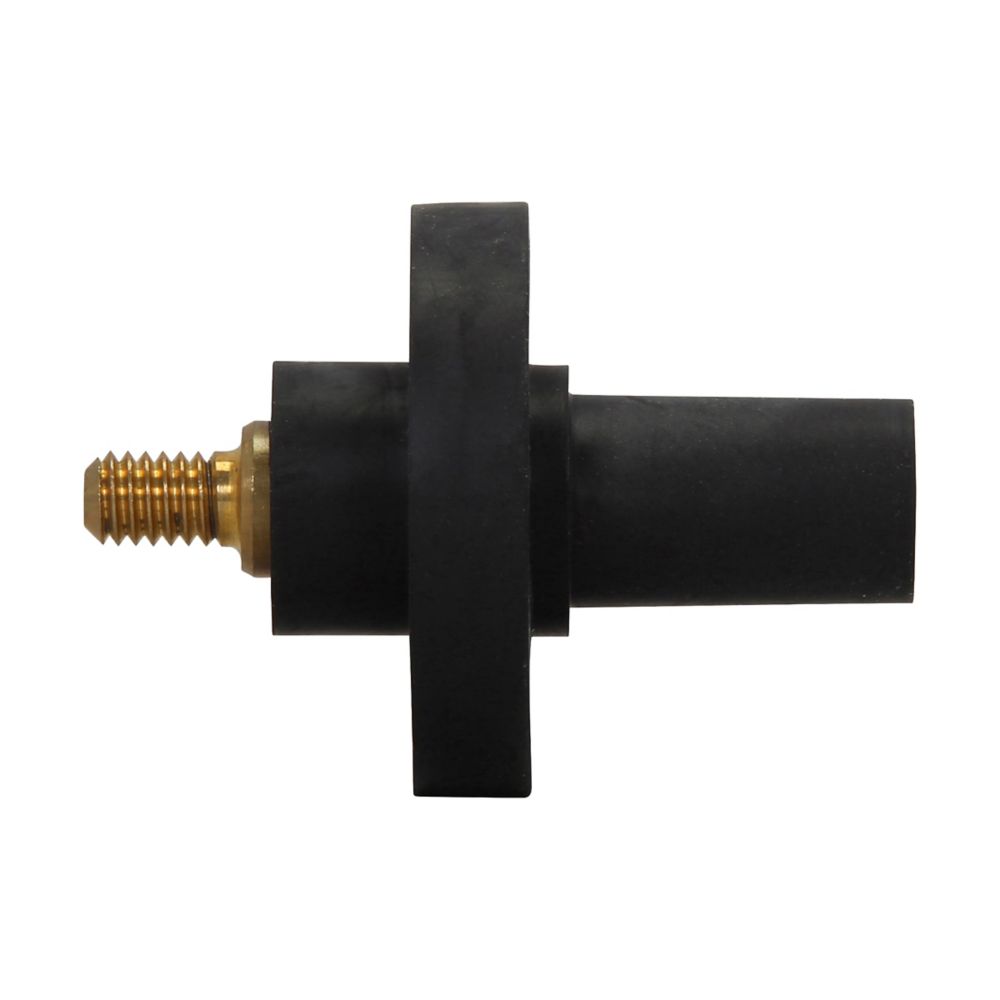

E1015-1630 is an Eaton Crouse-Hinds Cam-Lok J-Series single pole female receptacle designed for quick disconnect power systems in indoor and outdoor applications. This threaded stud receptacle features a double cam principle that provides a positive, vibration-proof connection with self-compensating wear characteristics and no moving contact surfaces. The connector accepts cable sizes #8 to #4 AWG and is rated for 600V AC/DC with continuous amperage up to 150A. It is constructed with thermoplastic elastomer (TPE) insulation material and meets NEMA 3R rating with UL1691 and CSA C22.2 No.1691-12 certifications. Operating temperature range is -40°C to 105°C. Key Specifications

• Part Number: E1015-1630
• Manufacturer: Eaton
• Voltage Rating: 600 V AC/DC
• Amperage: 150 A
• Wire Size: 8-4 AWG
• Connection Type: Threaded Stud
• Gender: Female
• Material: Thermoplastic Elastomer (TPE)
• NEMA Rating: NEMA 3R
• Operating Temperature: -40°C to 105°C
• Certifications: UL1691, CSA C22.2 No.1691-12

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E1015-1630
• Manufacturer : Eaton
• Brand : Eaton
• Category : Wiring Devices
• Item Subcategory : Single pole devices
• Voltage : 600 V AC/DC
• Amperage : 150 A
• Terminal Connection : Threaded Stud
• Wire : 8-4 AWG
• Nema Rating : NEMA 3R
• Operating Temperature Maximum Celsius : -40°C to 105°C
• Material : Thermoplastic Elastomer (TPE)
• Color : White
• Gender : Female

Product Data

• UPC : 662275127082
• GTIN : 00662275000000
• Dimensions : 2.54 in x 1.88 in x 1.88 in (Length/Depth x Height x Width)
• Weight : 1 lb
