Product Info
- Manufacturer:Eaton
Description
E1012-8387

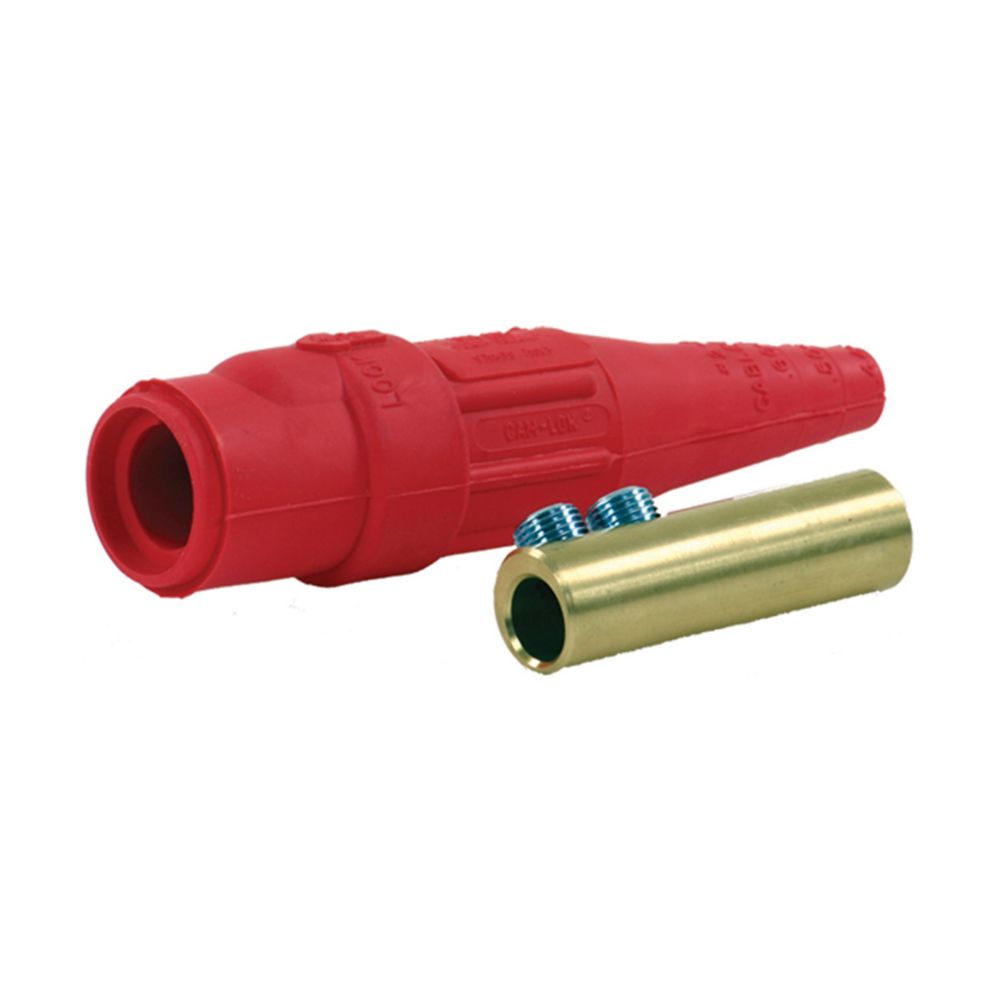

E1012-8387 is an Eaton Crouse-Hinds Cam-Lok F Series single-pole female plug connector designed for industrial power distribution and welding applications. This connector features a double cam principle for vibration-proof connections and is self-compensating for wear with no moving contact surfaces to eliminate arcing or burning. The unit accepts cable sizes 2/0 to 4/0 AWG and utilizes brass contacts with double set screw connection type. It is insulated with reinforced thermoplastic material and rated for NEMA 3 environmental protection. Key Specifications
- Part Number: E1012-8387
- Manufacturer: Eaton
- Voltage: 120 V
- Amperage: 315 A continuous, 550 A intermittent
- Cable Size: 2/0-4/0 AWG
- Connection Type: Double set screw
- Contact Material: Brass
- Insulation Material: Reinforced thermoplastic
- Temperature Rating: -40 to 105 degrees C
- NEMA Rating: 3
- Gender: Female
Specifications
- Part Number: E1012-8387
- Manufacturer : Eaton
- Brand : Eaton
- Category : Wiring Devices
- Item Subcategory : Single pole devices
- Voltage : 120 V
- Amperage : Up to 315A Continuous, 550A Intermittent
- MCM Size : 2/0-4/0 AWG
- Nema Rating : 3
- Amperage Maximum : 315 A
- Amperage Minimum : 550 A
- Insulation Temperature : -40 to 105 degrees C
- Installation Type : Double set screw
- Material : Reinforced thermoplastic
- Color : Black
- Contact material : Brass
- Gender : Female
Product Data
- UPC : 662275126610
- GTIN : 00662275000000
- Dimensions : 6.06 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 1 lb
