- Manufacturer:Eaton
Description
E1012-8350

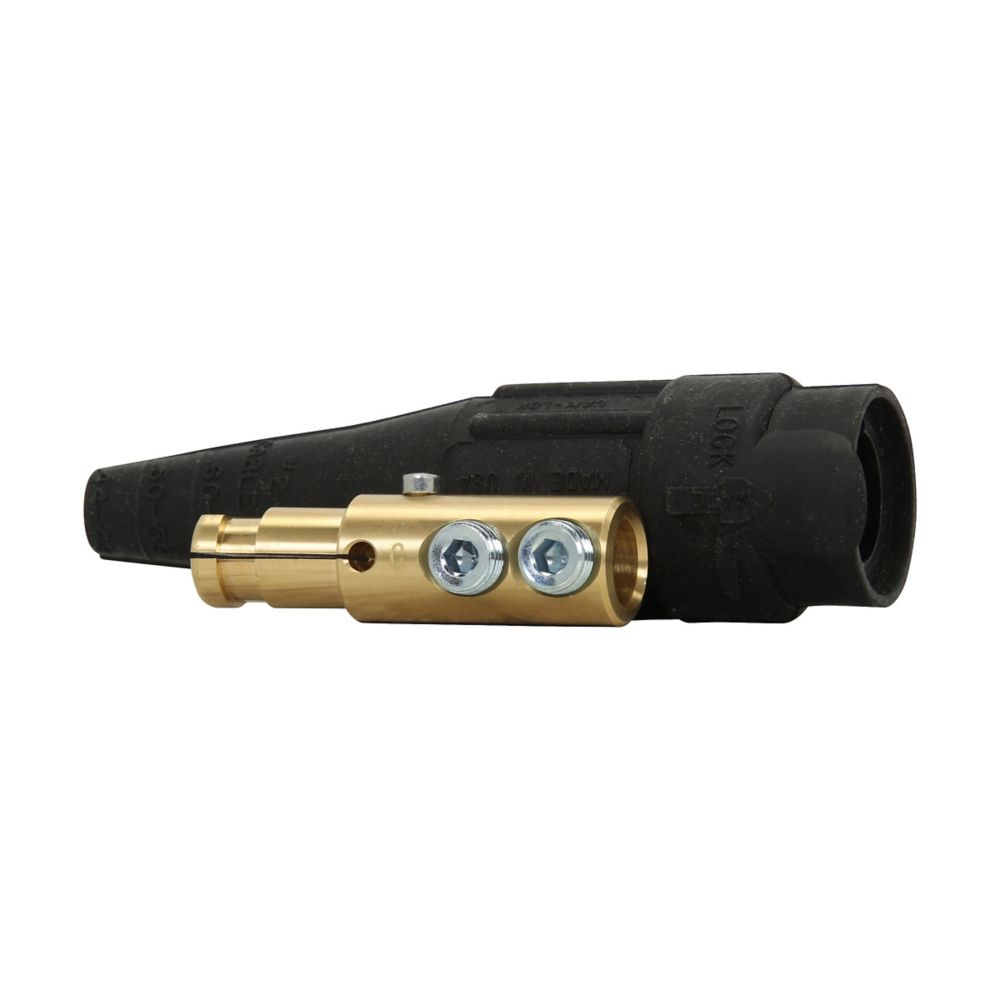

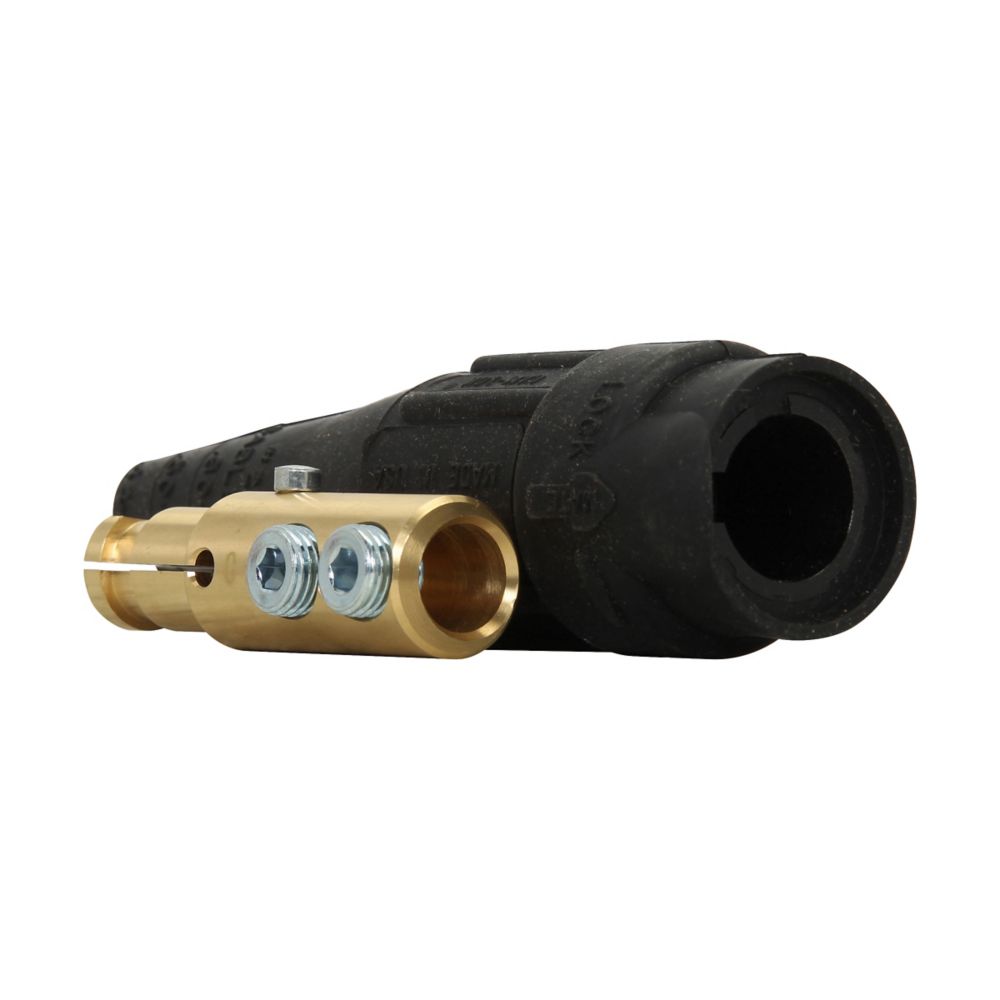

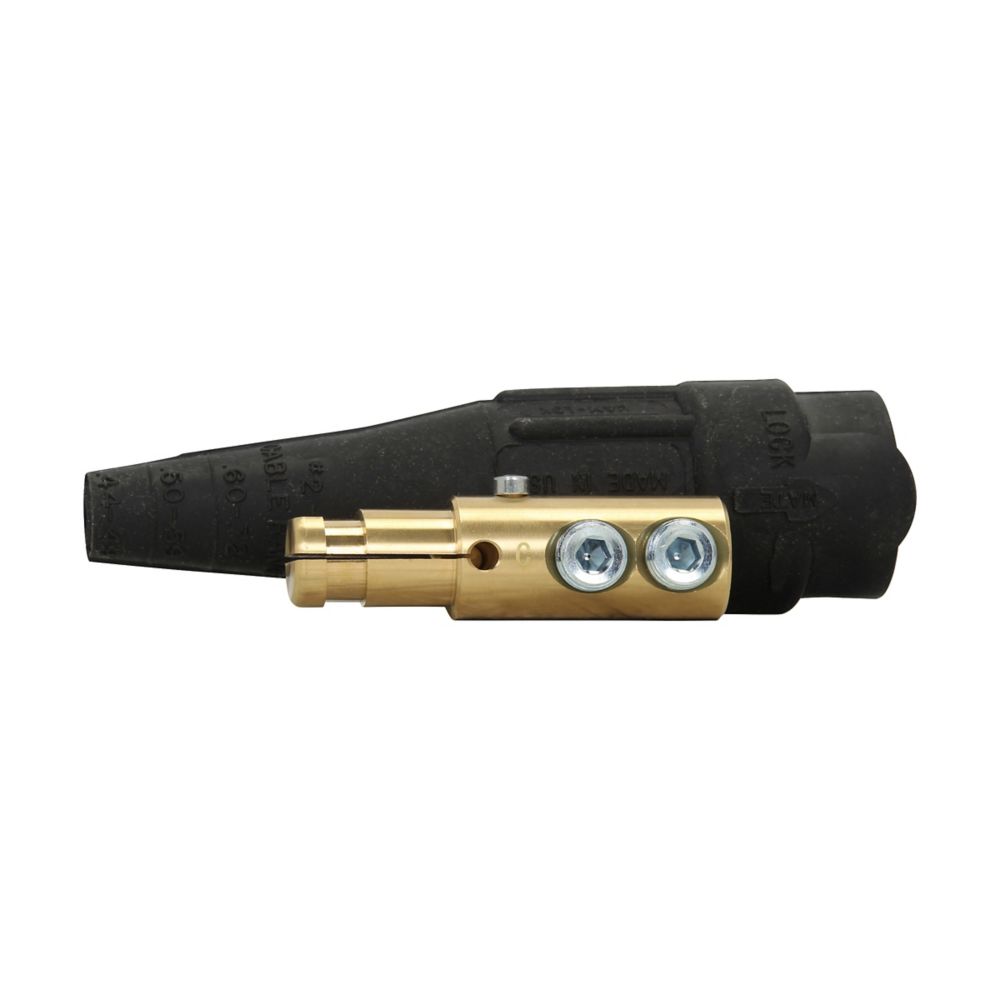

E1012-8350 is an Eaton Crouse-Hinds Cam-Lok F Series single pole plug designed for industrial power distribution and welding applications. This connector features a double cam principle for vibration-proof connections and is self-compensating for wear with no moving contact surfaces. The plug accepts cable sizes #2 AWG to 4/0 AWG and is rated for continuous and intermittent duty cycles. It is constructed with brass contacts and reinforced thermoplastic insulation, providing water-tightness and safety in harsh environments. The connector is ideal for welding power supplies, distribution panels, patch panels, and heat treating applications. Key Specifications
- Part Number: E1012-8350
- Manufacturer: Eaton
- Voltage: 120 V AC
- Amperage: 315 A continuous, 550 A intermittent
- Cable Size: #2-2/0 AWG
- NEMA Rating: 3R
- Contact Material: Brass
- Insulation Material: Reinforced Thermoplastic
- Temperature Rating: -40°C to 105°C
- Gender: Male
- Connection Type: Double set screw
Specifications
- Part Number: E1012-8350
- Manufacturer : Eaton
- Brand : Eaton
- Category : Wiring Devices
- Item Subcategory : Single pole devices
- Voltage : 120 V AC
- Amperage : 315 A
- Wire : #2-2/0 AWG
- Nema Rating : 3R
- Amperage Maximum : 550 A
- Insulation Temperature : -40°C to 105°C
- Installation Type : Double set screw
- Material : Reinforced Thermoplastic
- Color : Black
- Contact material : Brass
- Gender : Male
Product Data
- UPC : 662275126559
- GTIN : 00662275000000
- Dimensions : 5.28 in x 1.63 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 1 lb
