Product Info
- Manufacturer:Eaton
Description
E-Z200072-15

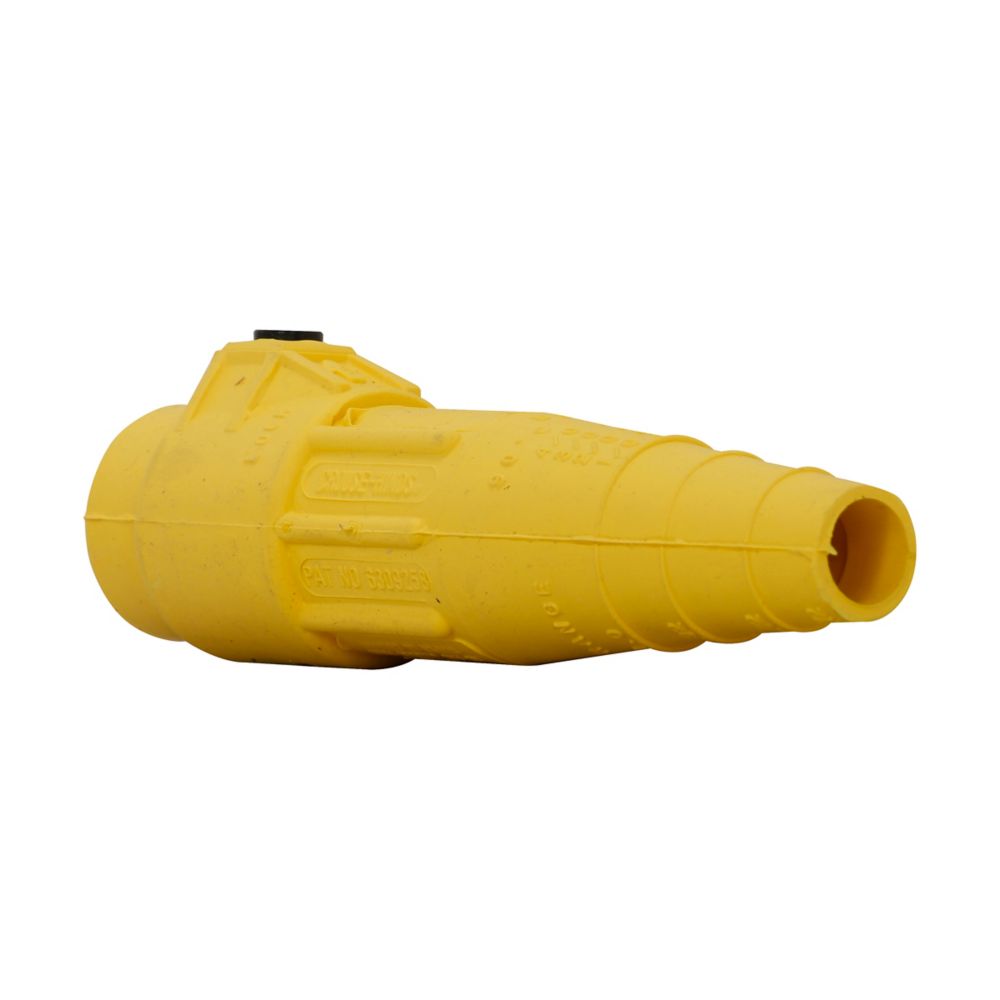

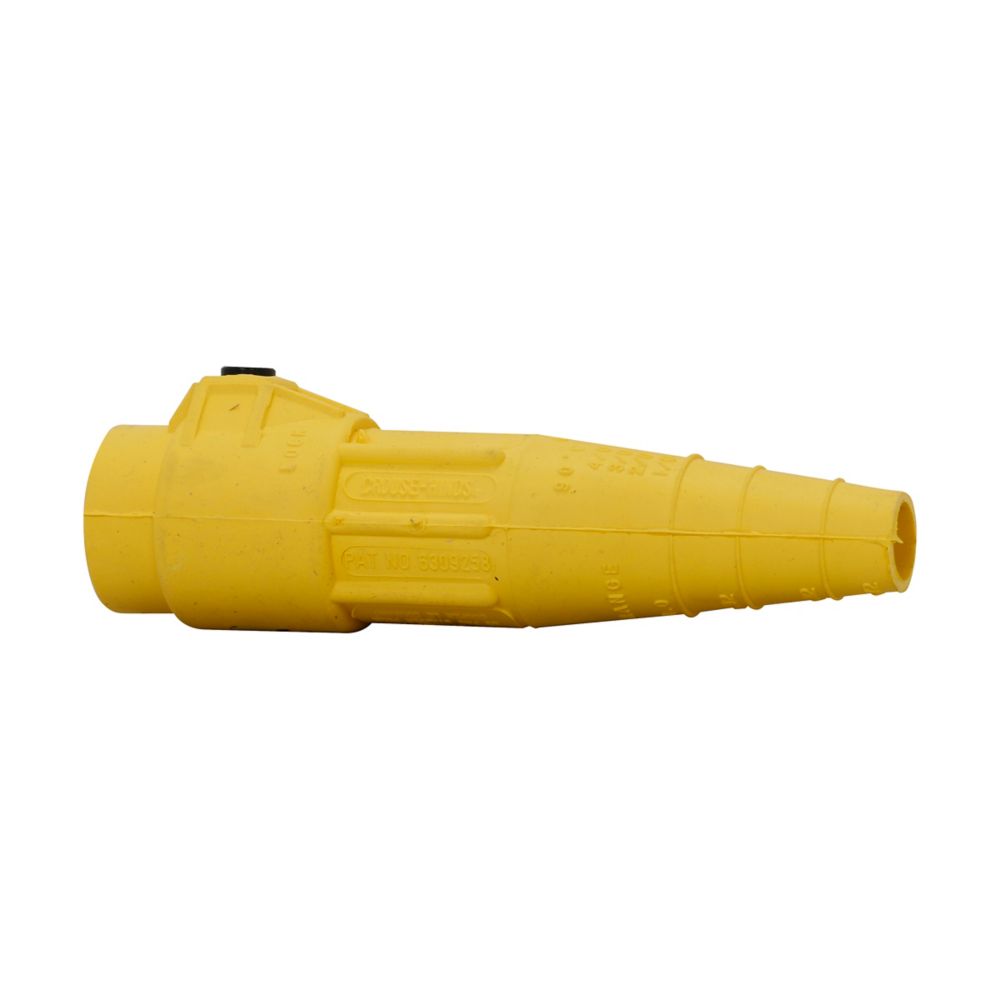

E-Z200072-15 is an Eaton Crouse-Hinds Cam-Lok Standard Series plug insulator designed for industrial power distribution applications. This single-pole connector features a reinforced thermoplastic insulator and is rated for continuous operation up to 315 amperes at 120 volts AC, with intermittent capacity of 550 amperes. The unit accepts cable sizes from #8 AWG to 4/0 and operates reliably across a wide temperature range. Key Specifications
- Part Number: E-Z200072-15
- Manufacturer: Eaton
- Voltage: 120 V
- Amperage: 315 A continuous, 550 A intermittent
- Cable Size: #8 AWG - 4/0
- Insulator Material: Reinforced thermoplastic
- Temperature Rating: -40°C to 105°C
- NEMA Rating: 3R
- Certifications: UL1691, CSA C22.2 No. 1691-12, CSA C22.2 No. 182.3 LR13963
Specifications
- Part Number: E-Z200072-15
- Manufacturer : Eaton
- Brand : Eaton
- Category : Wiring Devices
- Item Subcategory : Single pole devices
- Type : Non-vulcanized
- Voltage : 120 V
- Amperage : 315 A
- MCM Size : #8 AWG - 4/0
- Nema Rating : 3R
- Amperage Maximum : 550 A
- Insulation Temperature : -40°C to 105°C
- Material : Reinforced thermoplastic
- Color : Red
- Contact material : Brass or copper
- Gender : Female
Product Data
- UPC : 662275121813
- GTIN : 00662275000000
- Dimensions : 6.76 in x 1.47 in x 1.47 in (Length/Depth x Height x Width)
- Weight : 0.15 lb
