DXA-EXT-3RO - Eaton Expansion Module for DA1 Variable Frequency Drive, 3 Relay Outputs, UL Listed

DXA-EXT-3RO

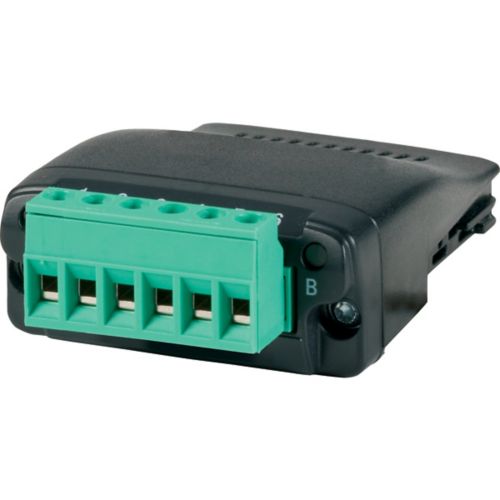

DXA-EXT-3RO is an Eaton expansion module designed as a cascade control plug-in option for DA1 variable frequency drives.This expansion module provides 3 relay outputs (normally open) rated at 250 V AC max 6 A and 30 V DC max 5 A, enabling enhanced control capabilities for DA1 drives. It is UL listed and intended for use with Eaton DA1 VFDs, featuring a compact design with dimensions approximately 2.75 in depth, 1.89 in width, and 0.91 in height.

• Compatible with Eaton DA1 variable frequency drives
• 3 relay outputs (N/O)
• Output rating: 250 V AC max 6 A / 30 V DC max 5 A
• UL Listed certification
• Cascade control plug-in option module
• Compact size: 2.75 in depth x 1.89 in width x 0.91 in height
• Lightweight: 0.066 lb
• Ambient operating temperature minimum -10 °C
• Designed for motor control applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DXA-EXT-3RO
• Manufacturer : Eaton
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Variable Frequency Drive
• Phase : 3
• Poles : 3

Product Data

• UPC : 078668585996
• Dimensions : 2.75 in x 0.91 in x 1.89 in (Length/Depth x Height x Width)
• Weight : 0.066
