DTU363DS - Square D 100A 600V 3-Pole Manual Transfer Switch NEMA 4X Stainless Steel Enclosure

DTU363DS

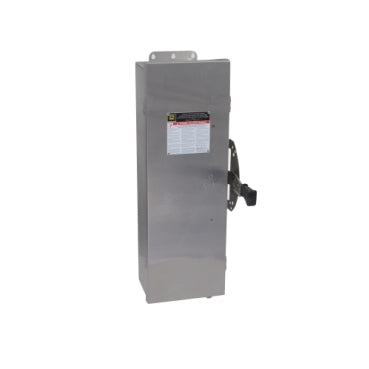

DTU363DS is a Square D manual transfer switch designed for reliable power transfer with a 100 ampere rating and 600 volt capacity in a 3-pole configuration.This non-fusible double throw switch features a NEMA 4X stainless steel enclosure suitable for harsh environments. It supports 100A continuous current, 600 VAC/VDC voltage, and is UL 98, CSA, and NOM certified. The switch is rated for 20 HP at 240 VAC single phase and 40 HP at 480/600 VAC single phase. Dimensions are approximately 11.5" W x 7.12" D x 30.26" H.

Key Specifications
• Manufacturer: Square D
• Part Number: DTU363DS
• Amperage: 100A
• Voltage: 600 VAC/VDC
• Poles: 3
• Mounting Type: Manual Transfer Switch
• Interrupt Rating: Not fusible
• Enclosure: NEMA 4X Stainless Steel
• Horsepower Rating: 20 HP at 240 VAC, 40 HP at 480/600 VAC (1 Phase)
• Certifications: UL 98, CSA, NOM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DTU363DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : DTU
• Type : DTU
• Voltage : 600VAC/VDC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kAIC at 600V
• Wire : 3
• Configuration : Single
• Nema Rating : 4, 4X, 5
• Circuit Breaker Mounting Style : Surface
• Metal Type : Stainless Steel
• Duty : Heavy Duty
• Enclosure Type : 304 Stainless Steel

Product Data

• UPC : 078590130781
• GTIN : 00785901000000
• Country of Origin : United States
• Dimensions : 30.26 in (768.60 mm) x 11.5 in (292.1 mm) x 7.12 in (180.85 mm) (Height x Width x Depth)
• Weight : 42.699
• Certification : UL
