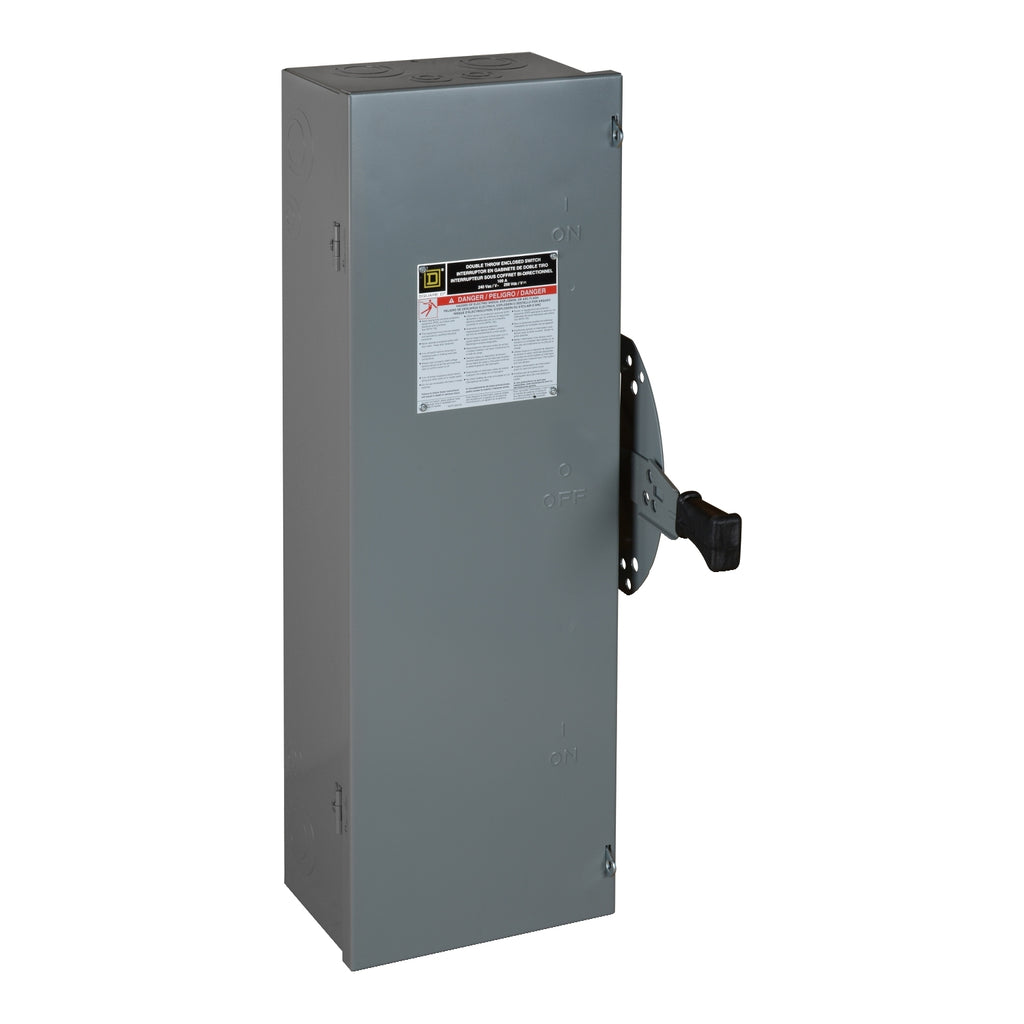

DTU223 - Square D 100A 240VAC 2-Pole Non-Fusible Double Throw Safety Switch NEMA 1 Surface Mount

DTU223

DTU223 is a Square D 100 Amp, 240VAC, 2-pole non-fusible double throw safety switch designed for reliable manual transfer applications.This switch features a NEMA 1 steel enclosure suitable for indoor surface mounting. It supports 15 HP at 240 VAC single-phase motors and 20 HP at 250 VDC, with UL and UL Canada approvals. The device is built for safe and efficient power switching with a 2-pole configuration and a 100 Amp interrupt rating.

Key Specifications
• Amperage: 100 Amps
• Voltage: 240 VAC, 250 VDC
• Poles: 2
• Mounting Type: Surface Mount
• Interrupt Rating: 100 Amps
• Enclosure Type: NEMA 1 Steel
• Switch Type: Non-Fusible Double Throw
• Horsepower Rating: 15 HP at 240 VAC, 20 HP at 250 VDC
• Certifications: UL, UL Canada
• Manufacturer: Square D
• Series/Frame: DTU
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: DTU223
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : DTU
• Voltage : 240 AC/DC
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 200kA@240V
• Fuse Class : H, K, R, J, T
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : RLF



Product Data

• UPC : 78590130864
• GTIN : 00785901308645
• Country of Origin : United States
• Dimensions : 29.94 in (760.48 mm) x 11.96 in (303.78 mm) x 6.93 in (176.02 mm) (Height x Width x Depth)
• Weight : 44
• Certification : UL listed
