Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
DTNF367R

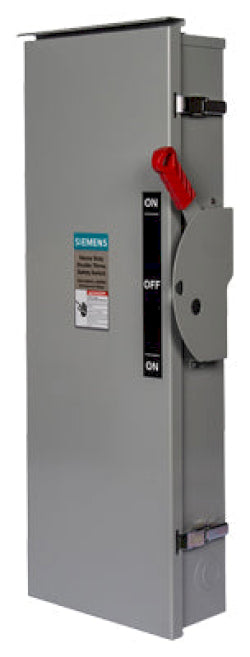

DTNF367R is a Siemens heavy duty double throw safety switch rated for 800 amps and 600 volts with a 3-pole configuration and NEMA 3R enclosure.DTNF367R features a non-fusible design with a Type VBII double throw mechanism, suitable for load transfer between power sources. It supports 3-wire operation at 60 Hz frequency and has a mechanical lug electrical connection. The switch is rated for 3500 mechanical operating cycles and has a 200kA interrupt rating at 600V. Constructed with steel housing and 304 stainless steel enclosure, it is UL98 certified and designed for outdoor use with a temperature range of -20°F to 120°F.
- Key Specifications
- Amperage: 800 A
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3
- Mounting Type: Surface mount with 2-3 point holes
- Interrupt Rating: 200 kA at 600 V
- Series/Frame: Type VBII, DTNF
- Trip Unit: Double Throw (TPDT) contact form
- Enclosure Type: NEMA 3R, 304 Stainless Steel
- Frequency: 60 Hz
- Mechanical Life: 3500 operating cycles
- Certifications: UL98
Specifications
- Part Number: DTNF367R
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Family : VBII Series
- Type : DTNF
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
- Compatible Frames : MAP
Product Data
- UPC : 783643454415
- GTIN : 00783643454415
- Country of Origin : Mexico
- Dimensions : 75.984 x 44.882 x 18.898 inch
- Weight : 489.916
