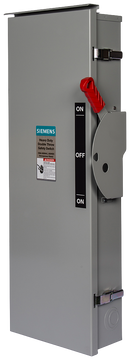

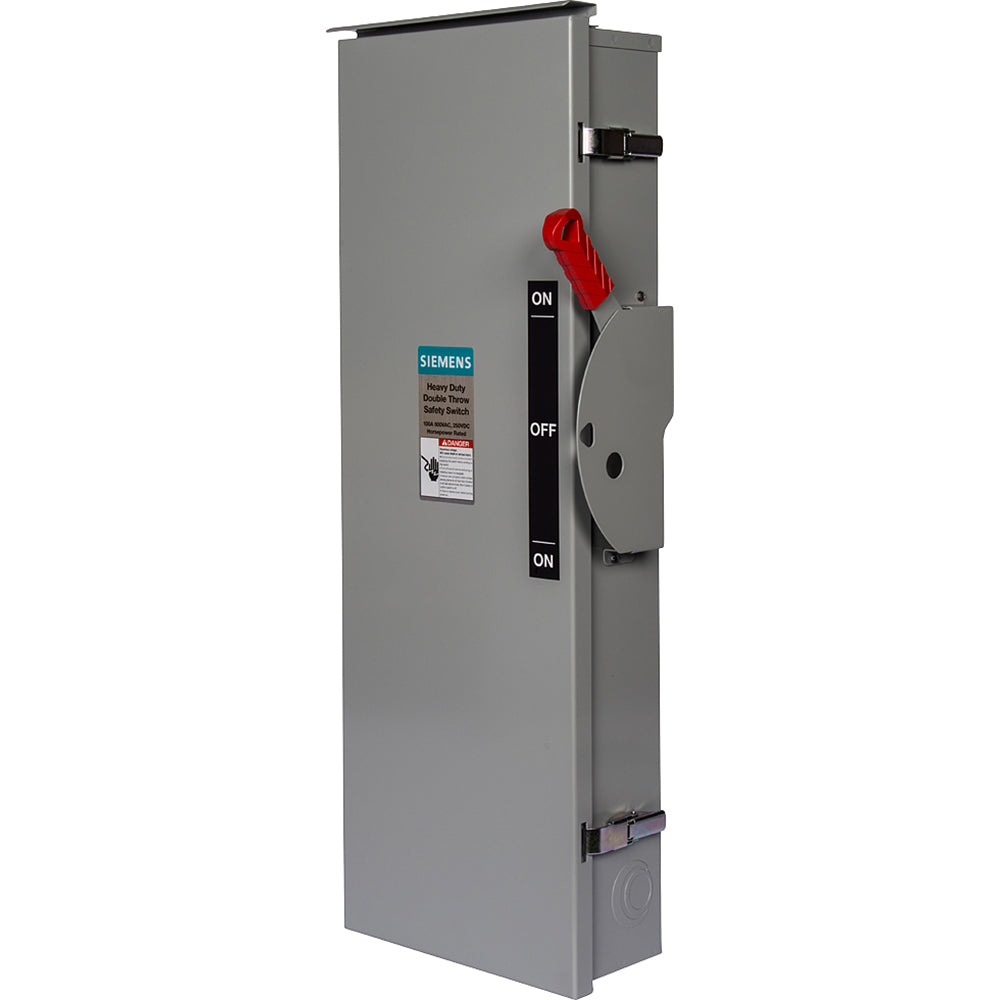

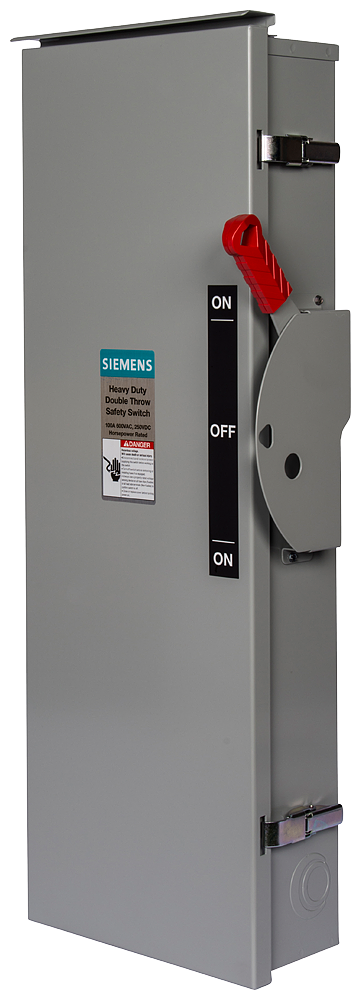

DTNF366R - Siemens 600 Amp 600 VAC 3-Pole NEMA 3R Heavy Duty Non-Fusible Safety Switch

DTNF366R

DTNF366R is a Siemens heavy duty non-fusible safety switch rated for 600 amps and 600 VAC with 3 poles and NEMA 3R enclosure.DTNF366R features a triple-pole double-throw (TPDT) contact form, suitable for surface mounting, with a 200 kA short circuit current rating and a horsepower rating of 350 HP. It is designed for heavy industrial applications requiring reliable disconnect and safety switching. The enclosure is steel with NEMA 3R rating for outdoor use, and the switch operates at 60 Hz frequency.

Key Specifications
• Amperage Rating: 600 A
• Voltage Rating: 600 VAC / 600 VDC
• Number of Poles: 3
• Contact Form: TPDT (Triple Pole Double Throw)
• Enclosure Type: NEMA 3R
• Mounting Type: Surface Mount
• Short Circuit Current Rating: 200 kA
• Horsepower Rating: 350 HP
• Frequency Rating: 60 Hz
• Material: Steel
• Type: Heavy Duty Non-Fusible
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DTNF366R
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Family : VBII Series
• Type : DTNF
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13–158 °F (-25–70 °C)
• Fuse Class : R
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : MAP

Product Data

• UPC : 783643454392
• GTIN : 00783643454392
• Country of Origin : Mexico
• Dimensions : 72.835 x 44.882 x 18.898 inch
• Weight : 320.662
• Temp Rating : -13–158 °F (-25–70 °C)
