Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
DTNF324R

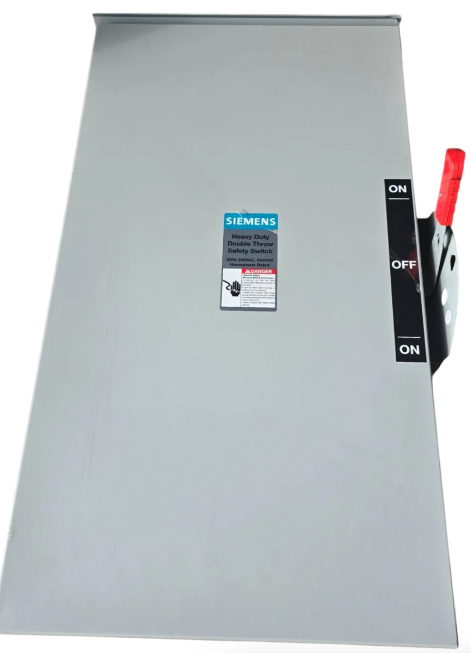

DTNF324R is a Siemens 200 Amp, 240 Volt, 3-Pole Double Throw Non-Fusible Safety Switch designed for heavy-duty power distribution applications.This switch features a Type 3R NEMA enclosure suitable for outdoor use, mechanical lug connections, and a double throw actuating element for load transfer between power sources. It is UL98 certified and built with a steel housing for durability. The switch supports 50/60 Hz supply frequency and has a mechanical service life of approximately 8000 operating cycles.
- Amperage: 200 A
- Voltage: 240 VAC
- Poles: 3
- Mounting Type: Surface mount
- Interrupt Rating: Heavy Duty
- Series/Frame: US2 DT Type
- Trip Unit: Non-Fusible
- Enclosure Rating: NEMA 3R (Outdoor)
- Connection Type: Mechanical Lugs
- Material: Steel housing
- Certifications: UL98 Listed
- Mechanical Service Life: 8000 cycles (typical)
Specifications
- Part Number: DTNF324R
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R
- Wire : 3
- Configuration : Single
- Nema Rating : NEMA 3R
- Compatible Frames : MAP
Product Data
- UPC : 783643454187
- Country of Origin : Mexico
- Dimensions : 40.945 x 24.803 x 11.811 inch
- Weight : 77.559
- Certification : UL98
