DTF324 - Siemens 200A 240V 3P Enclosed Double Throw Safety Switch

DTF324

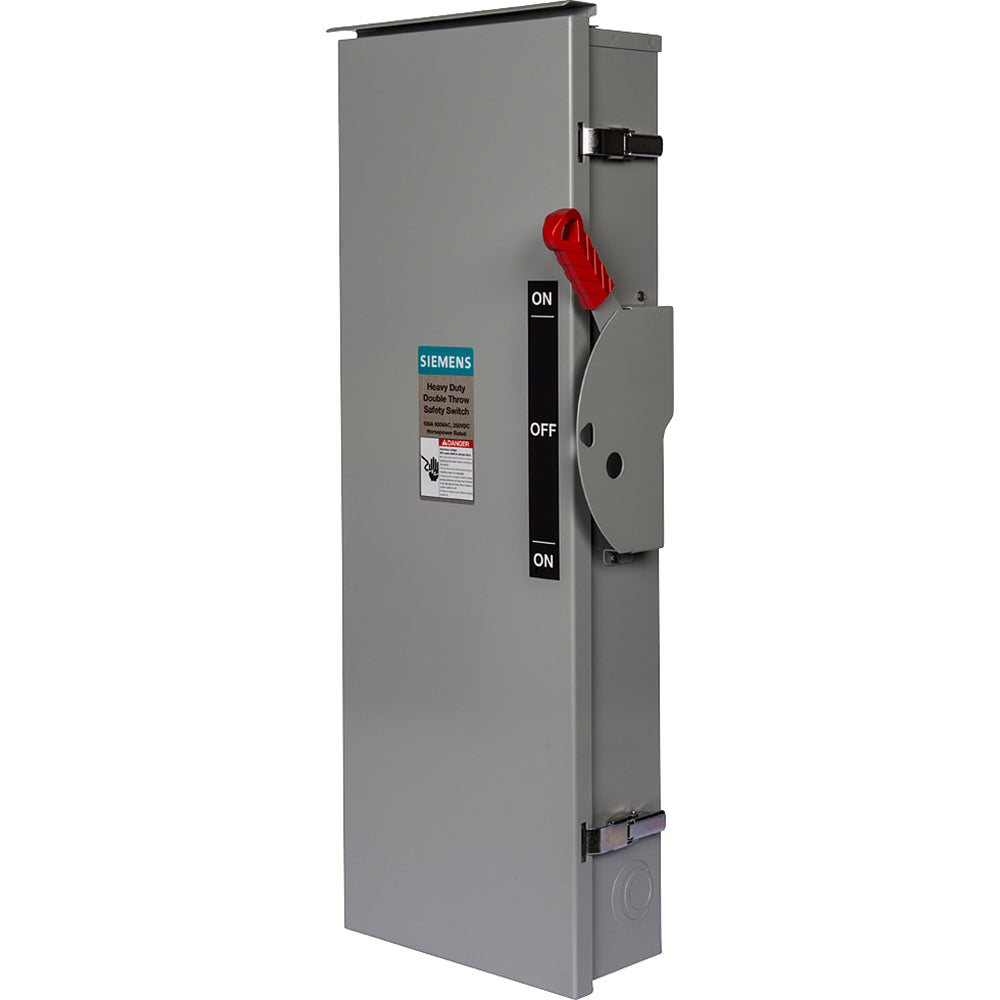

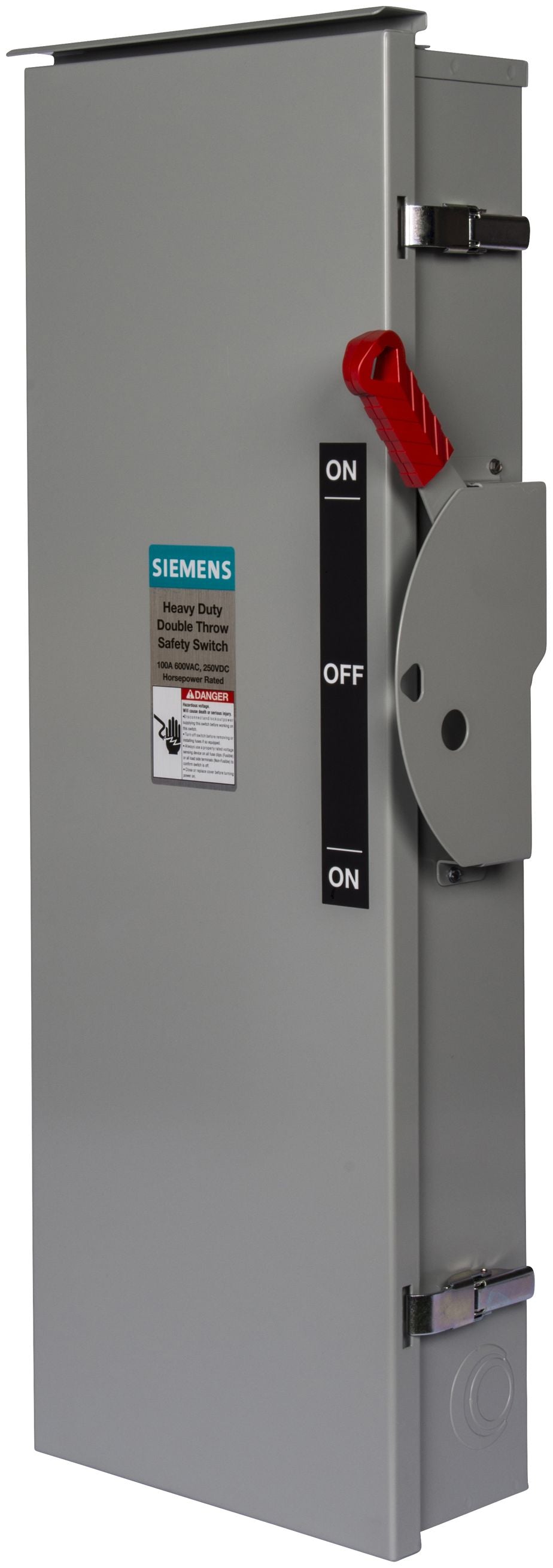

DTF324 is a Siemens enclosed double throw safety switch designed for heavy-duty low voltage circuit protection.

This switch features a 200 ampere rating and is rated for 240 volts AC with three poles. It is constructed with a steel Type 1 enclosure suitable for indoor use and surface mounting. The switch uses mechanical lugs for electrical connection and supports load transfer between power sources. It is UL 98 certified and has a mechanical service life of approximately 8,000 operating cycles. The double throw actuating element allows for reliable switching action within an ambient temperature range of -29°C to 85°C.

Key Specifications
• Amperage: 200 A
• Voltage Rating: 240 V AC
• Number of Poles: 3
• Enclosure Type: Type 1 (Indoor)
• Mounting Type: Surface mount
• Material: Steel
• Actuating Element: Double Throw
• Electrical Connection: Mechanical Lugs
• Certification: UL 98
• Mechanical Service Life: 8,000 cycles
• Ambient Temperature Range: -29°C to 85°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DTF324
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 240 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : MAP

Product Data

• UPC : 783643453852
• GTIN : 00783643453852
• Country of Origin : Mexico
• Dimensions : 26.772 x 11.811 x 55.906 inch
• Weight : 100.2
• Certification : UL98
