2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DT361URK

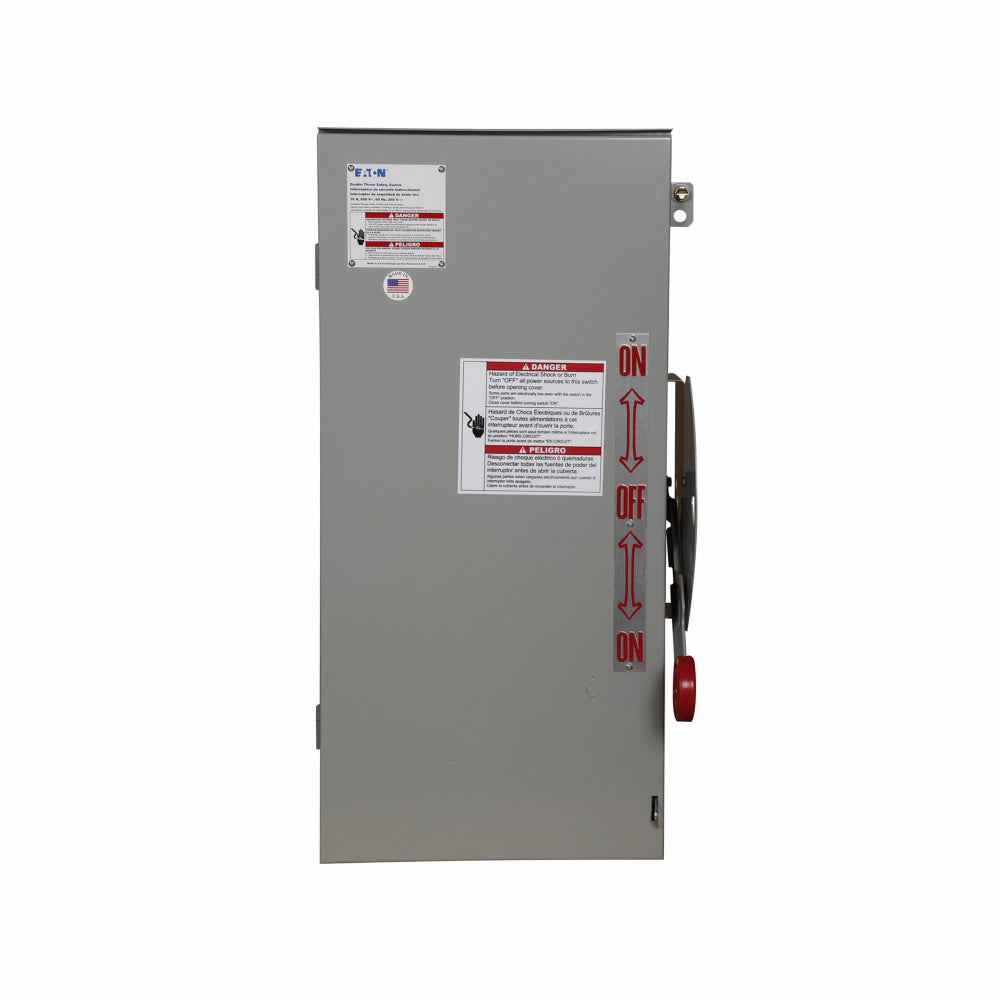

DT361URK is a Cutler Hammer DT Series 30A 600V 3P non-fusible safety switch designed for reliable circuit isolation in industrial and commercial applications. This heavy-duty switch features a NEMA 3R enclosure for outdoor or harsh environments and is constructed with painted galvanized steel for durability. The DT361URK is a three-pole, three-wire, single-throw switch rated for 30A at 600V AC and 250V DC. It is non-fusible, making it suitable for applications where circuit protection is provided by upstream devices. The switch is rated for 100kA interrupting capacity at 600V and is horsepower rated for motor control applications. Its NEMA 3R enclosure provides protection against rain, sleet, and external ice formation.
- Part Number: DT361URK
- Manufacturer: Cutler Hammer
- Series: DT
- Amperage: 30A
- Voltage: 600V AC, 250V DC
- Poles: 3
- Mounting Type: NEMA 3R (outdoor/harsh)
- Interrupt Rating: 100kA @ 600V
- Frame: DT Series
- Non-Fusible
- Three-Wire
- Single-Throw
Specifications
- Part Number: DT361URK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DT Series
- Type : DT
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 100kA@600V
- Configuration : Double
- Nema Rating : NEMA 3R
- Compatible Frames : SGLA
Product Data
- UPC : 782113426365
- GTIN : 00782113426365
- Country of Origin : United States
- Dimensions : 11.19 in x 25.02 in x 11.95 in (Length/Depth x Height x Width)
- Weight : 34
- Certification : UL Listed
