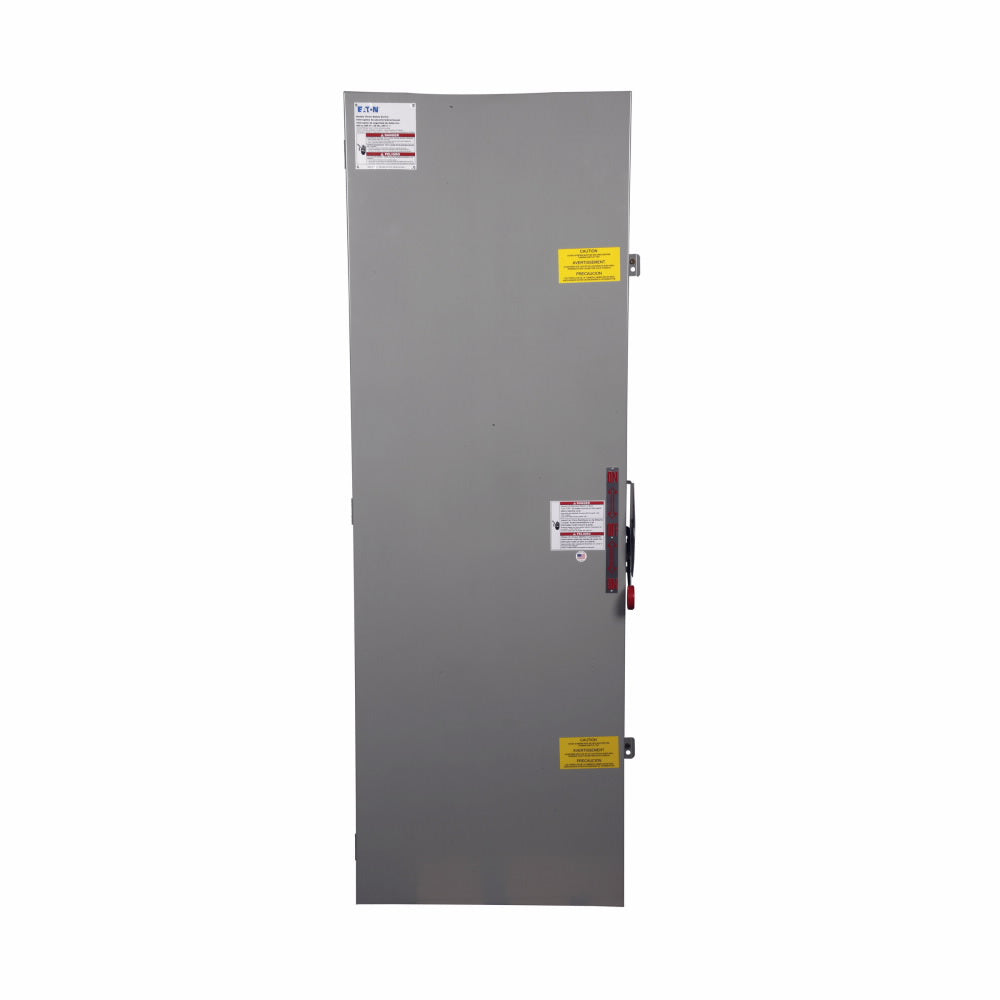

DT326UGK - Cutler Hammer 600A 240V 3P 3-Phase Safety Disconnect Switch NEMA 1

DT326UGK

DT326UGK is a heavy-duty, double-throw, non-fusible safety disconnect switch designed for industrial and commercial power distribution applications. This Cutler Hammer DT Series switch provides reliable circuit isolation for 3-phase systems with a 600A current rating and 240V AC voltage rating. The DT326UGK features a painted steel enclosure with a NEMA 1 rating, making it suitable for indoor use. It is a three-pole, three-wire switch with a 100kA interrupt rating at 240V, and is UL Listed for safety and compliance. The switch is designed for service entrance use and can be equipped with a neutral or ground lug kit as needed.

• 600A Amperage Rating
• 240V AC Voltage Rating
• 250V DC Voltage Rating
• Three-Pole, Three-Wire Configuration
• Double-Throw Operation
• Non-Fusible Design
• NEMA 1 Enclosure
• Painted Steel Enclosure Material
• 100kA Interrupt Rating at 240V
• UL Listed
• Service Entrance Suitable
• DT Series Frame

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DT326UGK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DT Series
• Type : DT
• Voltage : 240
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Configuration : Double
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : SELA

Product Data

• UPC : 782113696454
• GTIN : 00786679047323
• Country of Origin : United States
• Dimensions : 14.12 in x 63.31 in x 24.08 in (Length/Depth x Height x Width)
• Weight : 175
• Certification : UL Listed
