Product Info
- Manufacturer:Eaton
- Sub-Category:Disconnect
Description
DT224URK-NPS

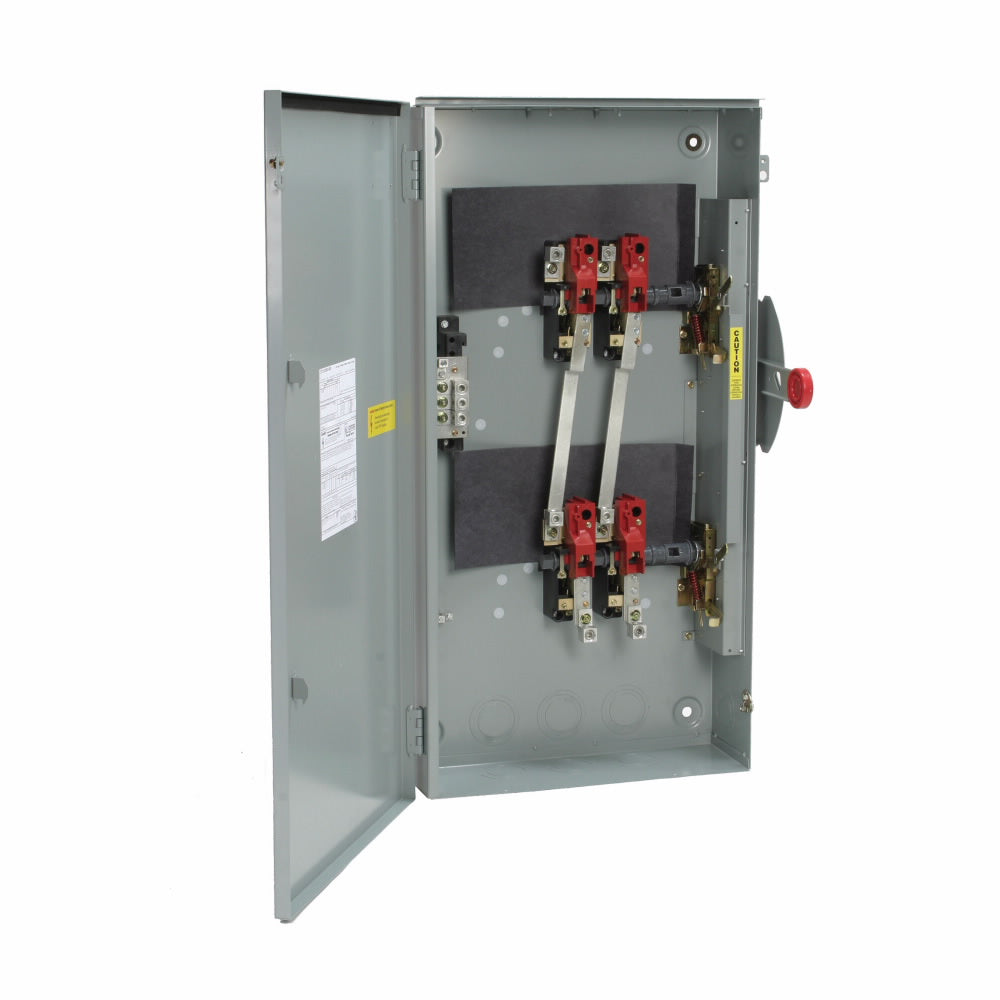

DT224URK-NPS is a general duty double throw safety switch from Eaton Cutler Hammer designed for 200A, 240V applications with 2 poles and neutral included.This non-fusible switch features a compact painted galvanized steel enclosure rated NEMA 3R for rainproof protection. It supports 240 VAC and 250 VDC, suitable for light duty motor circuits and service entrance use. The switch is UL Listed and designed for 1 phase, 3-wire systems with a 15 HP motor rating.
- Key Specifications
- Amperage: 200A
- Voltage: 240 VAC / 250 VDC
- Poles: 2
- Mounting Type: Surface mount, NEMA 3R enclosure
- Interrupt Rating: General duty
- Series/Frame: DT Series Double Throw
- Trip Unit: Non-fusible
- Includes Neutral: Yes
- Phase: Single phase
- Enclosure Material: Painted galvanized steel
- Certifications: UL Listed
- Weight: Approximately 67-80 lbs
Specifications
- Part Number: DT224URK-NPS
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Nema Rating : NEMA 12
- Compatible Frames : THLC
Product Data
- UPC : 782114229262
- GTIN : 00782114000000
- Country of Origin : United States
- Dimensions : 37.25 in x 9.5 in x 19.56 in (Length/Depth x Height x Width)
- Weight : 67
- Certification : UL Listed
