Product Info
- Manufacturer:Crouse-Hinds
- Sub-Category:Pushbutton Cover
Description
DSD919

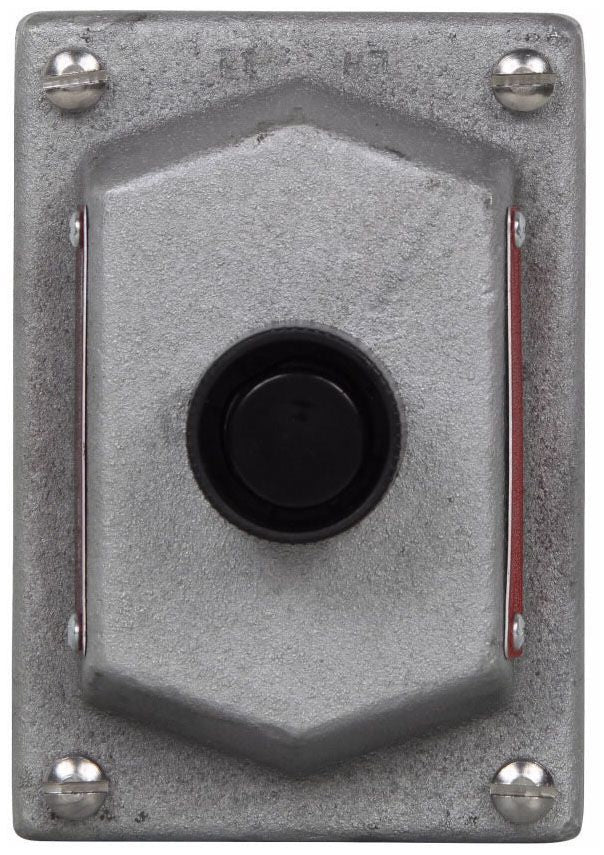

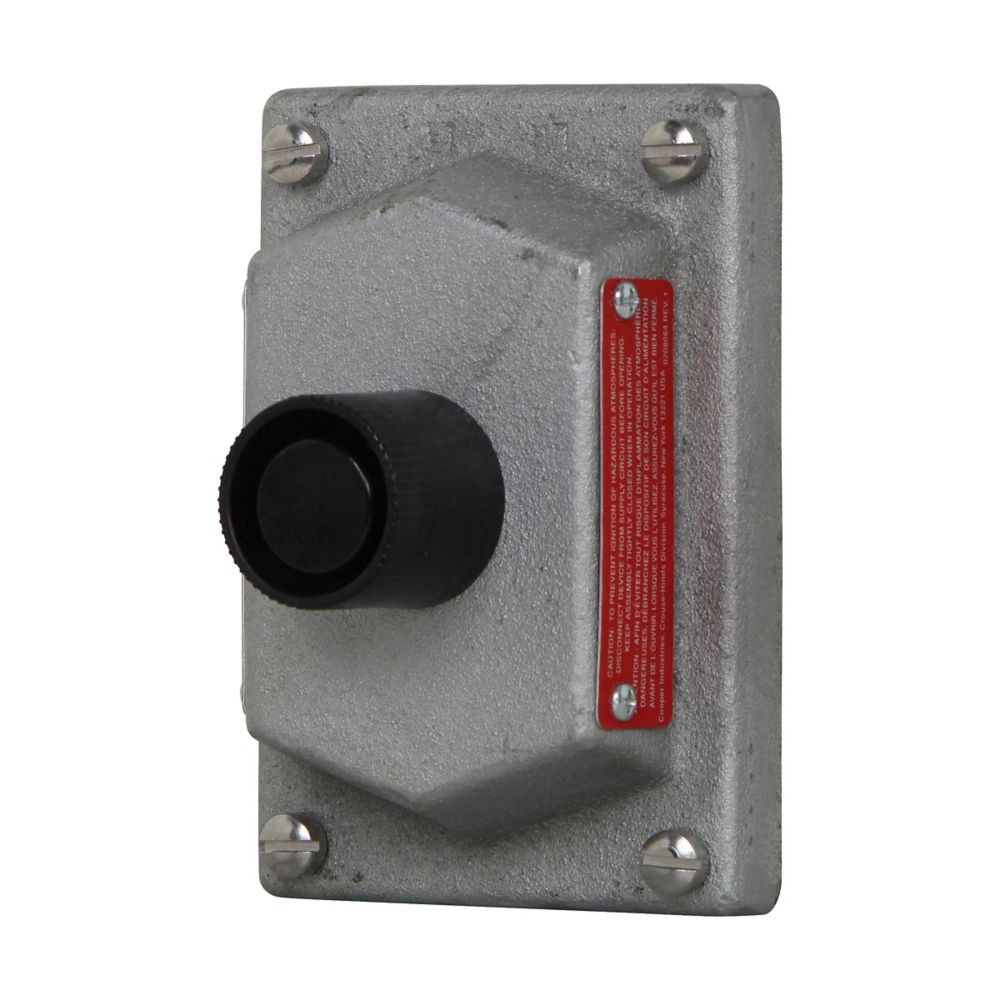

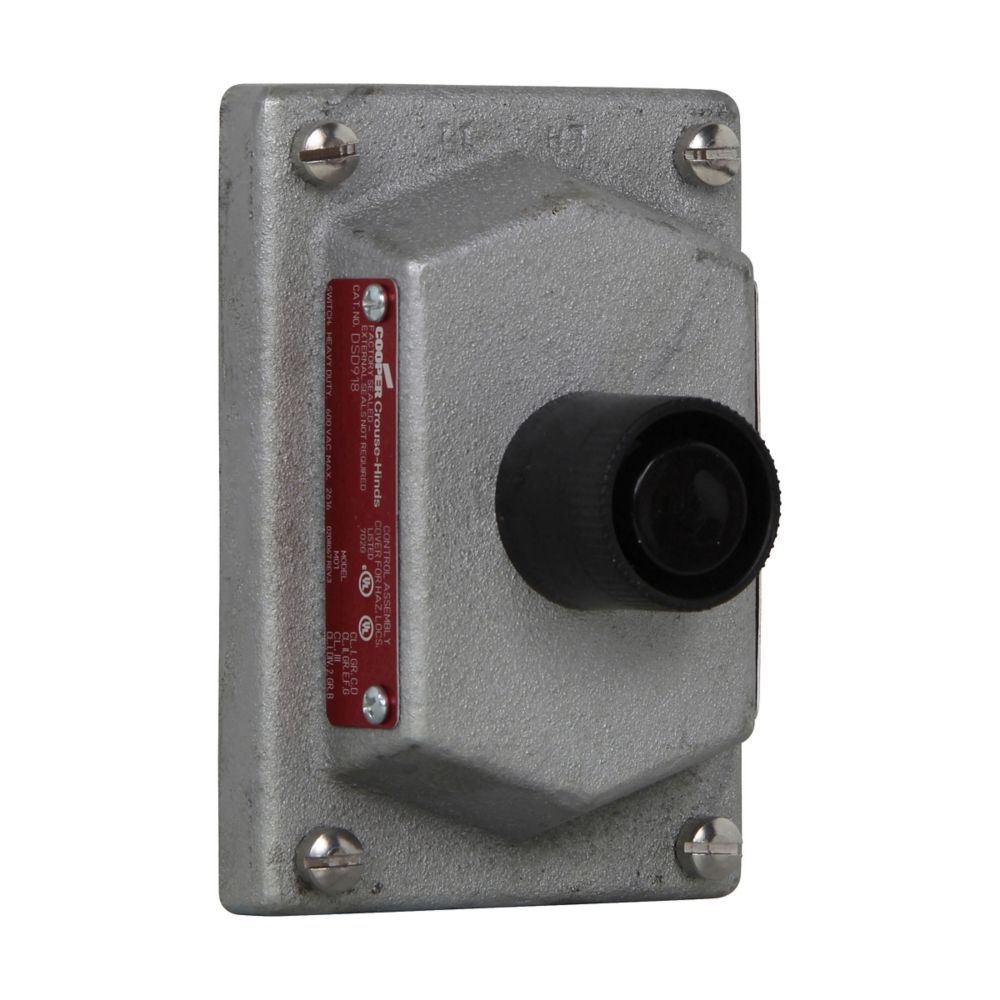

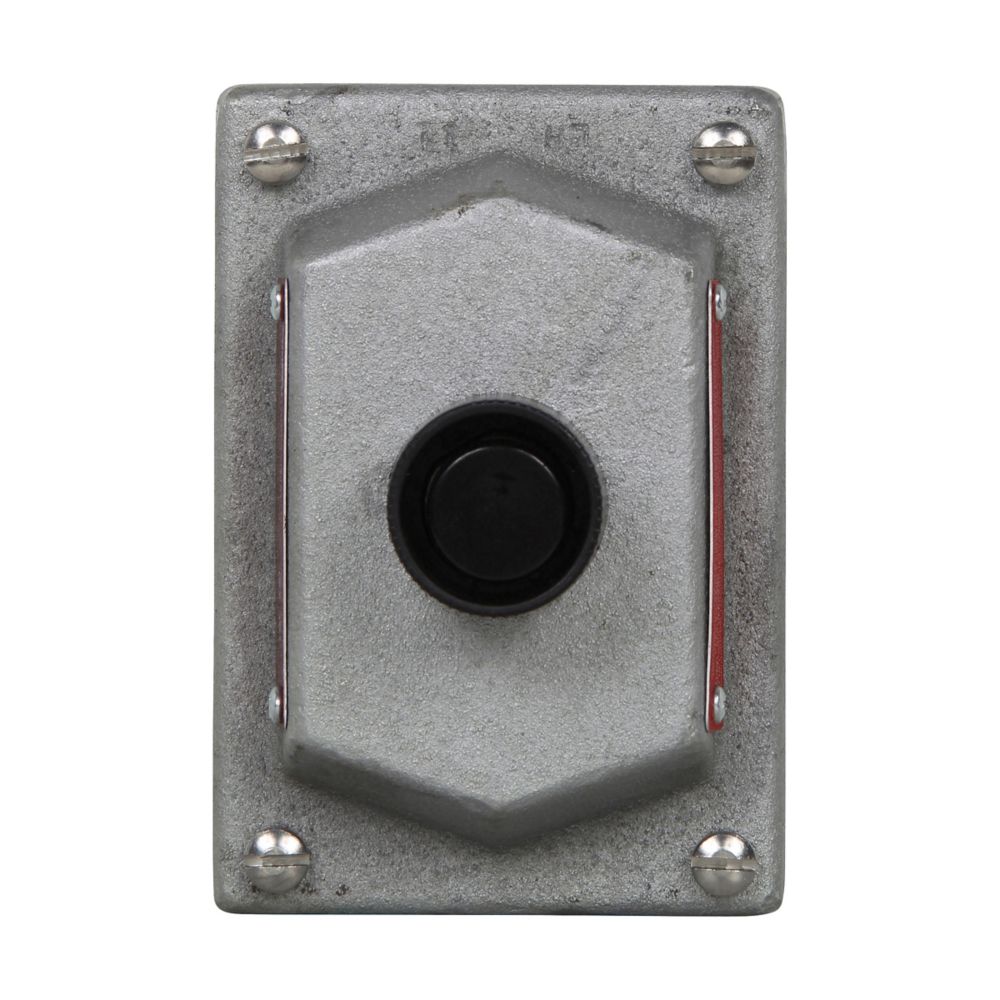

DSD919 is a front-operated pushbutton cover and device sub-assembly from Crouse-Hinds designed for heavy-duty industrial applications.DSD919 features a 10 ampere capacity, supports up to 600 volts AC, and is constructed from durable Feraloy iron alloy. It includes two circuits with a 2NO-2NC contact configuration and is factory sealed for reliable operation in harsh environments. The device is suitable for mounting on Eds/Efs series control stations and offers maintained contact mode with a NEMA 3/7BCD/9EFG enclosure rating.
- Key Specifications
- Amperage: 10A
- Voltage: 600 VAC
- Contact Configuration: 2NO-2NC (2 circuits)
- Contact Mode: Maintained
- Material: Feraloy iron alloy
- Mounting Type: Front operated
- Enclosure Type: NEMA 3/7BCD/9EFG
- Series/Frame: DSD Series
- Factory sealed for heavy-duty use
- Color: Black
Specifications
- Part Number: DSD919
- Manufacturer : Eaton
- Brand : Crouse-Hinds
- Category : Conduit & Fittings
- Item Subcategory : Low-voltage power distribution and control systems
- Section : Control stations
- Family : DSD Series
- Type : DSD
- Voltage : 600 Vac
- Amperage : 10A
- Nema Rating : 3 7 9
- Material : Feraloy iron alloy
- NEC hazardous rating : Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
- Special features : Factory sealed
- Color : Black
Product Data
- UPC : 782274776132
- GTIN : 00782274776132
- Dimensions : 6.6 in x 4.6 in x 5.2 in (Length/Depth x Height x Width)
- Weight : 3.55 lb
