Product Info
- Manufacturer:Russellstoll
Description

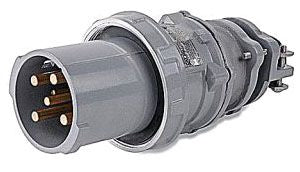

DS6404MP000JG106
DS6404MP000JG106 is a Russellstoll MaxGard series male plug rated for 60 amperes at 480 VAC, 3-phase, 60 Hz operation. This load-breaking plug features a 3-pole, 4-wire configuration designed for heavy industrial and marine applications requiring waterproof, durable connectivity in outdoor and severe environments. DS6404MP000JG106 combines cast aluminum construction with marine-grade brass contacts and neoprene O-ring interior components to deliver reliable performance across demanding conditions. The plug accommodates a maximum 1-inch cable diameter and includes a screw cap with 1-inch bushing. Center ground contacts ensure proper make-first, break-last sequencing. Two optional pilot or control pins support contractors, load monitor circuits, shunt trip functions, or other communication requirements. Standard delayed-action pull-and-turn withdrawal provides XP rating for 30 to 100 ampere applications.
- Amperage Rating: 60 A
- Voltage Rating: 480 VAC, 3-phase
- Frequency: 60 Hz
- Number of Poles: 3
- Number of Wires: 4
- Material: Cast Aluminum with epoxy powder coating
- Contact Material: CDA 360 and marine-grade CDA 485 brass
- Temperature Range: -40 to 130 degrees C
- Cable Diameter: 1-inch maximum
- Certifications: UL e68085, CSA approved
- Construction Type: Load-breaking male plug
- Special Features: Waterproof construction, optional pilot/control pins
Specifications
- Part Number: DS6404MP000JG106
- Manufacturer : Russellstoll
- Brand : Thomas & Betts
Product Data
- UPC : 70891740332
- GTIN : 00708917403326
- Weight : 3.8
