Product Info
- Manufacturer:Russellstoll
Description
DS6307MP000

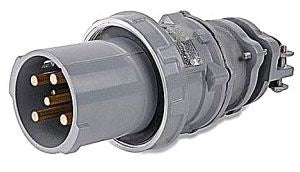

DS6307MP000 is a Russellstoll Max-Gard waterproof male pin plug designed for demanding industrial environments requiring secure, reliable power connections. This plug features a screw collar for secure mating and is built for durability with a cast copper-free aluminum housing and epoxy powder coating. The DS6307MP000 is rated for 60 amps and 125/250 volts AC, with a 3-pole, 4-wire configuration. It includes a center ground contact that makes first and breaks last for added safety, and a gated deadfront construction to prevent accidental contact. The plug is equipped with a padlock-out access hole for lockout/tagout procedures and a compression-type gland bushing for optimal cable sealing. Neoprene O-rings provide waterproof integrity even when unmated, and the plug is compatible with standard Max-Gard receptacles.
- 60 A current rating
- 125/250 VAC voltage rating
- 3 poles, 4 wires
- Waterproof construction with Neoprene O-rings
- Cast copper-free aluminum housing
- Epoxy powder coated finish
- Screw collar for secure mating
- Center ground contact: makes first, breaks last
- Gated deadfront for safety
- Padlock-out access hole
- Compression-type gland bushing
- UL and CSA listed for hazardous locations
- Class I, Division 1 approval
- Meets Federal specification WS865C
- Meets UL 98, 50, 1682, 508, 231
- Meets NEC Table 373-6(b)
Specifications
- Part Number: DS6307MP000
- Manufacturer : Russellstoll
- Brand : Thomas & Betts
Product Data
- UPC : 70891719188
- GTIN : 00708917191889
- Weight : 3.8
