Product Info
- Manufacturer:Russellstoll
Description
DS3504FRAB0

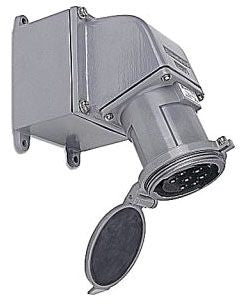

DS3504FRAB0 is a Russellstoll heavy-duty female receptacle designed for industrial and marine applications, rated at 30 amps and 277/480 volts.DS3504FRAB0 features a 4-pole, 5-wire configuration with an angle adapter and junction box, suitable for 3-phase Y systems at 60 Hz frequency. It is constructed with epoxy powder-coated copper-free cast aluminum for durability and includes a screw cap for protection. The device supports a 100 kA interrupt rating and is built to meet rigorous industrial standards.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 277/480 Volts
- Poles: 4
- Wires: 5
- Frequency: 60 Hz
- Mounting: Junction Box with Angle Adapter
- Interrupt Rating: 100 kAIC
- Material: Epoxy Powder Coated Copper-Free Cast Aluminum
- System Type: 3 Phase Y
- Includes Screw Cap
- Style: Load Breaking Female Receptacle
- Certifications: Industrial and Marine Rated
Specifications
- Part Number: DS3504FRAB0
- Manufacturer : Russellstoll
- Brand : Thomas & Betts
Product Data
- UPC : 70891729882
- GTIN : 00708917298823
- Weight : 5.7
