Product Info
- Manufacturer:Hubbell
- Sub-Category:Switches
Description

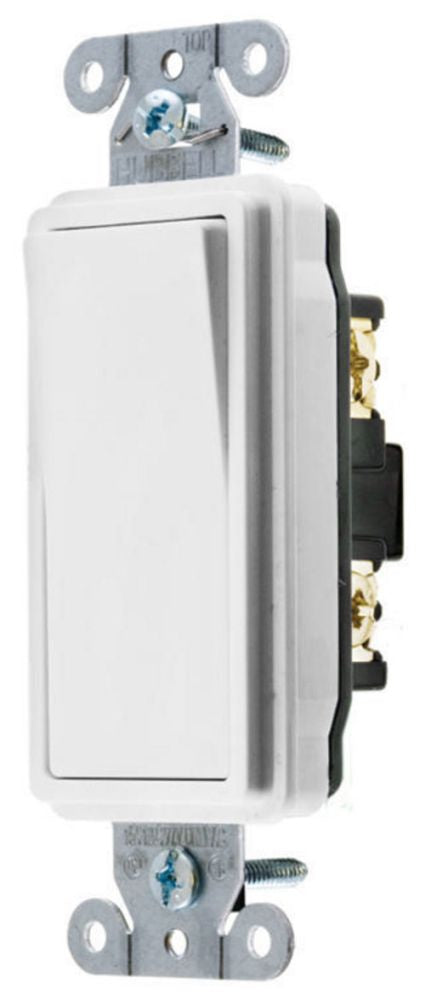

DS120W
DS120W is a Hubbell Specification Grade single pole decorator switch rated for 20 amps and 120/277 volts AC, designed for reliable commercial and residential applications.This switch features a thermoplastic rocker, back and side wired connectivity, and a corrosion-resistant zinc-plated steel mounting bridge with an automatic self-grounding staple. It is UL Listed and CSA Certified, with a dielectric strength rating of 1500V AC minimum for 1 minute and a temperature rating from -40°C to 75°C continuous. The switch accommodates #14 to #10 AWG copper wire and provides a temperature rise of no more than 30°C at rated current.
- Key Specifications
- Amperage Rating: 20 A
- Voltage Rating: 120-277 VAC
- Number of Poles: Single Pole
- Mounting Type: Back and Side Wired
- Dielectric Strength: 1500V AC minimum for 1 minute
- Material: Thermoplastic Rocker
- Certifications: UL Listed, CSA Certified
- Operating Temperature: -40°C to 75°C continuous
- Wire Size: #14 AWG to #10 AWG copper
- Series: Style Line® Decorator Series
- Self-Grounding: Yes, automatic grounding staple
Specifications
- Part Number: DS120W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Switches
- Family : Decorator
- Voltage : 120 to 277 120/277
Product Data
- UPC : 783585108377
- GTIN : 00783585108377
- Dimensions : 4.276 in H x 1.435 in W x 1.539 in D 4.28 x 1.43 x 1.54 in
- Weight : 0.2 lb
