Product Info
- Manufacturer:Eaton
- Sub-Category:Disconnect
Description
DPF221RP

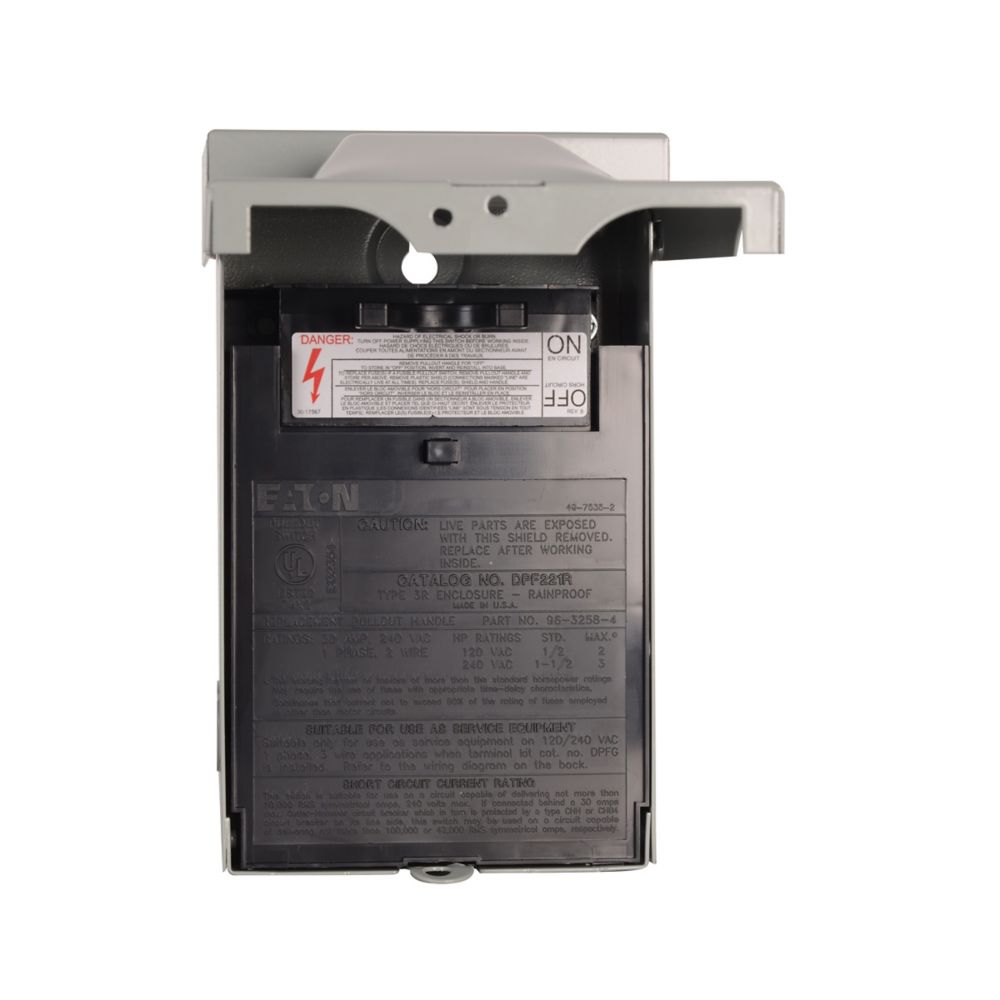

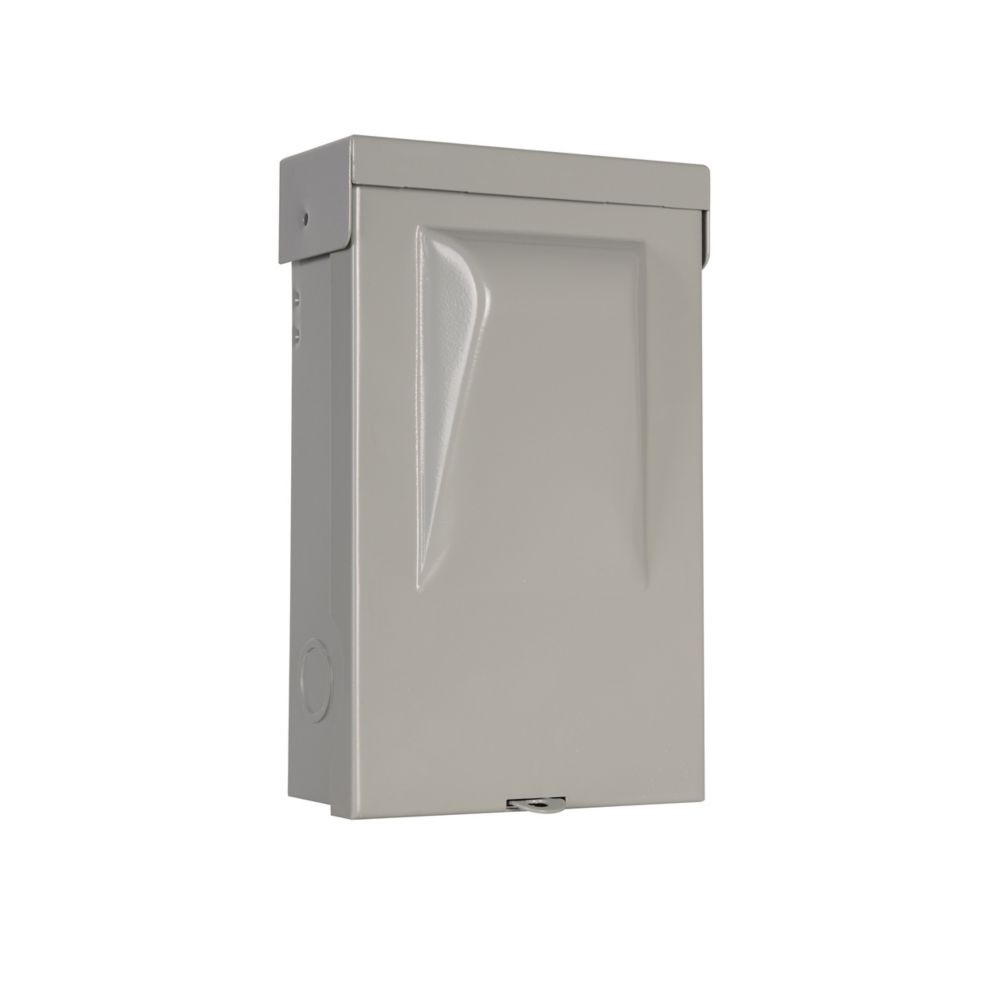

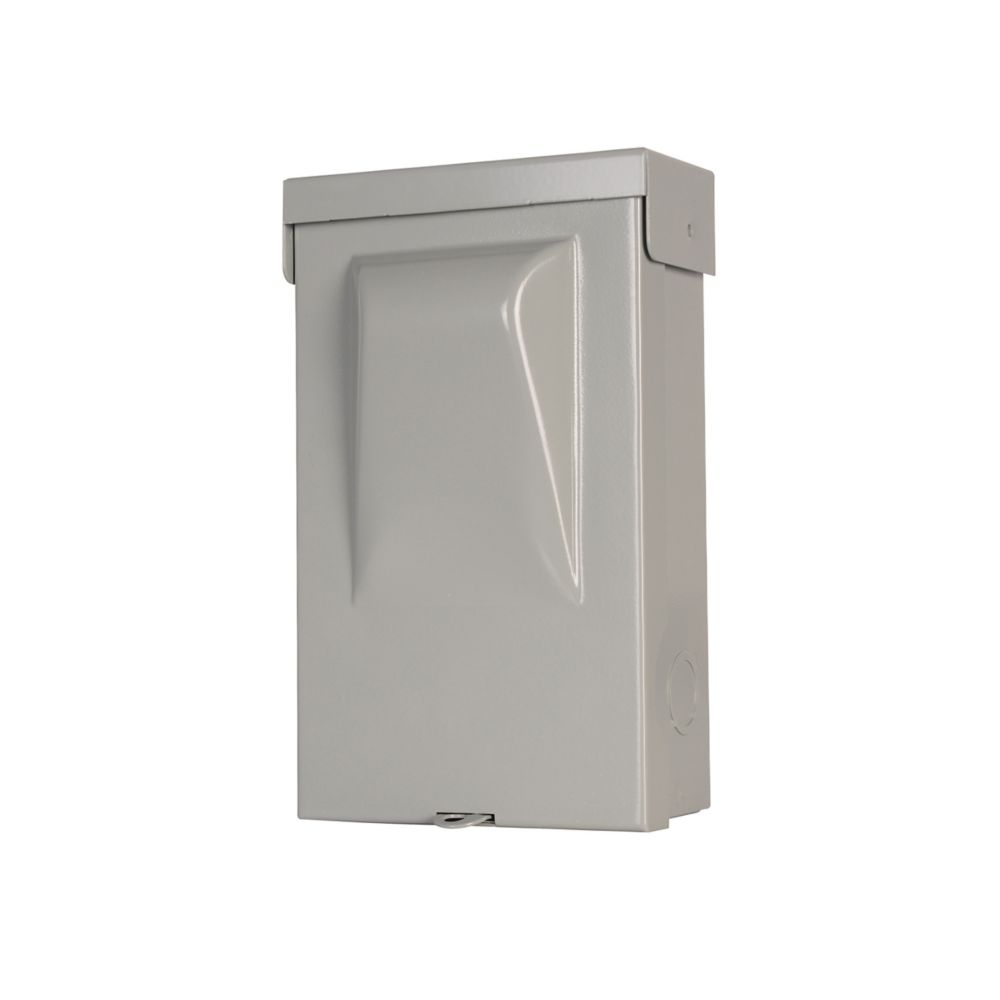

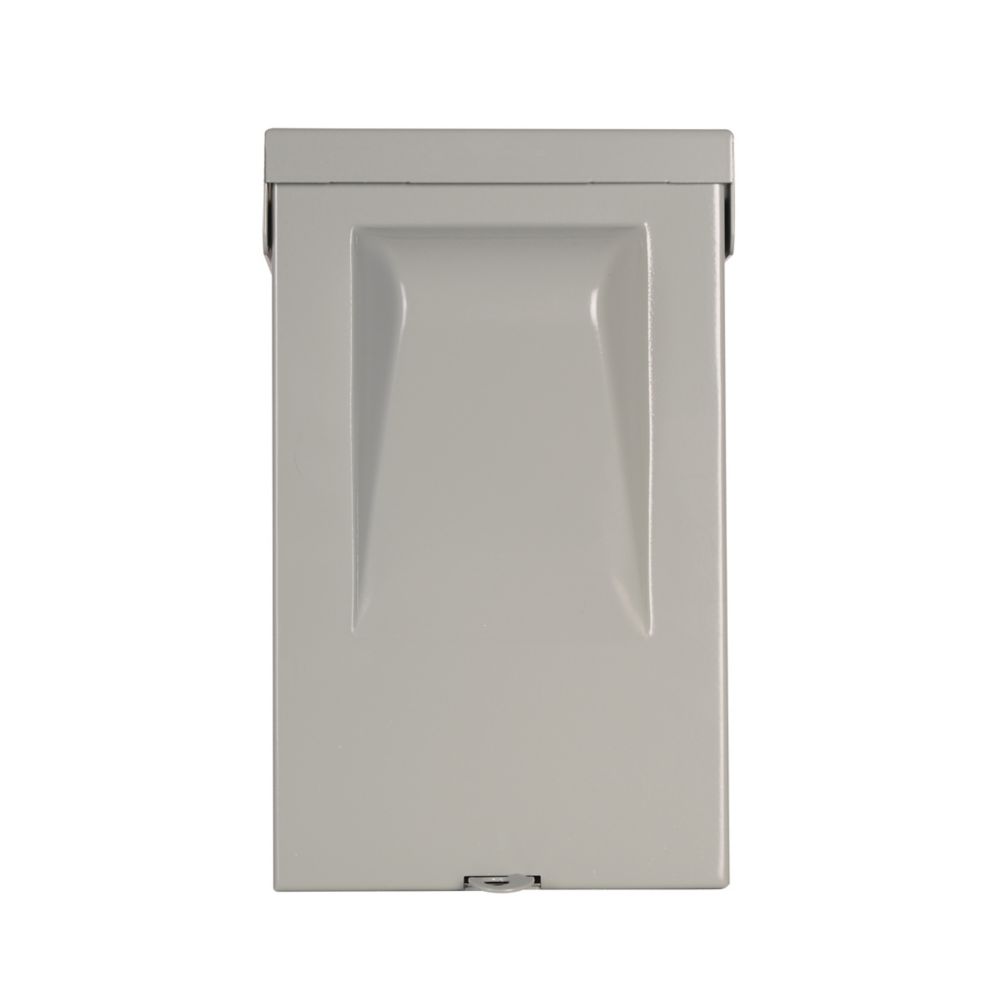

DPF221RP is a 30 Amp fused pullout air conditioning disconnect from Eaton designed for 120/240V applications with a NEMA 3R galvanized steel enclosure.This Eaton disconnect switch features a 2-pole fused pullout design rated for 30A and 10 kA interrupt capacity. It supports motor loads up to 1.5 hp at 120V and 3 hp at 240V. The enclosure is ANSI 61 gray, made of galvanized steel, and rated NEMA 3R for outdoor use. It accepts #14-3 AWG copper or aluminum wiring rated for 60°C or 75°C. The product is CSA certified and UL listed for safety compliance.
- Amperage Rating: 30A
- Voltage Rating: 120/240V
- Poles: 2
- Type: Fused Pullout
- Interrupt Rating: 10 kAIC
- Horsepower Rating: 1.5 hp at 120V, 3 hp at 240V
- Enclosure: NEMA 3R galvanized steel
- Wire Size: #14-3 AWG Cu/Al 60°C or 75°C
- Color: ANSI 61 gray
- Certifications: CSA Certified, UL Listed
- Mounting: Outdoor rated
Specifications
- Part Number: DPF221RP
- Manufacturer : Eaton
- Brand : Eaton
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 28
Product Data
- UPC : 782114103210
- GTIN : 00782114000000
- Country of Origin : United States
- Dimensions : 5.4 in x 8.7 in x 3.15 in (Length/Depth x Height x Width)
- Weight : 2.75
- Certification : CSA Certified,UL Listed
