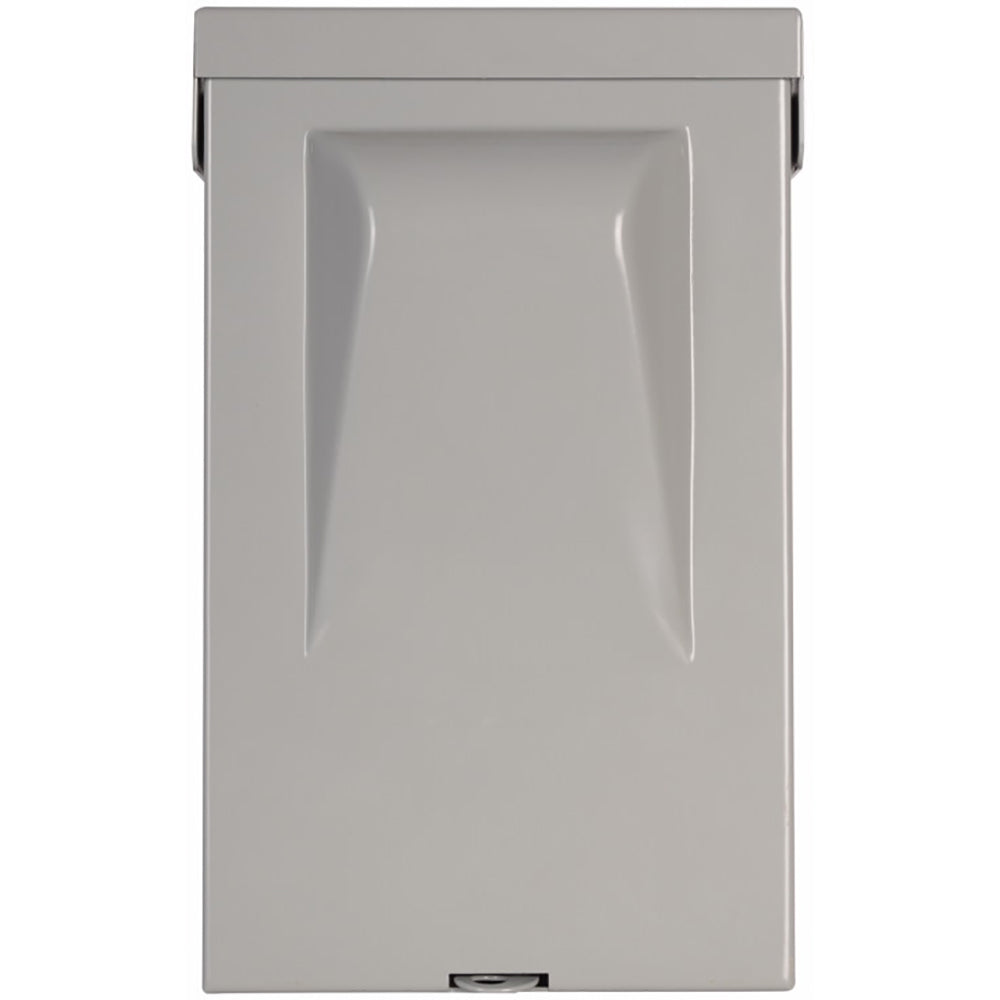

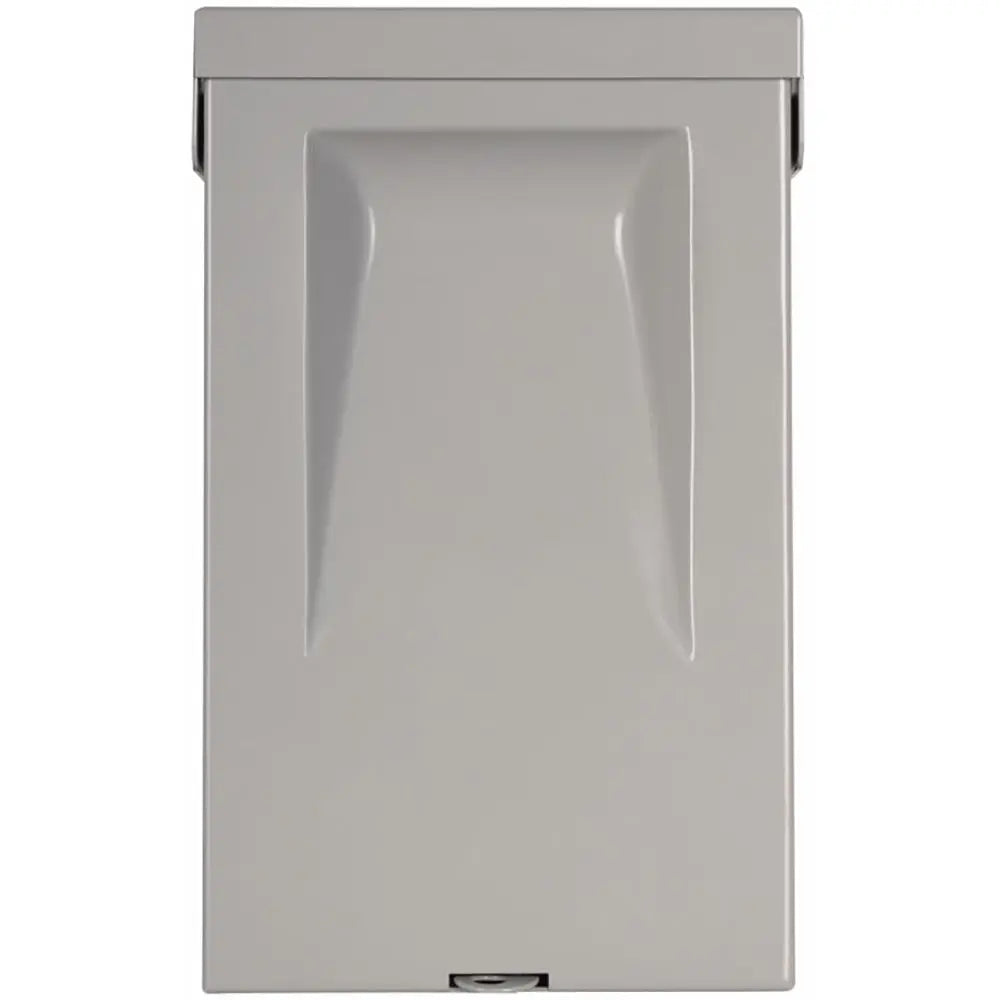

DPF221R - Cutler Hammer 30 Amp 240 Volt 2-Pole Fusible Pull-Out AC Disconnect Switch NEMA 3R

DPF221R

DPF221R is a Cutler Hammer 30 Amp, 240 Volt, 2-Pole fusible pull-out AC disconnect switch designed for outdoor use with NEMA 3R enclosure rating.This switch features a galvanized steel enclosure for durability, a 10 kA interrupt rating, and is UL Listed and CSA Certified. It supports wire sizes from #14 to 3 AWG copper/aluminum and is suitable for air conditioning and general duty applications. The pull-out design allows safe and easy fuse replacement.

Key Specifications
• Amperage: 30 Amp
• Voltage: 120/240 Volt AC
• Poles: 2
• Mounting Type: Outdoor NEMA 3R
• Interrupt Rating: 10 kAIC
• Enclosure Material: Galvanized Steel
• Disconnect Type: Fusible Pull-Out
• Wire Size: #14 to 3 AWG Cu/Al
• Certifications: UL Listed, CSA Certified
• Horsepower Rating: 2 HP at 120V, 3 HP at 240V
• Dimensions: Approx. 8.7" H x 5.5" W x 2.5" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DPF221R
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 240 AC
• Amperage : 30

Product Data

• UPC : 78211392686
• GTIN : 00782113926865
• Country of Origin : Mexico
• Dimensions : 5.4 in x 8.7 in x 3.15 in (Length/Depth x Height x Width)
• Weight : 2.7
• Certification : CSA Certified, UL Listed
