DPB222R - Eaton 60A 240V 2-Pole Molded Case Air Conditioning Disconnect Switch

DPB222R

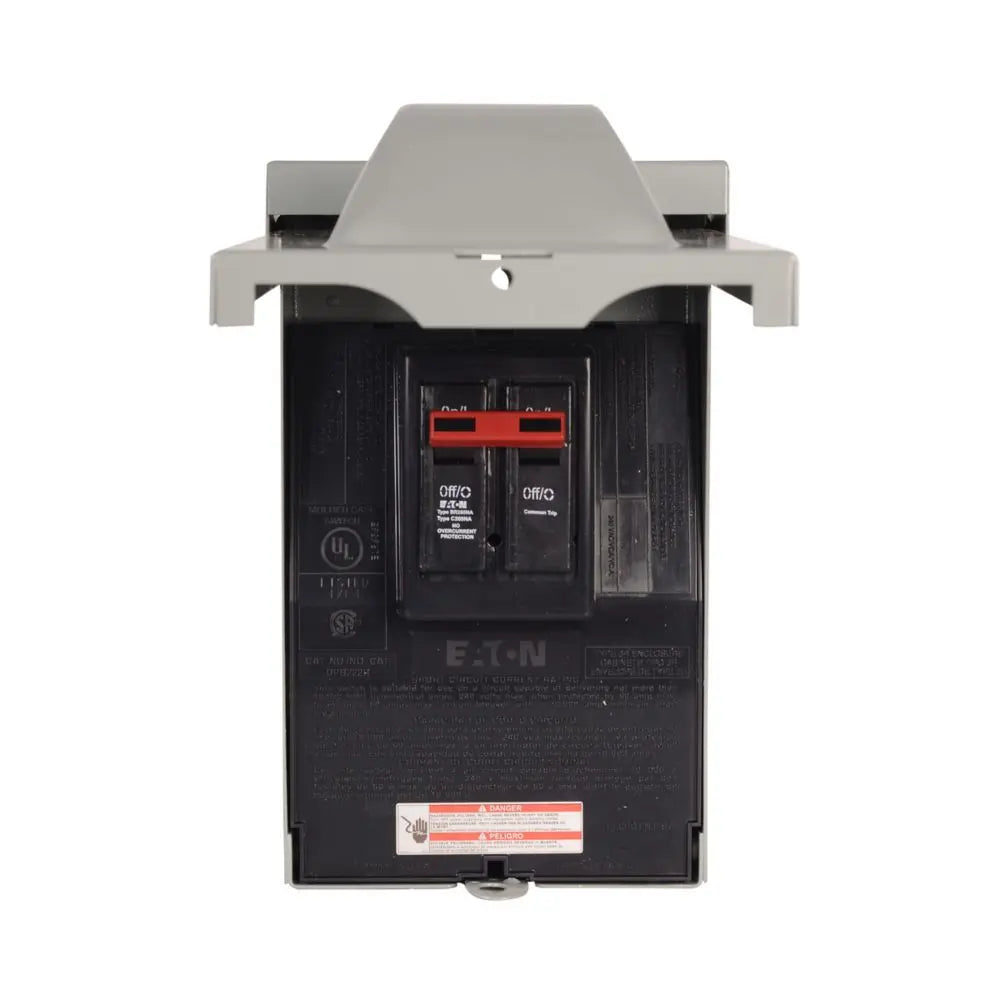

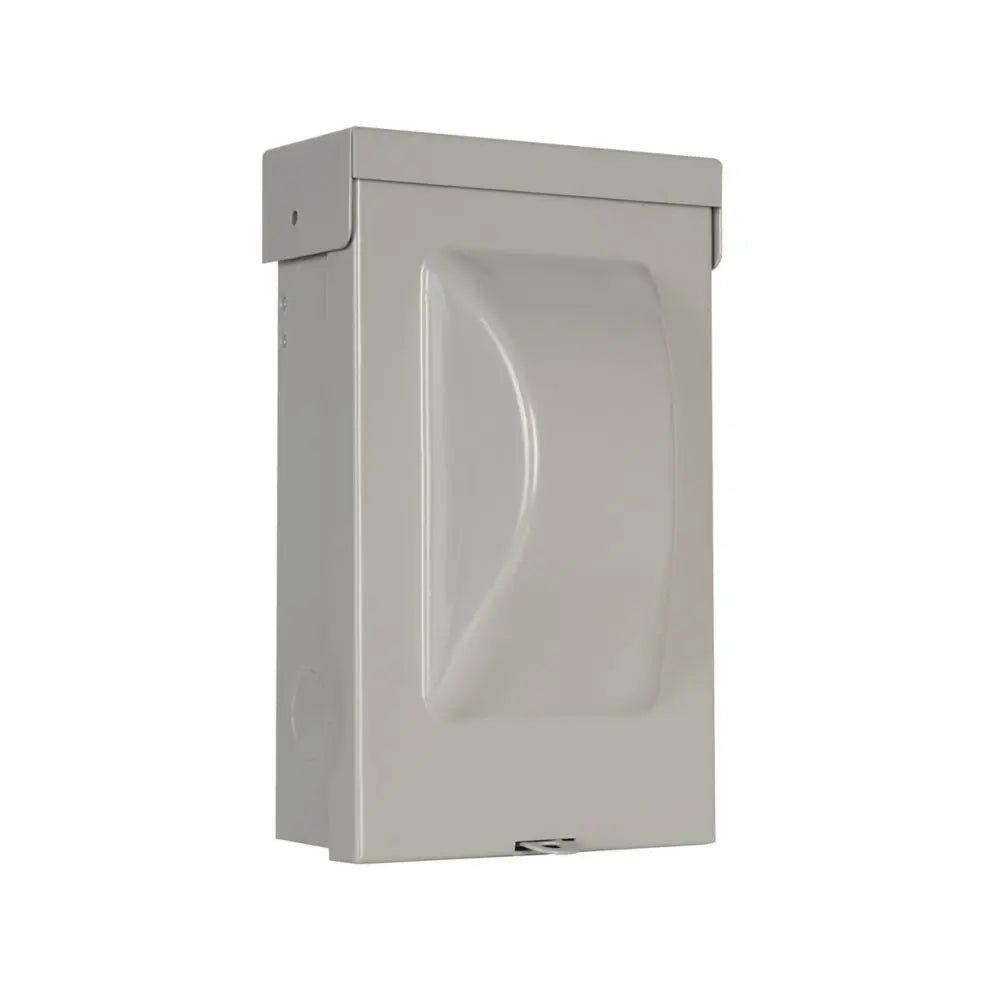

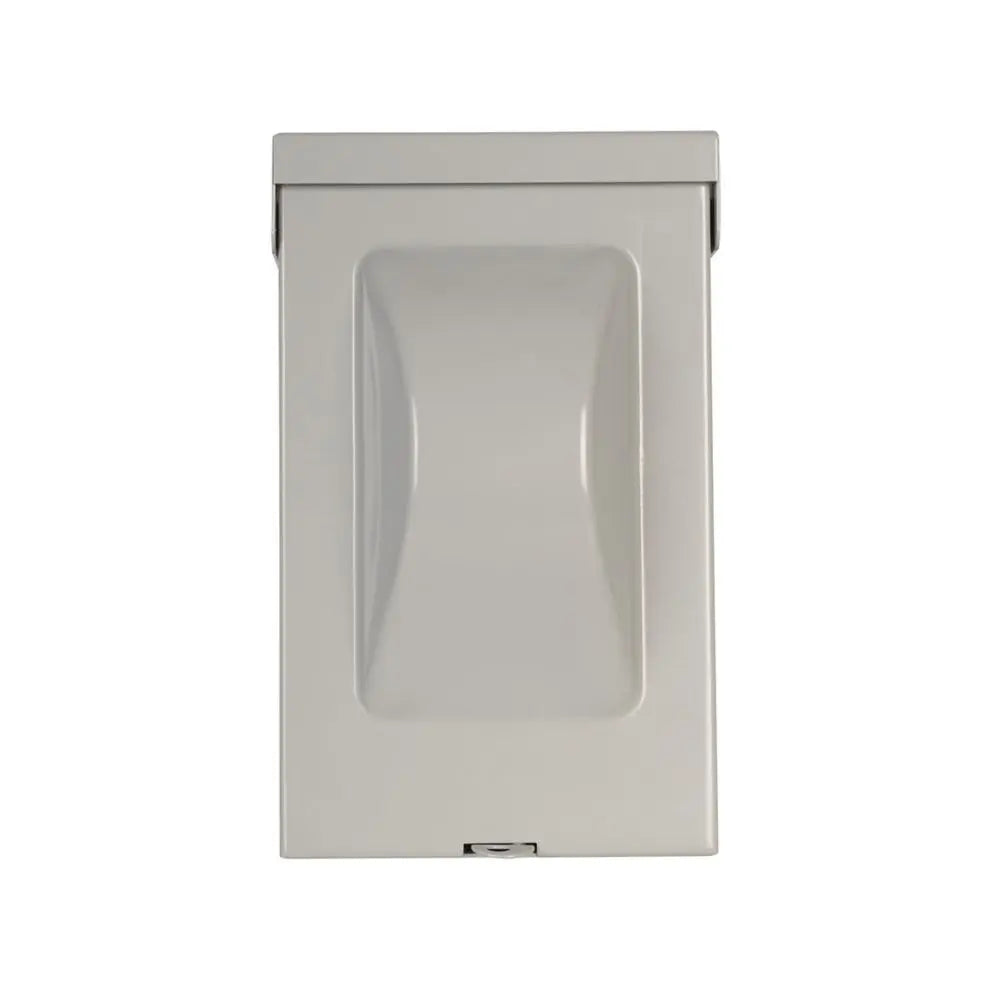

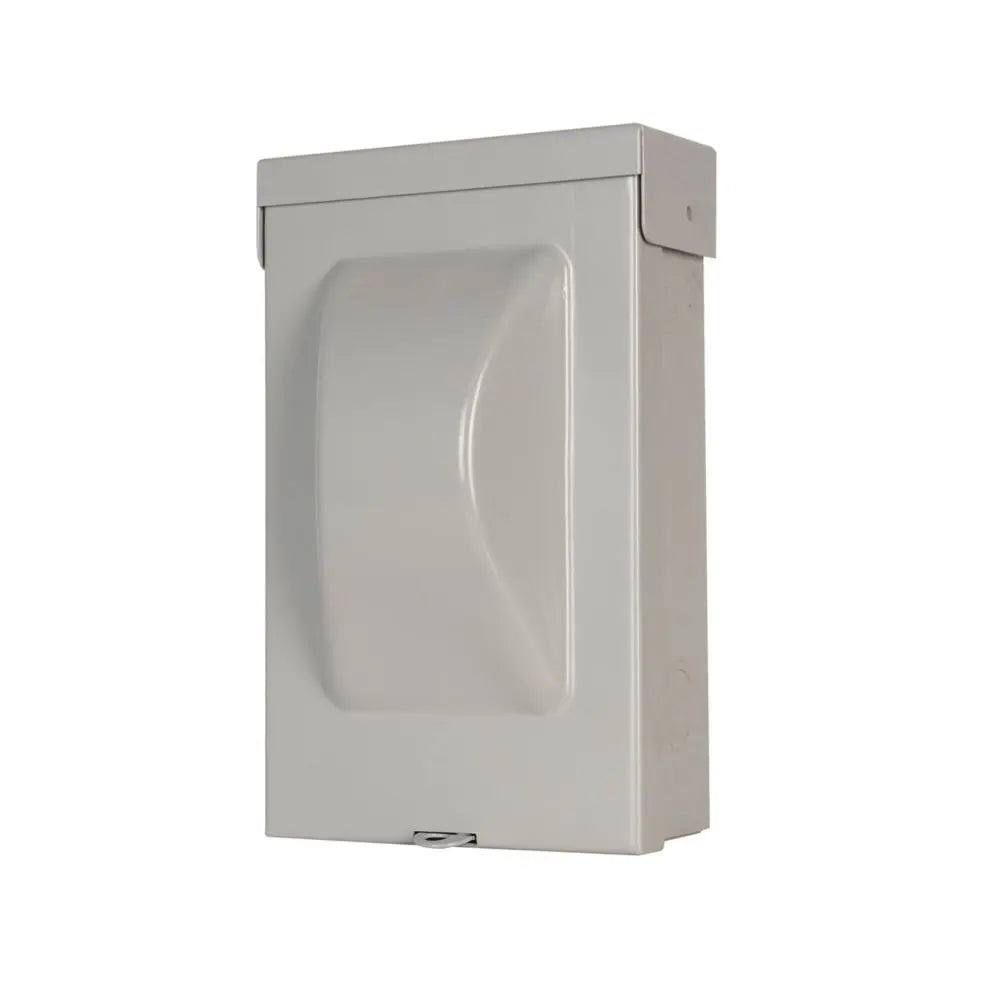

DPB222R is a molded case air conditioning disconnect switch by Eaton designed for 60 amp, 240 volt applications with 2 poles.DPB222R features a rugged molded case construction that operates like a household light switch but provides reliable disconnect functionality for air conditioning units. It supports up to 10 HP motors at 240 VAC and is rated for a 10kA interrupt rating when protected by a 60A fuse or breaker. The switch is non-fusible, UL listed, and CSA certified, suitable for wire sizes #14 to #3 Cu/Al at 60°C or 75°C.

Key Specifications
• Amperage: 60A
• Voltage: 240 VAC
• Poles: 2
• Type: Molded Case Air Conditioning Disconnect Switch
• Interrupt Rating: 10kA at 240V max
• Motor HP Rating: 10 HP at 240 VAC
• Mounting Type: Surface Mount (Galvanized Steel Enclosure)
• Wire Size Range: #14 to #3 AWG Cu/Al (60°C or 75°C)
• Trip Unit: Non-Fusible
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DPB222R
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Fuse Part And Accessory
• Voltage : 240

Product Data

• UPC : 782114205686
• GTIN : 00782114000000
• Dimensions : 5.3 in x 8.6 in x 3.74 in (Length/Depth x Height x Width)
• Weight : 3.11
• Certification : UL Listed; CSA Certified
