DNPL1515 - Cutler Hammer Eaton BR Duplex 15A 2x1-Pole 120/240V 10kA Circuit Breaker Plug-On

DNPL1515

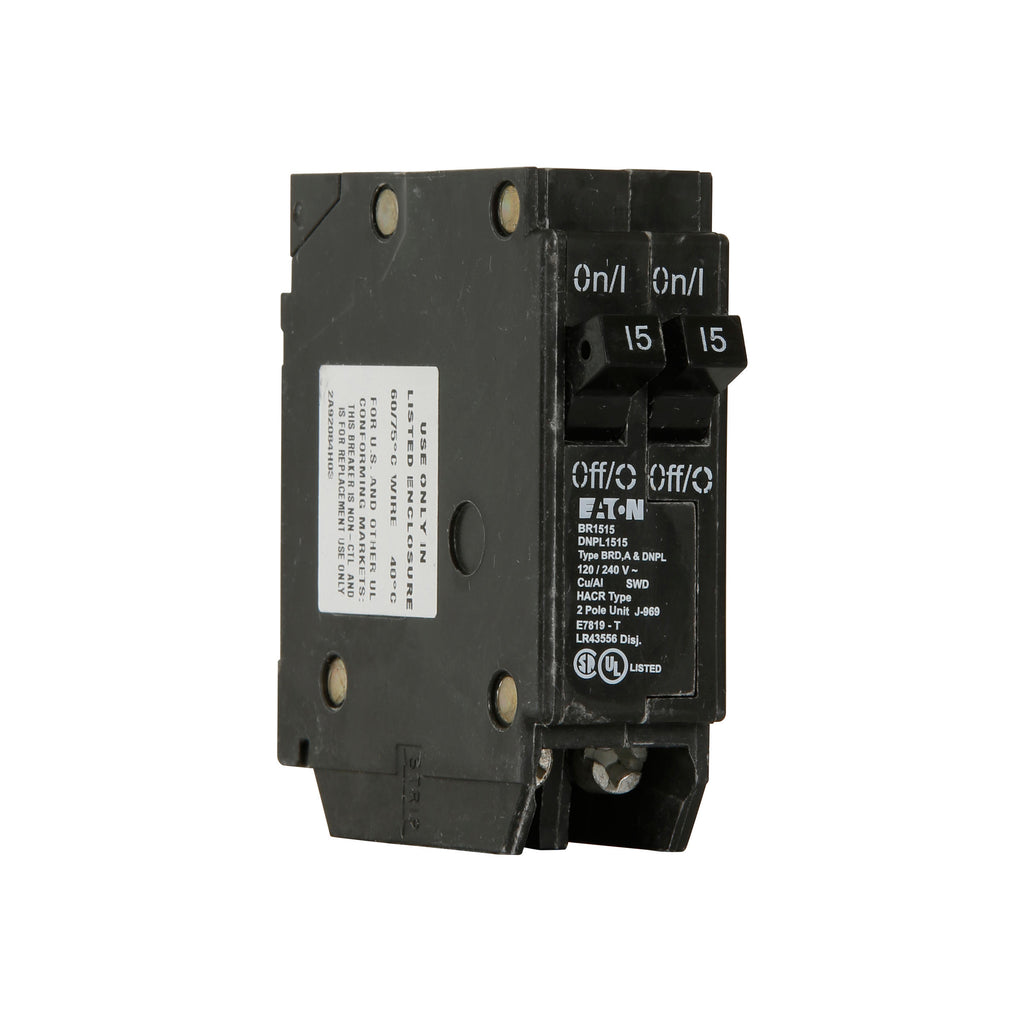

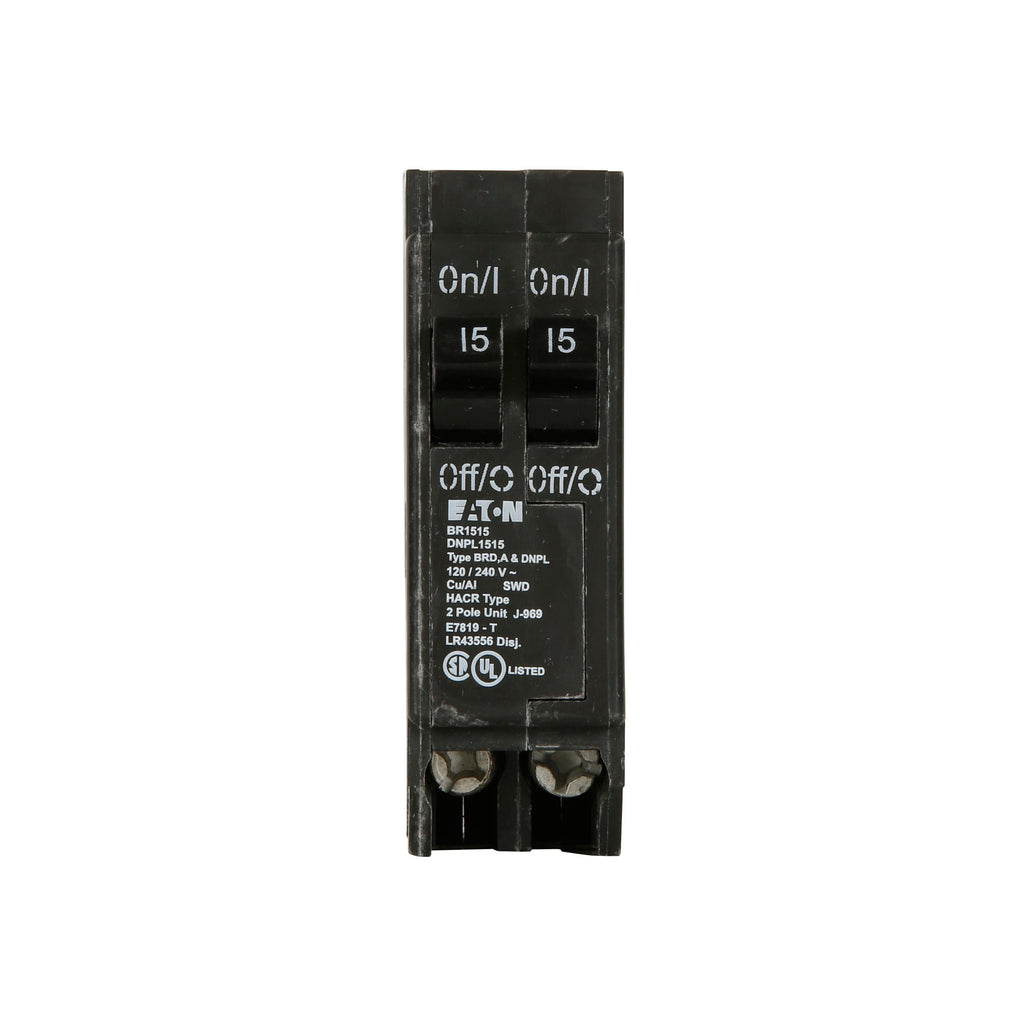

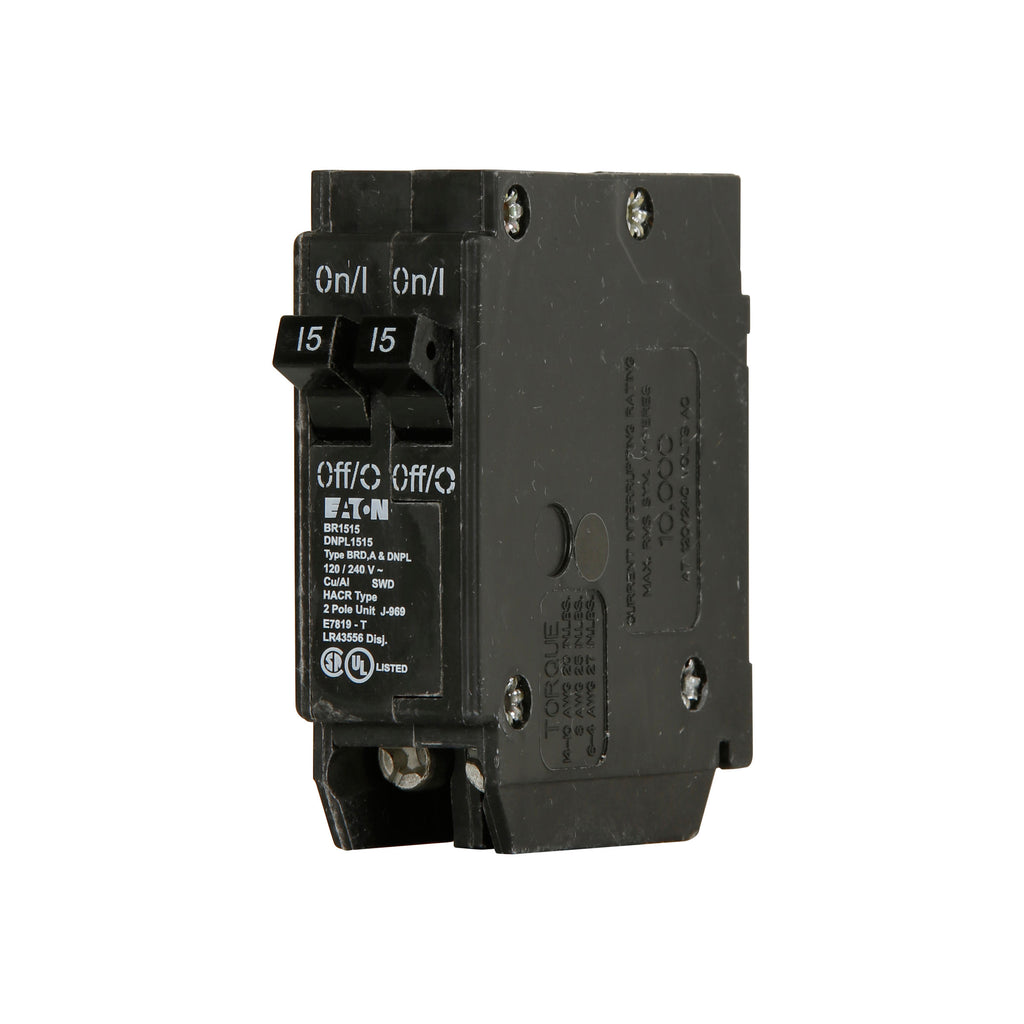

DNPL1515 is a Cutler Hammer Eaton BR series duplex circuit breaker featuring two 15 amp single-pole breakers in one unit designed for plug-on mounting.

This Eaton BR thermal magnetic circuit breaker provides reliable protection with a 10 kiloampere interrupting rating at 120 VAC and supports 120/240 VAC voltage. It is a duplex type with two single poles, suitable for use in BR series loadcenters. The breaker features a thermal-magnetic trip curve to prevent nuisance tripping and quick-make, quick-break switch mechanism with trip-free handle design. It is HACR rated and UL listed, compatible with wire sizes from 14 to 4 AWG aluminum or copper.

Key Specifications
• Amperage Rating: (2) 15A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2 single-pole (duplex)
• Interrupt Rating: 10 kAIC at 120 VAC
• Mounting Type: Plug-On
• Series/Frame: Eaton BR
• Trip Unit: Thermal Magnetic
• Wire Size: #14 to #4 AWG (Aluminum/Copper)
• Certifications: UL Listed, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DNPL1515
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Type DNPL
• Type : DNPL
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic
• Trip Type : DNPL CPM/CPL plug-in

Product Data

• UPC : 622588019245
• GTIN : 00622588019245
• Country of Origin : United States
• Dimensions : 3 in x 3 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.4 lb
