Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
DMM-B-11

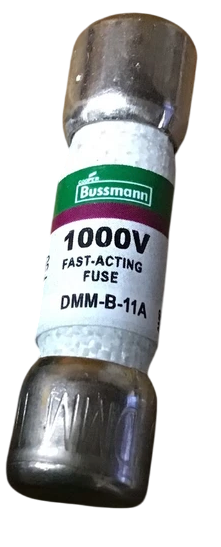

DMM-B-11A is an Eaton Bussmann fast acting specialty ferrule fuse designed for multi-meter protection with a current rating of 11 amps and voltage rating of 1000VAC/VDC.DMM-B-11A features a melamine tube construction with nickel-plated brass end caps and is sized 10mm x 38.1mm (5AG Midget). It has an interrupt rating of 20,000 amps at 1000 volts AC and DC, making it suitable for high fault current conditions. This fuse is UL recognized and CE approved, intended to carry 100% of rated current indefinitely but not for branch circuit protection. It operates safely up to 69°C ambient temperature at full load.
- Key Specifications
- Amperage: 11A
- Voltage Rating: 1000VAC/VDC
- Fuse Size: 10mm x 38.1mm (5AG Midget)
- Blow Characteristic: Fast Acting
- Interrupt Rating: 20,000A at 1000V AC/DC
- Construction: Melamine tube with nickel-plated brass end caps
- Maximum Operating Temperature: 69°C at 22°C ambient
- Certifications: UL E19180 recognized, CE approved
- Intended Use: Multi-meter protection
- Not for branch circuit protection
Specifications
- Part Number: DMM-B-11
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : DMM-B Series
- Type : DMM-B
- Voltage : 1000
- Amperage : 11
- AIC rating : 20kA@1000Vac
- Connection : Ferrule
- Diameter : 0.41
- Barrels : 1
Product Data
- UPC : 051712618427
- Weight : 1
