Hammond Power Solutions DM011JJ - 3-Phase Transformer 11kVA (460V Delta/Wye)

DM011JJ

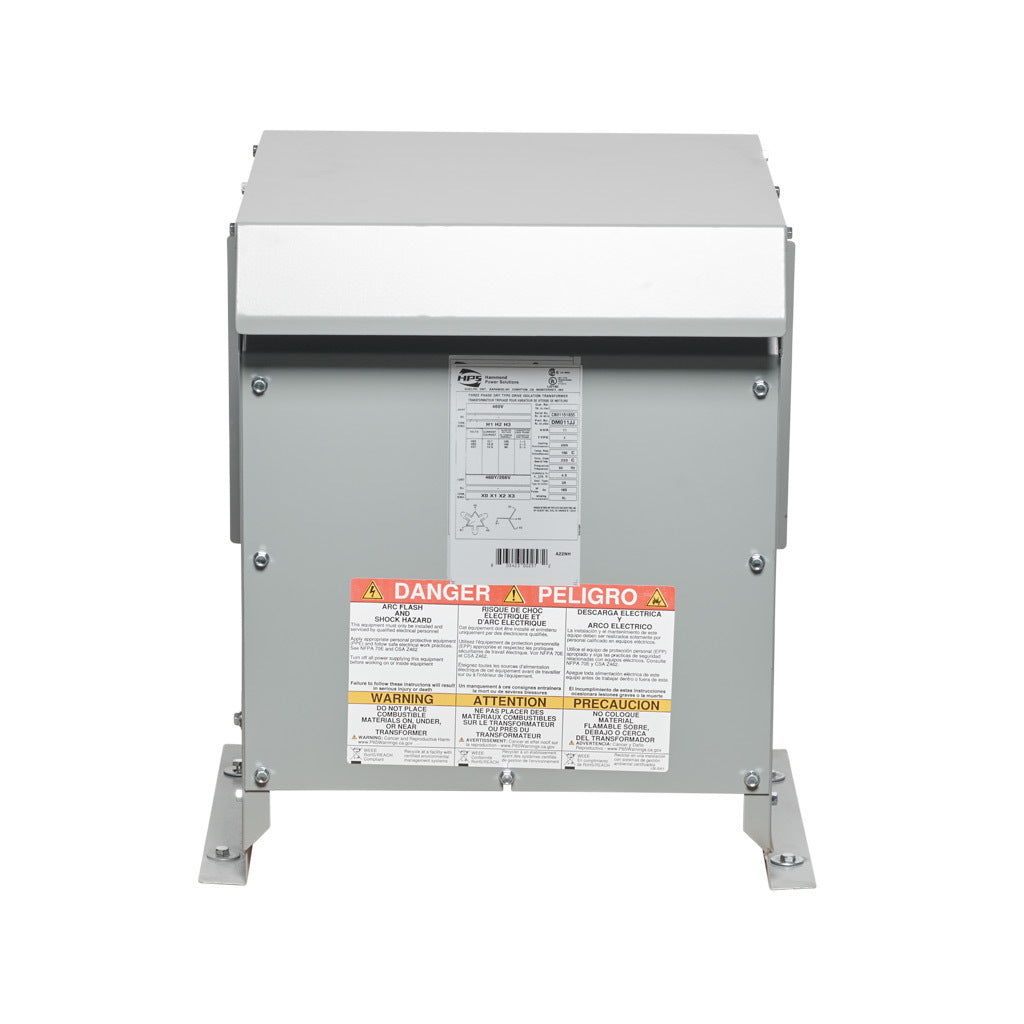

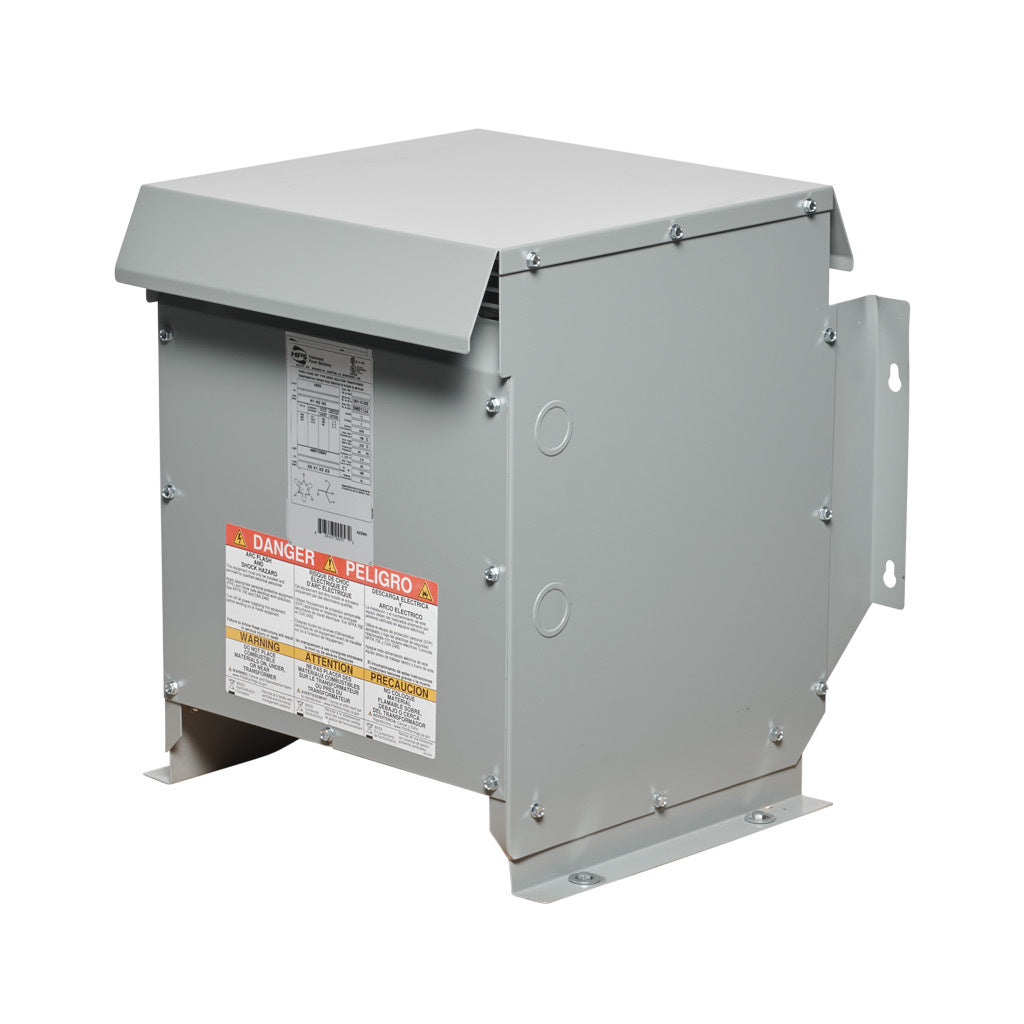

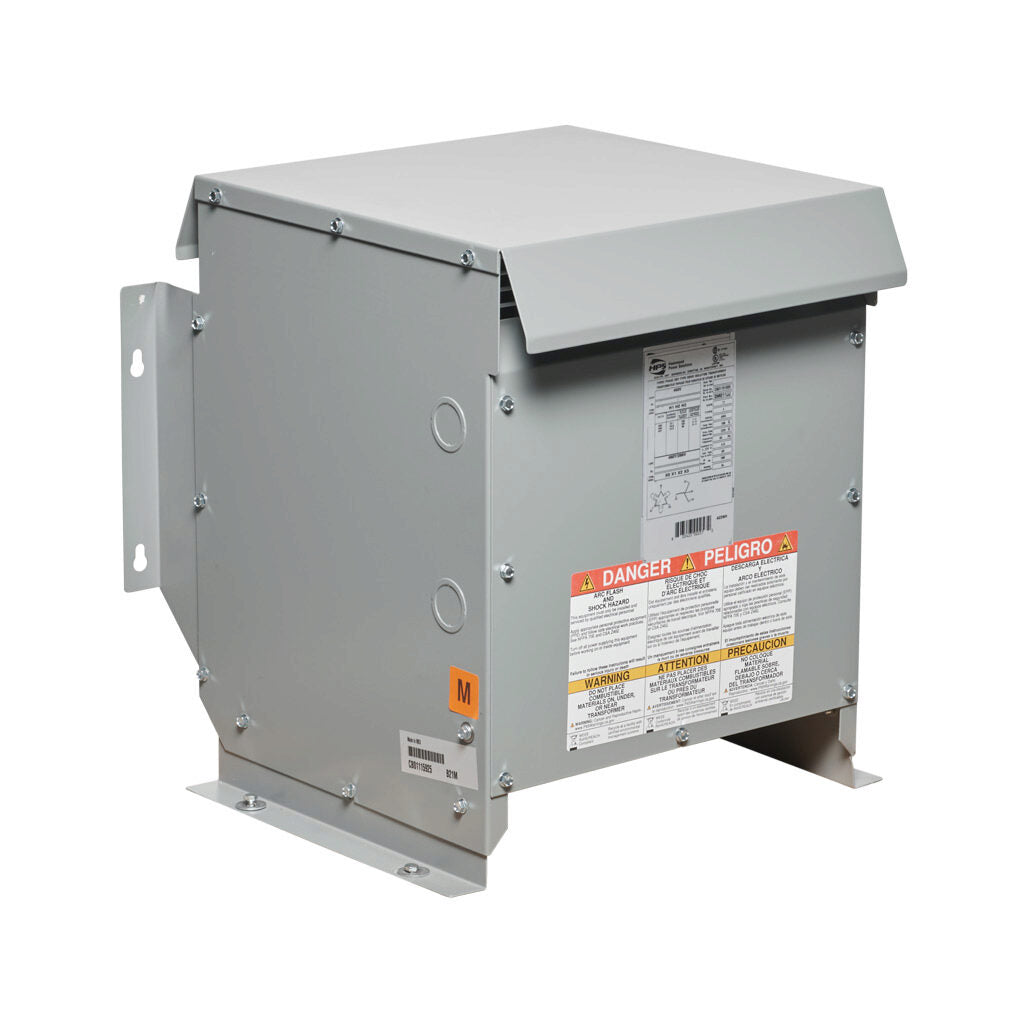

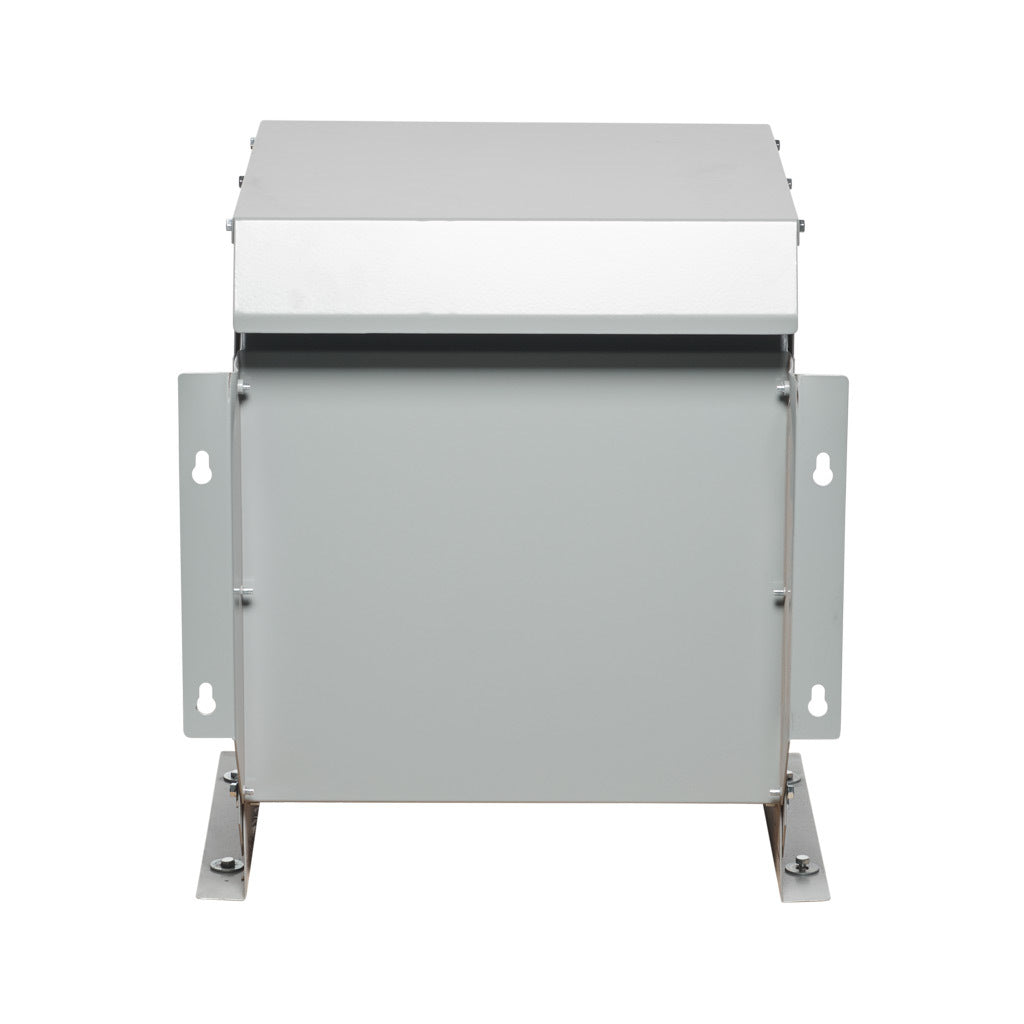

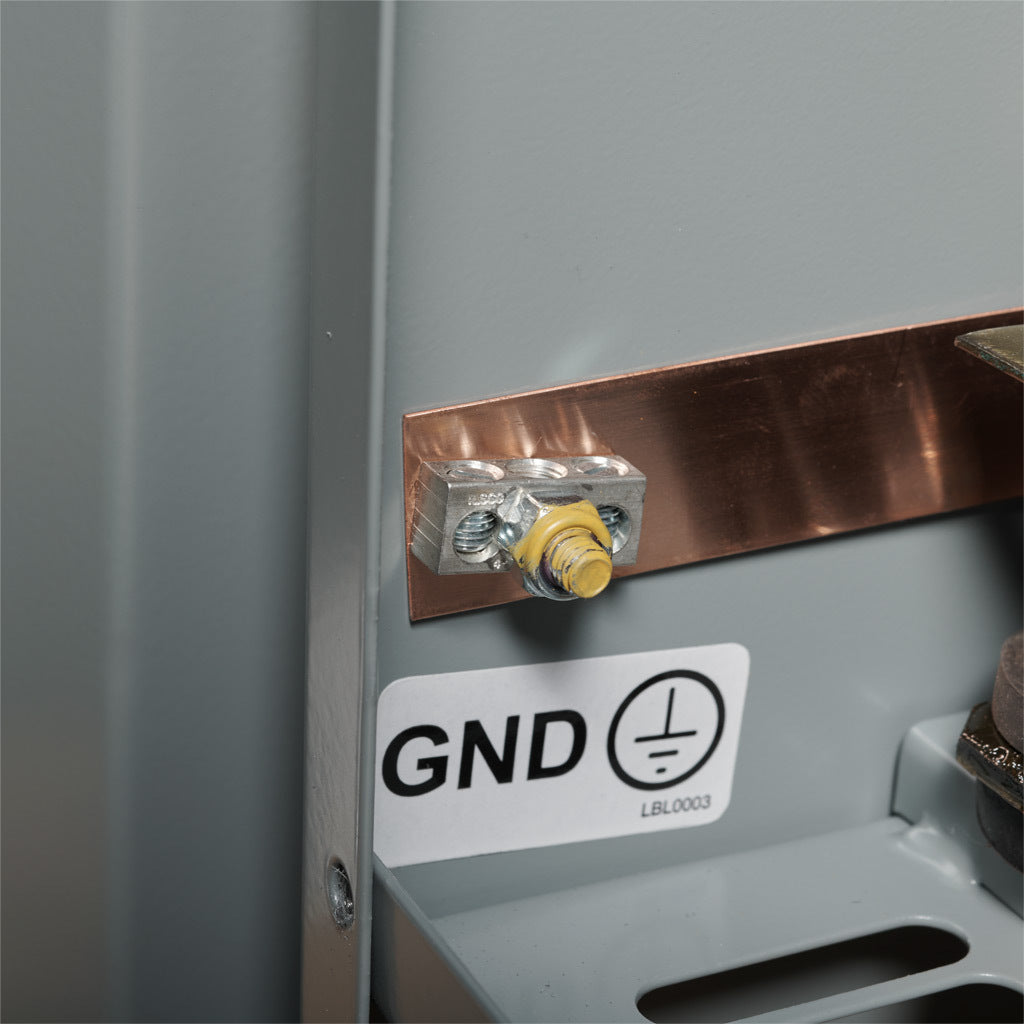

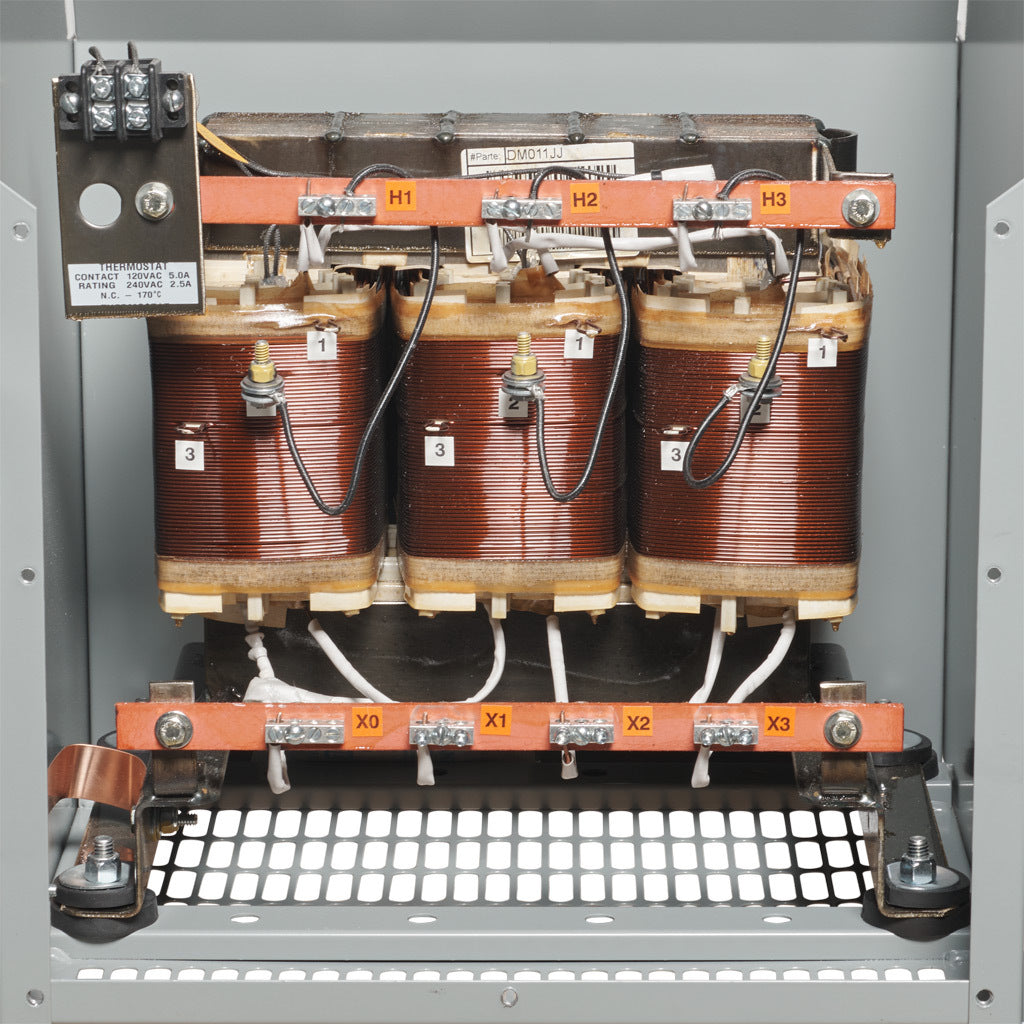

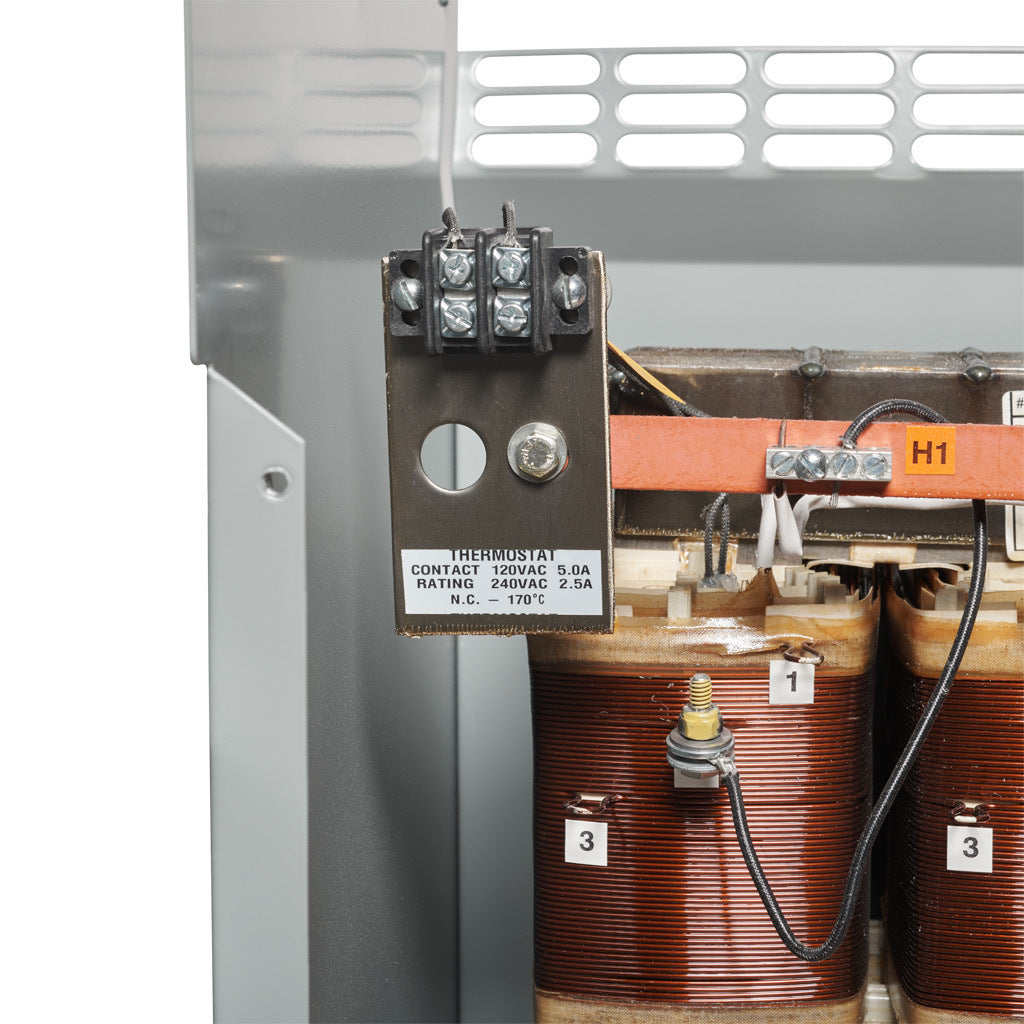

Hammond Power Solutions DM011JJ is a three-phase general duty transformer designed for industrial power distribution applications. The unit features a 460V delta primary connection and 460Y/266V wye-n secondary configuration with 11 kVA capacity, operating at 60Hz with aluminum windings rated for 150°C temperature rise and 220°C insulation class. Constructed with a Type 3R/IP24 enclosure finished in ANSI 61 grey measuring 21.5" H × 19.38" W × 20.2" D, the transformer maintains a low 45 dBA sound level while meeting IBC 2018 seismic standards (Sds=2.0, z/h=0, lp=1.5). Compliant with UL50 and NEMA ST-20 specifications, this transformer is approved for installation in both US and LATAM markets. Typical applications include industrial control systems, machinery power supplies, and commercial building electrical distribution where reliable three-phase power conversion is required. Key Features & Specifications

• Type: Three-Phase General Duty Transformer
• Primary Voltage: 460V Delta
• Secondary Voltage: 460Y/266V Wye-N
• kVA Rating: 11 kVA
• Frequency: 60Hz
• Impedance: 3% - 6%
• Material: Aluminum Windings
• Temperature Rise: 150°C
• Insulation Class: 220°C
• Enclosure: Type 3R / IP24
• Dimensions: 21.5" H × 19.38" W × 20.2" D
• Sound Level: 45 dBA
• Seismic Compliance: IBC 2018 (Sds=2.0)
• Vector Configuration: Dyn1 (-30°)

Specifications

• Part Number: DM011JJ
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 3
• Enclosure Grade : Standard
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 460D
• Primary Connection : Delta
• Primary FCAN (NPL) : 1x5%
• Primary FCBN (NPL) : 1x5%
• Secondary Voltage : 460Y/266
• Secondary Connection : Wye-N
• Material : Aluminum
• Temperature Rise : 150°C
• Insulation Class : 220°C
• EKVA : 11
• Efficiency Regulation : No Efficiency Specification; approved for installation in US and LATAM
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=0, lp=1.5)
• Sound Level : 45 dBA (NEMA ST-20)
• Impedance (Std) : 3% - 6%
• Secondary Termination (NPL) : Terminal Block
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NH5-N3R
• Enclosure Dimensions : 21.5in/547mm(H), 19.38in/493mm(W), 20.2in/514mm(D)
• Nameplate : Standard
• Standard kVA : 11
• Vector Configuration : Dyn1 (-30°)
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=0
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423002572
• Weight : 165
• Certification : CSA, UL
