Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

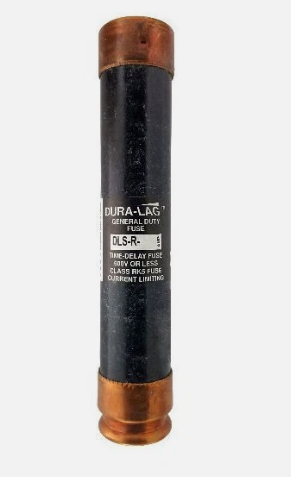

DLS-R-50
DLS-R-50 is a 50A, 600V AC, dual-element, time-delay fuse designed for robust circuit protection in demanding environments.
This Eaton Dura-Lag fuse features a 10-second minimum time-delay at 500% rated current, making it ideal for AC power distribution system mains, feeders, and branch circuits. It is current-limiting, construction grade, and offers high interrupting capacity for enhanced safety and reliability.
-
Key Specifications
- Amperage: 50A
- Voltage: 600V AC (or less), self-certified for 300V DC
- Poles: Not applicable (fuse)
- Mounting Type: Fuse block (see datasheet for compatible blocks)
- Interrupt Rating: 200,000A RMS symmetrical, 20,000A DC
- Series/Frame: Dura-Lag DLS-R
- Trip Unit: Dual-element, time-delay (10 seconds at 500% rated current)
- Certifications: UL Listed (Std. 248-12), CSA Certified (C22.2 No. 248.12), CE compliant
- Class: RK5
- Physical Size: 1.06" x 5.5"
- Application: Recommended for construction and industrial power distribution
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: DLS-R-50
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Dura-Lag
- Type : DLS-R
- Voltage : 600
- Amperage : 50
- AIC rating : 200kA@600V
- Class Rating : RK5
- Barrels : 1
Product Data
- Weight : 5
