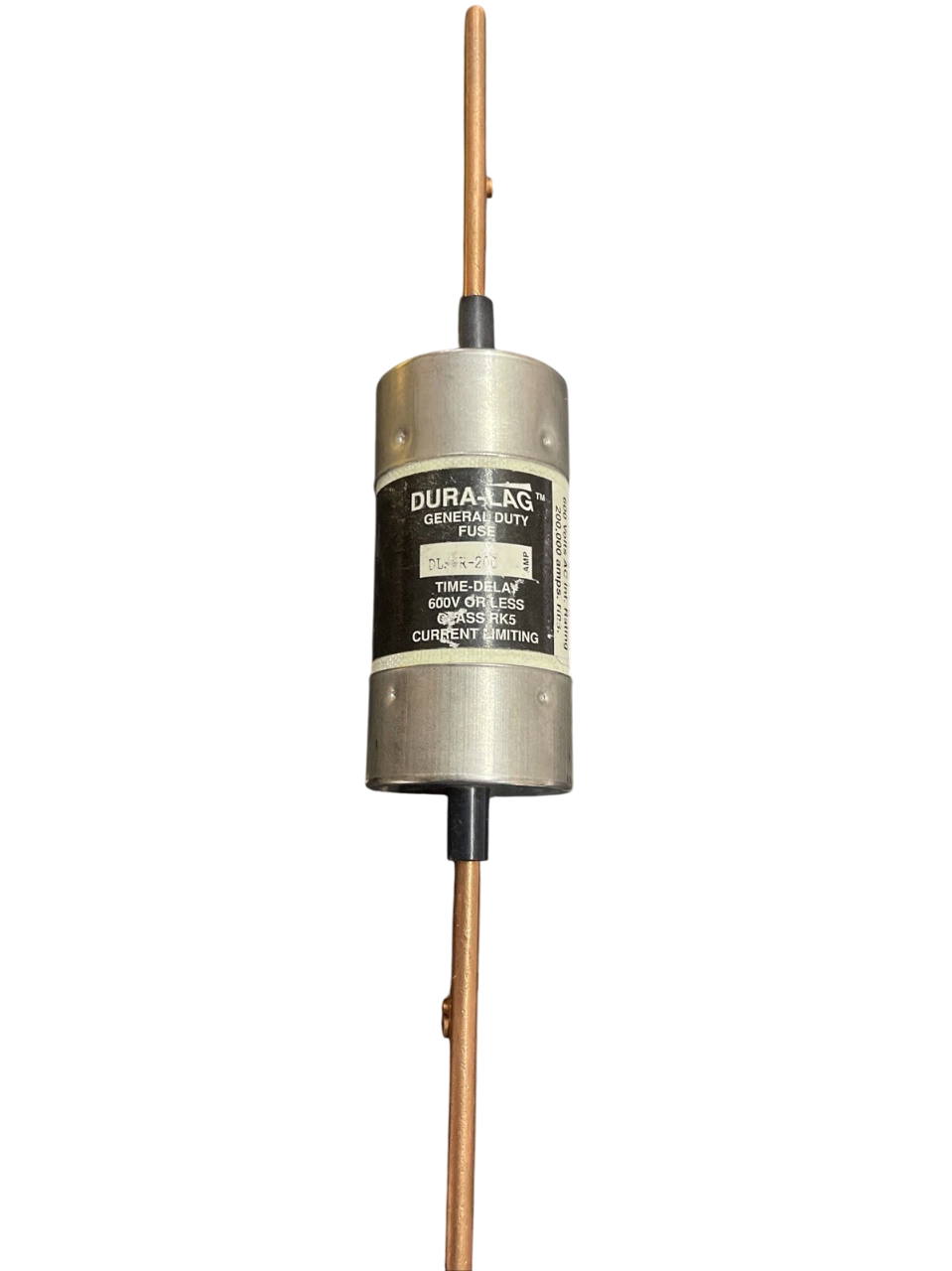

DLS-R-200 - Eaton 200A 600V AC Class RK5 Time-Delay Dual Element Fuse

DLS-R-200

DLS-R-200 is a 200 amp, 600 volt AC Class RK5 time-delay dual element fuse designed for power distribution protection.This Eaton Dura-Lag fuse features a 10 second time-delay at 5 times the rated current, providing reliable current-limiting protection for mains, feeders, and branch circuits. It is UL Listed and CSA Certified with an interrupt rating of 200,000A RMS symmetrical AC and 20,000A DC. The fuse is self-certified for 300V DC and complies with European Low Voltage Directive standards. Its physical size is approximately 1.61 inches in diameter by 9.63 inches in length.

Key Specifications
• Current Rating: 200 Amps
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Time-Delay Dual Element
• Class: RK5
• Interrupt Rating: 200,000A RMS AC, 20,000A DC
• Mounting Type: Cartridge Fuse
• Time Delay: 10 seconds at 5x rated current
• Certifications: UL Listed, CSA Certified, CE Compliant
• Physical Size: 1.61" diameter x 9.63" length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: DLS-R-200
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Dura-Lag
• Voltage : 600
• Amperage : 200
• AIC rating : 200kA@600V
• Class Rating : RK5
• Barrels : 1



Product Data

• Weight : 1
• Certification : UL, CSA
