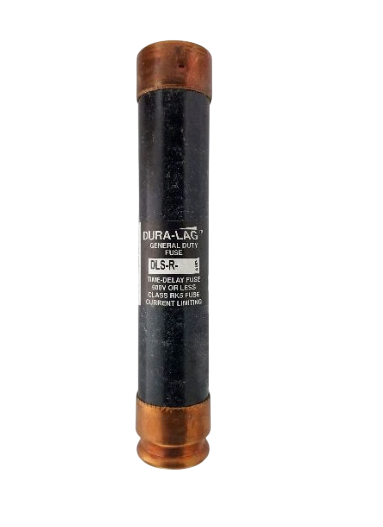

DLS-R-12 - Eaton 12 Amp 600V Time-Delay Dual-Element Fuse Class RK5 UL CSA

DLS-R-12

DLS-R-12 is a 12 Amp, 600 Volt time-delay dual-element fuse designed for AC power distribution system mains, feeders, and branch circuits.DLS-R-12 features a current-limiting, dual-element construction with a 10-second minimum time delay at 500% rated current, providing reliable protection for industrial equipment and large motors. It has an interrupting rating of 200,000A RMS symmetrical at 600VAC and 20,000A DC, and is UL Listed (Std. 248-12, Guide JDDZ, File E4273) and CSA Certified (C22.2 No. 248.12, File 53787). This fuse is self-certified for 300V DC and complies with the European Union Low Voltage Directive.

Key Specifications
• Amperage: 12 Amp
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Time-Delay, Dual-Element
• Interrupting Rating: 200,000A RMS Symmetrical AC, 20,000A DC
• Class: RK5
• Mounting Type: Recommended for Class R fuseblocks
• Time Delay: 10 seconds minimum at 5x rated current
• Certifications: UL Listed, CSA Certified, CE Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DLS-R-12
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Dura-Lag
• Type : DLS-R
• Voltage : 600
• Amperage : 12
• AIC rating : 200kA@600V
• Class Rating : RK5
• Barrels : 1

Product Data

• Weight : 5
